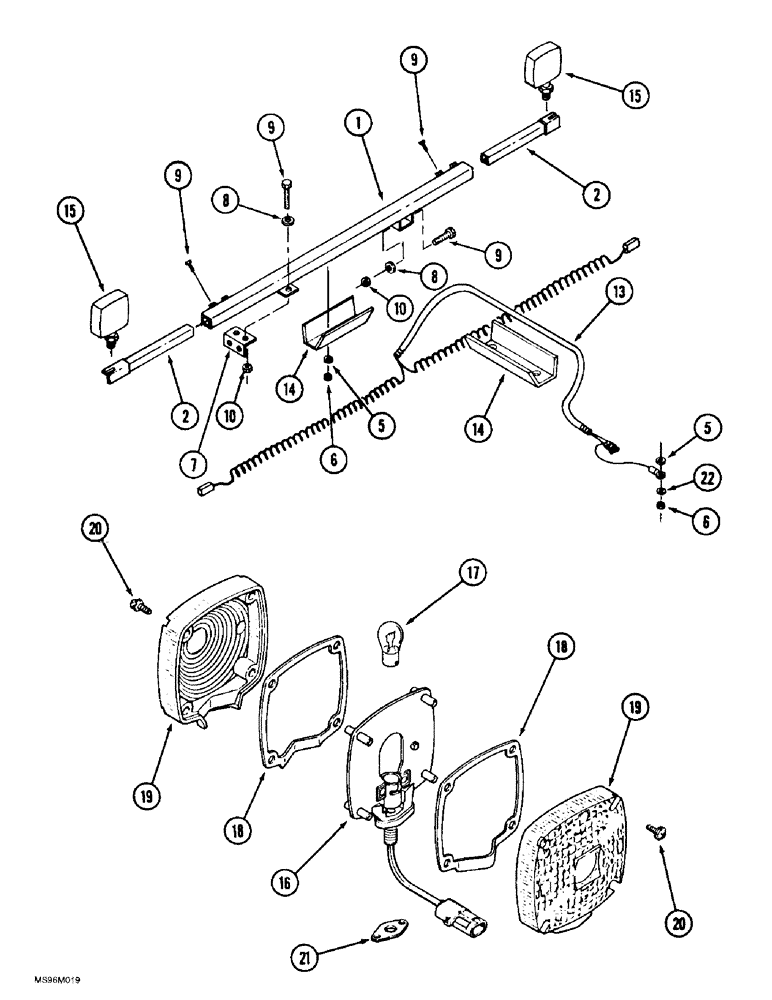

Запчасти Case IH 9350 (4-50) - SIDE MARKER LAMPS (04) - ELECTRICAL SYSTEMS

35-1962T91

LIGHT ASSY.

KIT - lamps, side marker, no longer available, order component parts separately, Includes: Ref. 1 - 22

1шт.

1

70-6817T1

TUBE

- side marker

1шт.

2

70-6767T1

TUBE

- extension, side marker

2шт.

5

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

6

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

5шт.

7

70-6818T1

SUPPORT

ANGLE - support

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

13

60-7038T1

HARNESS

- side marker

1шт.

14

70-6771T1

PROTECTION STRIP

GUARD - wire

2шт.

192052A1

REPAIR KIT

KIT - lamp, warning, Includes: Ref. 15 - 22

1шт.

15

91913C91

LIGHT

LAMP ASSEMBLY - side marker, Includes: Ref. 16 - 20

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

17

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

18

A43731

GASKET

- sealing, lens

2шт.

A44202

KIT

- lens, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

LENS - lamp, amber

1шт.

20

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, round head Phillips, No. 8 NC x 5/8 inch

4шт.

21

F63435

GASKET

- lamp mounting

2шт.

22

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.
