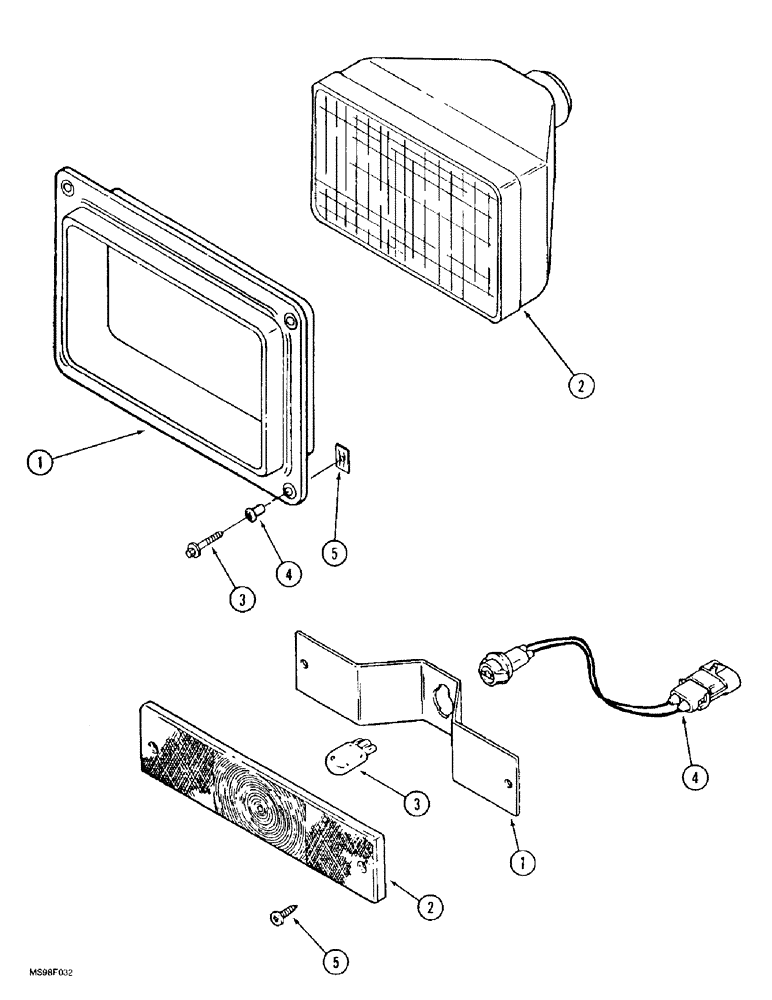

Запчасти Case IH 9350 (4-48) - LAMP ASSEMBLIES (04) - ELECTRICAL SYSTEMS

60-6730T91

HEADLIGHT

LAMP - head, Grille Lamp, with rubber seal, Includes: Ref. 1 and 2

2шт.

1

NSS

NOT SOLD SEPARAT

FRAME - head lamp

1шт.

2

60-6731T1

LAMP

- sealed beam, halogen

1шт.

3

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self-tapping, hex washer head, No. 10 - 16 x 1 inch

8шт.

4

60-6843T1

BUSHING

- brass

8шт.

5

60-7095T1

STEEL SHEET NUT

NUT - clip

8шт.

A186202

LAMP

ASSEMBLY - tail, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - tail lamp

1шт.

2

NSS

NOT SOLD SEPARAT

LENS - tail lamp

1шт.

3

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

1шт.

4

A186201

WIRE HARNESS

HARNESS - includes socket

1шт.

5

260-14416

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW, SELF TAPPING, pan Phillips, No. 8-18 x 1"

4шт.
