Запчасти Case IH 9350 (4-46) - LAMP ASSEMBLIES (04) - ELECTRICAL SYSTEMS

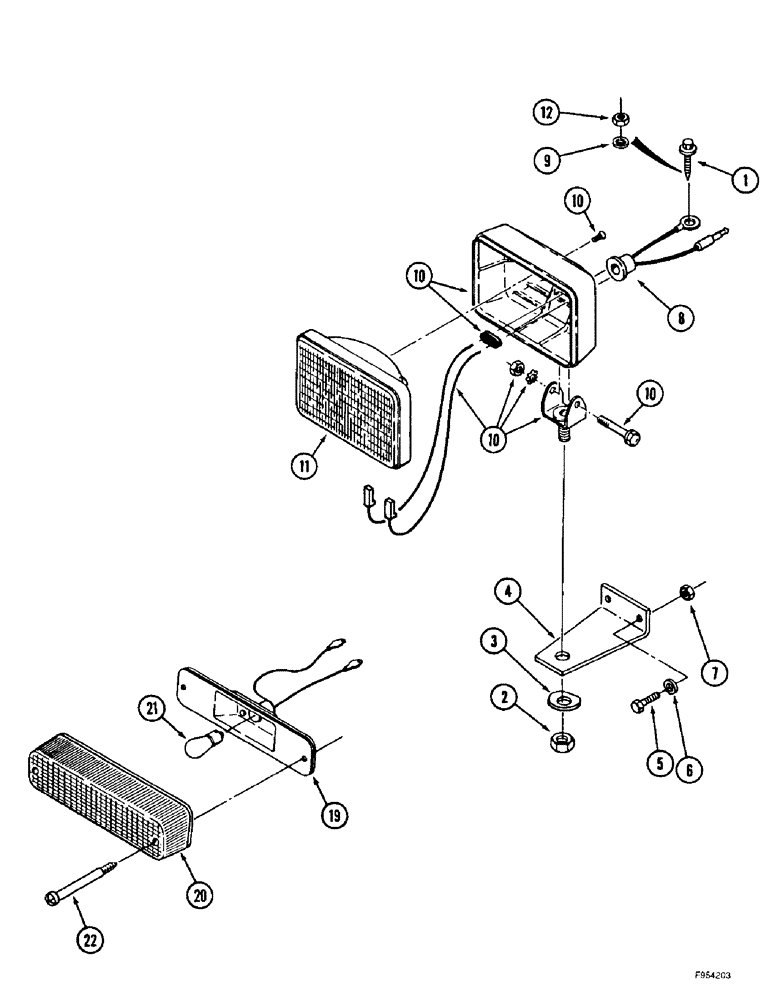

Схема запчастей Case IH 9350 - (4-46) - LAMP ASSEMBLIES (04) - ELECTRICAL SYSTEMS
2
6
10
8
10
21
1
22
12
4
19
9
10
3
5
20
11
10
7

Артикул

Название

Примечание

Количество

1

281-6456

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NF x 3/4 inch, front cab grounding

2шт.

2

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

3

D37049

WASHER

- lock, 1/2 inch

4шт.

4

60-4336T1

SUPPORT

BRACKET - mounting, cab to flood lamp, rear cab mount

2шт.

5

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

7

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

8

87251C1

BUSHING

- includes wires

4шт.

9

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch, rear fender grounding

4шт.

ZAA7189850

HEADLIGHT

LAMP ASSEMBLY - flood, replaces 20-1730T92 lamp, Includes: Ref. 10 and 11

8шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - flood lamp

1шт.

11

20-1822T1

LAMP BASE

LENS - sealed beam

1шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, rear fender grounding

2шт.

22-665T1

LIGHT ASSY.

LAMP ASSEMBLY - warning, Includes: Ref. 19 - 21

4шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - warning lamp

1шт.

20

A187626

LENS

- warning lamp

1шт.

21

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

22

19-1104

SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd

- machine, pan head cross, No. 8 NC x 1-3/4 inch

8шт.

Выбрано товаров: 18
