(4-42) - ALTERNATOR MOUNTING

Запчасти Case IH 9350 (4-42) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

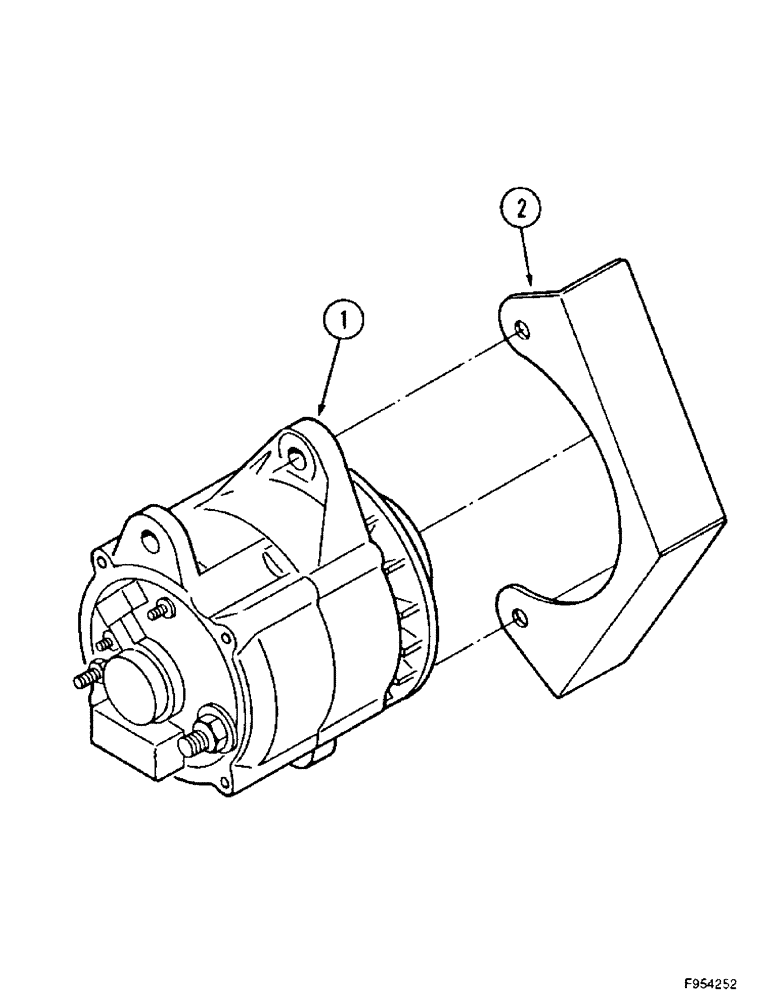

Схема запчастей Case IH 9350 - (4-42) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1987560C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 125 amp, parts list Figure 4-44

1шт.

1

1987560C1GV

ALTERNATOR

Value, 12V, 125A

1шт.

1

1987560C1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 125 ampere

1шт.

1

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

2

70-5828T1

GUARD

SHIELD - alternator

1шт.

All other mounting parts are supplied with the engine.

1шт.

3

90-3650T1

V-BELT,0.14" W x 34.50" L, 5 Ribs

Alternator, not shown

1шт.
