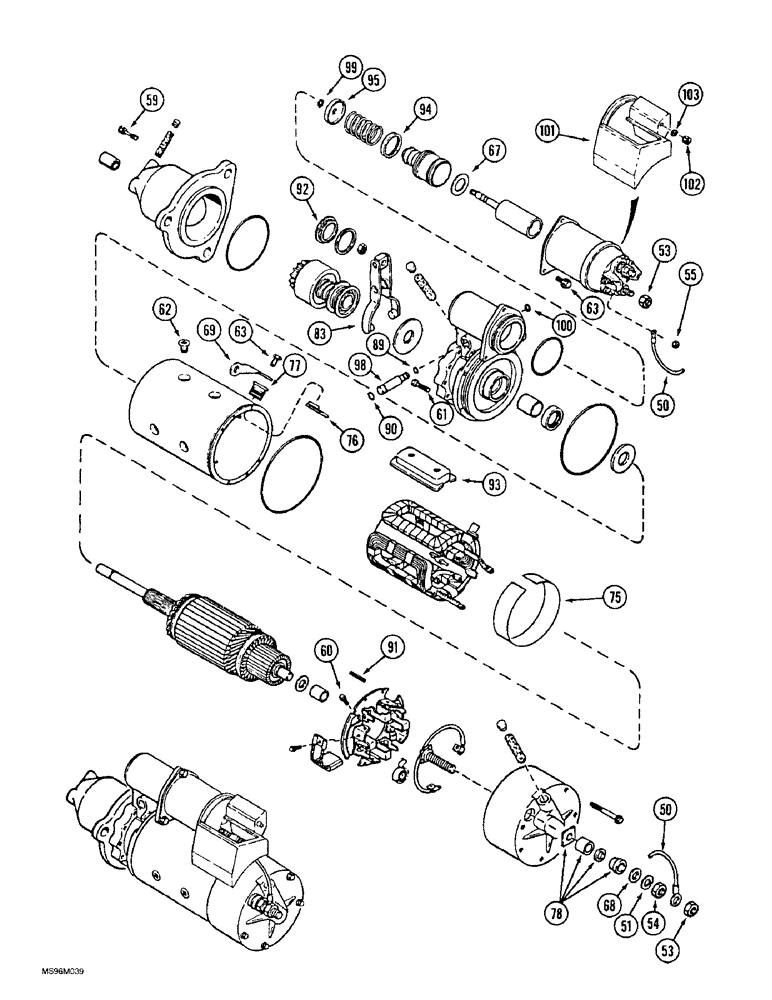

Запчасти Case IH 9350 (4-40) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

140855A2

STARTING MOTOR

KIT - starter, 12 volt, Includes: Ref. 44 - 99 and 1 -43 on Figure 4-38

1шт.

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

107717A1

STARTING MOTOR

STARTER ASSEMBLY - Delco Remy, 12 volt, no longer available, order 140855A2 starter

1шт.

44

A41924

GASKET

GASKET - inspection plug

1шт.

Included in bushing kit A187514.

1шт.

Included in shift lever kit A187515.

1шт.

50

A47895

ELECTRICAL WIRE

WIRE WIRE - field coil, Serial Range: terminal-solenoid

1шт.

51

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

53

A47890

NUT

NUT - flange type, special, 1/2 inch NC

2шт.

54

425-148

JAM NUT,Jam, 1/2"-13, G5

NUT - hex, jam, 1/2 inch NC

1шт.

59

1546551C1

BOLT,Torx Hd, 5/16" - 18 x 0.86"

SCREW - special, drive housing

6шт.

60

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush retainer

2шт.

61

A187741

BOLT,Torx Drive, 1/4" - 28 x 1", T Pt

SCREW - housing retaining

5шт.

62

142955A1

SCREW,Torx Flat Hd, Csk, 3/8" - 24 x 0.735"

SCREW - machine, flat Phillips, 3/8 NF x 21/32 inch

8шт.

63

10497770

BOLT,Torx Hd, 1/4" - 20

BOLT - torx head, special, 1/4 NC x 35/64 inch

4шт.

67

A41922

WASHER

WASHER - plunger seat

1шт.

68

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

WASHER - flat, 33/64 x 7/8 x 1/16 inch

1шт.

69

A49779

TERMINAL CONNECTOR

CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

75

A49767

RUBBER INSULATOR

INSULATOR - field coil terminal

1шт.

76

A49501

RUBBER INSULATOR

INSULATOR - inner, field terminal

1шт.

77

A49500

RUBBER INSULATOR

INSULATOR - outer, field terminal

1шт.

78

A49768

KIT

KIT - insulator, terminal

1шт.

83

A49775

LEVER

LEVER - shift

1шт.

Included in shift lever kit A187515.

1шт.

89

A47259

O-RING,0.244" ID x 0.391" OD

O-RING - shaft, shift lever rod

1шт.

Included in shift lever kit A187515.

1шт.

90

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

O-RING, -012, 70 Duro, .364" ID x .070" Thk, Shift lever rod

1шт.

Included in shift lever kit A187515.

1шт.

91

A49753

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll, spring

1шт.

92

R21587

PLUG

PLUG - inspection, lever housing, inspection

1шт.

93

R15115

SHOE

SHOE - pole, starter

4шт.

94

A43380

BACK-UP RING

SEAT - plunger spring

1шт.

95

A43419

SEAT

SEAT - spring

1шт.

98

A42199

PIN

SHAFT - shift lever

1шт.

Included in shift lever kit A187515.

1шт.

99

100-1137

SNAP RING,#37, Ext

Ring, Snap, , plunger #37, Ext

1шт.

99

100-1137

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

Included in shift lever kit A187515.

1шт.

99

L128826

SHIELD

GUARD - starter terminal

1шт.

99

1546549C1

NUT

NUT - hex flange, special, No. 10 - 32 NF

2шт.

99

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
