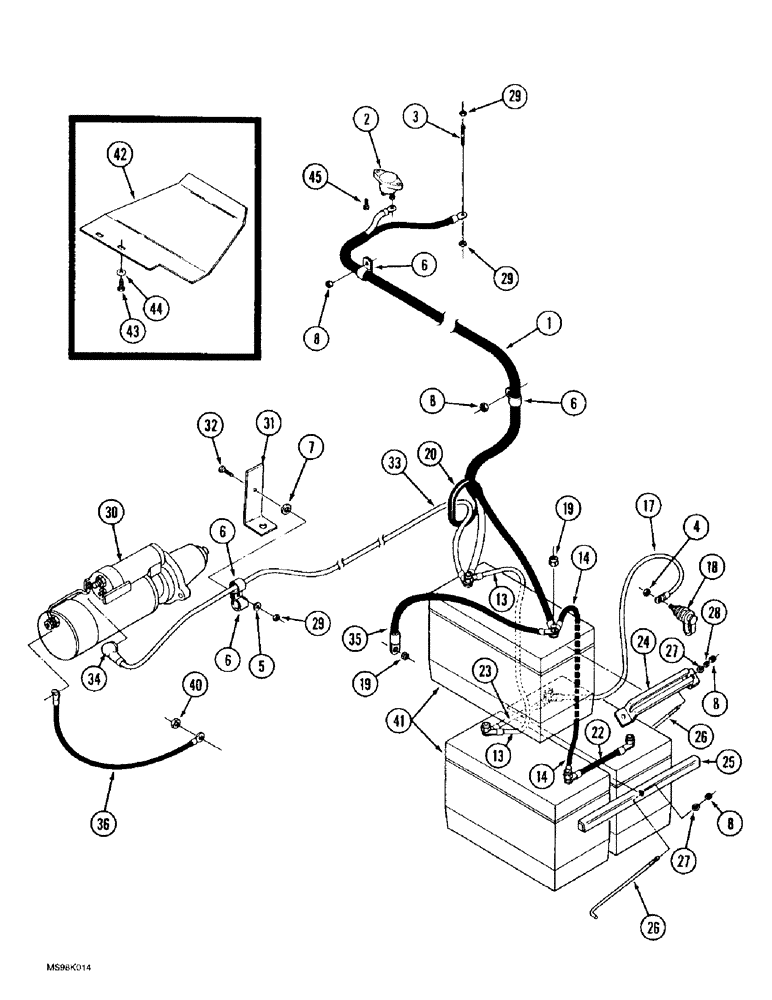

Запчасти Case IH 9350 (4-36) - BATTERIES AND CABLES (04) - ELECTRICAL SYSTEMS

1

20-1972T1

HARNESS

HARNESS - cab power

1шт.

2

20-2041T2

CIRCUIT BREAKER

BREAKER - circuit, electrical

1шт.

3

60-1880T1

STUD

STUD - ground

1шт.

4

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

5

495-21044

WASHER,3/8"

WASHER, (7/16 x 1 x 5/64 inch) 3/8"

2шт.

6

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

CLAMP, , P-type 15/16", Insul, 3/8" Bolt

4шт.

7

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

8

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

5шт.

13

20-2094T2

CABLE

CABLE - battery, jumper, positive

1шт.

14

1-4965

CABLE

CABLE - jumper, negative

1шт.

17

20-2425T1

CABLE

CABLE - jumper, to terminal stud

1шт.

18

1964554C1

TERMINAL

STUD - jump start

1шт.

19

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

6шт.

20

31-2493

HOSE

TRIM - edge, 289 mm (11-7/16 inch) long, cut from 31-1785 bulk trim, see below

1шт.

22

20-1744T1

CABLE

CABLE - battery, jumper, negative

1шт.

23

20-1743T1

CABLE

CABLE - battery, jumper, positive

1шт.

24

70-5525T1

SUPPORT

BRACKET - retaining, battery

1шт.

25

70-5526T1

SUPPORT

BRACKET - angle, battery retaining

1шт.

26

L124224

BOLT

BOLT - special, J-type, battery

3шт.

27

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

29

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

30

140855A2

STARTING MOTOR

KIT - starter, 12 volt, replaces 107717A1 starter, parts list Figures 4-38 and 4-40

1шт.

30

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

30

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

31

70-4739T1

SUPPORT

BRACKET - support, clamp

1шт.

32

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

BOLT, Hex, 1/4"-20 x 1", G8, Full Thd

1шт.

33

20-2347T1

CABLE

CABLE -, Serial Range: battery-starter

1шт.

34

20-2424T1

BOOT

BOOT - cable end

1шт.

35

60-6790T1

CABLE

CABLE - battery, ground, Serial Range: battery-frame

1шт.

36

60-6785T1

CABLE

CABLE - starter, ground, Serial Range: starter-frame

1шт.

40

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

41

BMF31FS

DRY BATTERY

BATTERY - tractor, 12 volt

3шт.

42

60-6867T1

COVER

COVER - cab power supply

1шт.

43

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

BOLT - hex, 1/4 NC x 3/4 inch, grade 8

4шт.

44

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

45

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

31-1785

GROMMET

GROMMET - edge, bulk, 3048 mm (120 inch) long

1шт.
