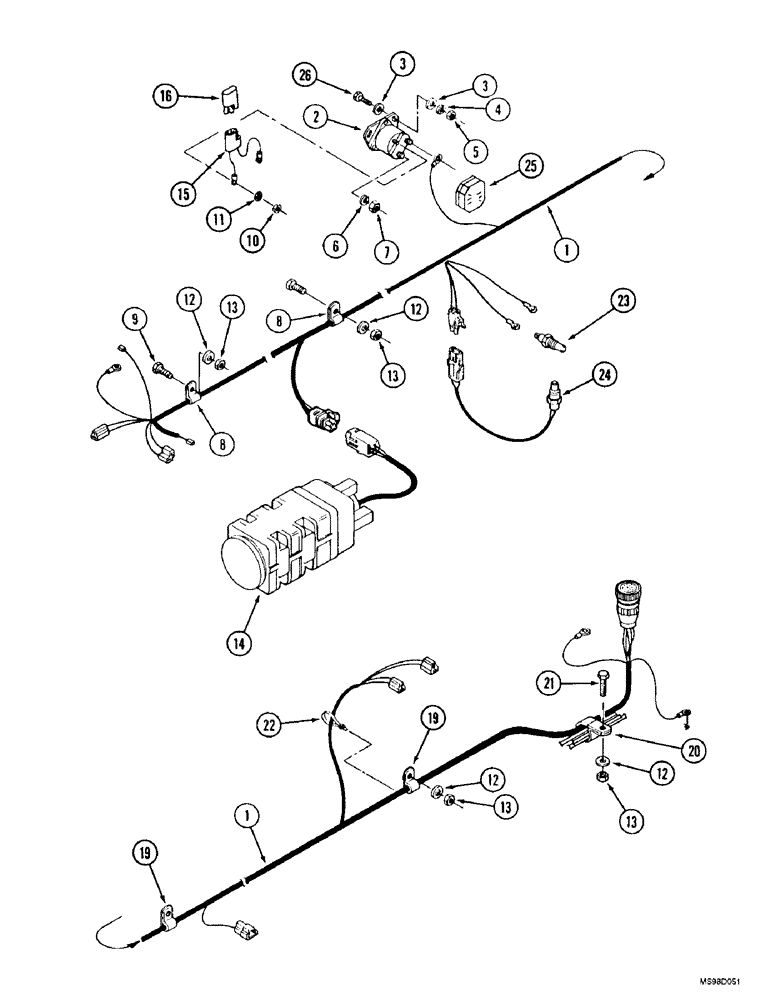

Запчасти Case IH 9350 (4-26) - FRONT FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

60-7076T2

HARNESS

- front frame

1шт.

2

183038A1

SOLENOID

SWITCH - solenoid with cover

1шт.

Part of solenoid switch P/N 178149A1

1шт.

3

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Part of solenoid switch P/N 178149A1

1шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

Part of solenoid switch P/N 178149A1

1шт.

8

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

9

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

10

225-14210

NUT,#10-32

1шт.

Part of solenoid switch P/N 178149A1

1шт.

11

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Part of solenoid switch P/N 178149A1

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

7шт.

13

425-106

NUT,3/8"-16, Cl 5

7шт.

14

228760A1

RADAR

SENSOR - speed, ground, replaces 1983294C1 sensor

1шт.

15

60-7238T1

HARNESS

- diode

1шт.

16

22-738

DIODE

- electrical

1шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

4шт.

20

515-23508

CLAMP,2", Insul, 3/8" Bolt

- P-type, 2 inch ID

1шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

23

60-6935T1

IGNITION SWITCH

SWITCH - temperature, hydraulic

1шт.

24

1964538C1

SWITCH

- temperature, engine coolant

1шт.

25

178148A1

COVER

- solenoid switch

1шт.

Part of solenoid switch P/N 178149A1

1шт.

26

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, Includes: Ref. 2, 6, 7, 10, 11 and 25

1шт.
