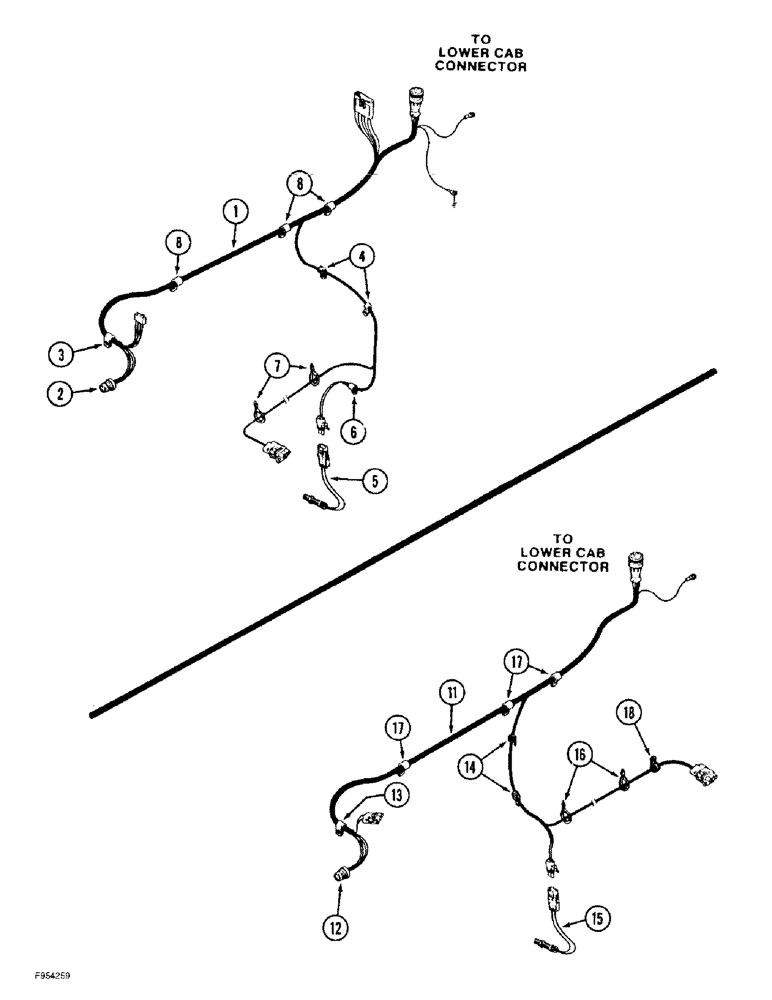

Запчасти Case IH 9350 (4-20) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

60-7170T1

HARNESS

- transmission, Power Shift Tractors

1шт.

2

60-6638T1

PLUG

CONNECTOR - male plug

1шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

5

60-7204T1

SENSOR

- magnetic, MPH, replaces 60-6085T1 sensor

1шт.

6

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

1шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

8

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

3шт.

11

60-7073T1

HARNESS

- transmission, Synchroshift Tractors

1шт.

12

60-6638T1

PLUG

CONNECTOR - male plug

1шт.

13

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

14

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

15

60-7204T1

SENSOR

- magnetic, RPM

1шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

17

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

3шт.

18

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

P-type 1/4", Insul, 1/2" Bolt

1шт.
