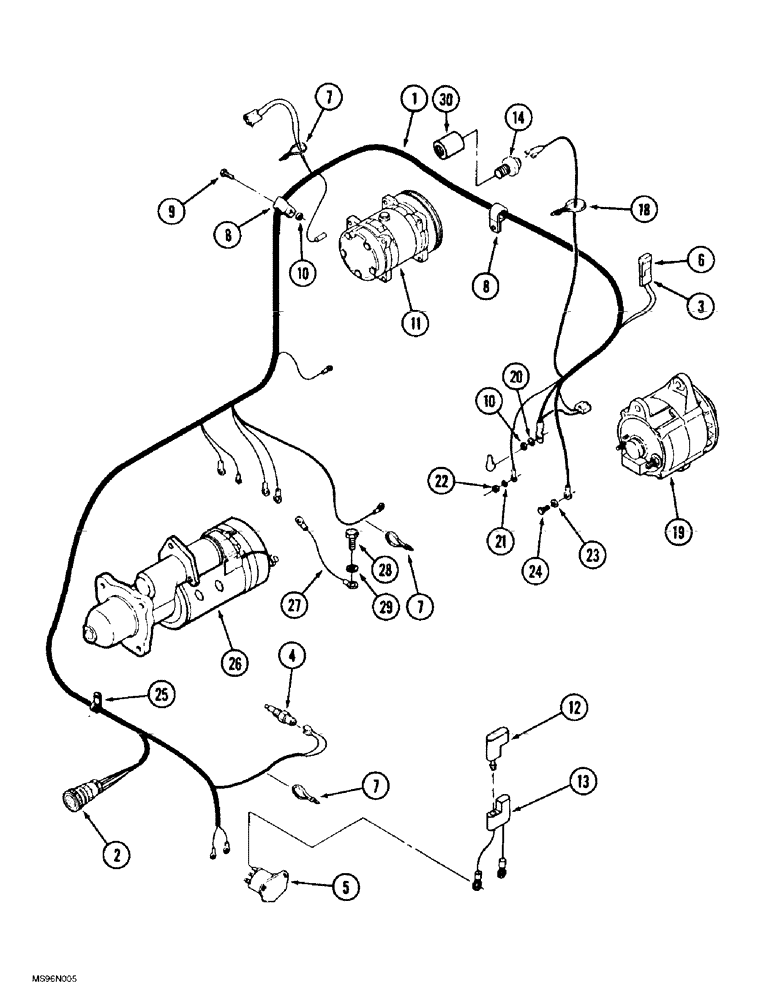

Запчасти Case IH 9350 (4-18) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

60-7165T1

HARNESS

HARNESS ASSEMBLY - engine

1шт.

2

60-6128T2

RING, SNAP

RING SNAP RING - coupling, socket

1шт.

3

60-6639T1

DIODE ELEMENT

RECEPTACLE - diode, alternator connector

1шт.

4

20-1676T2

TEMPERATURE SENDER

SWITCH - temperature, sender

1шт.

5

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, see Figure 4-26 for kit components, replaces A39079 solenoid

1шт.

6

60-6251T1

DIODE

DIODE - electrical

1шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch, long

1шт.

8

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

CLAMP, , P-type 15/16", Insul, 3/8" Bolt

2шт.

9

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - hex, 5/16 NC x 3/4 inch, grade 8

2шт.

10

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

11

1999755C2

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list Figure 9-100

1шт.

11

86993462R

REMAN-COMPRESSOR

9350 (6/95-8/00); Reman For New P/N 1999755C2

1шт.

11

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

11

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor, Receiver-Dryer, Valve Kit

1шт.

11

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

11

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

11

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

12

22-738

DIODE

DIODE - electrical

1шт.

13

60-7238T1

HARNESS

HARNESS - diode

1шт.

14

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

18

50-2037T1

STRAP

STRAP - tie

1шт.

19

1987560C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 125 amp, parts list Figure 4-44

1шт.

19

1987560C1GV

ALTERNATOR

Value

1шт.

19

1987560C1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 125 ampere

1шт.

19

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

20

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

21

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

22

225-14110

NUT,#10-24

NUT, #10-24

1шт.

23

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

1шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT - hex, 1/4 NC x 1/2 inch

1шт.

25

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

CLAMP, 3/8", Insul, 3/8" Bolt

1шт.

26

107717A1

STARTING MOTOR

STARTER ASSEMBLY - Delco Remy, 12 volt, order 140855A2 kit, parts list Figure 4-38 and 4-40

1шт.

Part of starter kit P/N 140855A2

1шт.

27

60-6862T1

CABLE

Ground, engine to starter

1шт.

28

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 20, 8.8, Full Thd

1шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER, (Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

30

217-1100

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

COUPLING - pipe, 1/8 inch

1шт.

140855A2

STARTING MOTOR

KIT - starter, 12 volt, includes Ref. 26 107717A1 starter above and components listed on parts list Figures 4-38 and 4-40

1шт.

140855A3R

REMAN-STARTER,12V

12 volt, 42MT

1шт.

140855A3C

CORE-STARTER,12V

Return Part Number

1шт.
