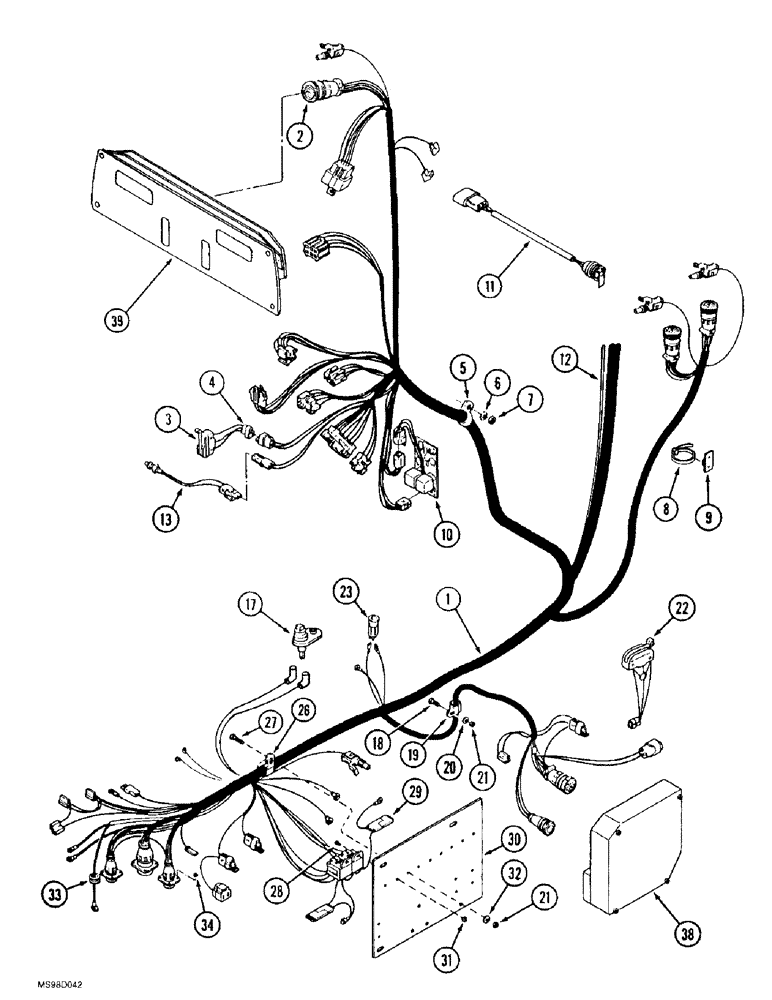

Запчасти Case IH 9350 (4-04) - LOWER CAB HARNESS, POWER SHIFT TRACTOR (04) - ELECTRICAL SYSTEMS

1

60-7059T3

HARNESS

- cab main, Includes: Ref. 2

1шт.

2

60-6128T2

RING, SNAP

RING - coupling, socket

2шт.

20-2340T91

IGNITION SWITCH

SWITCH ASSEMBLY - micro, clutch, Includes: Ref. 3 and 4, no longer available, order component parts separately

1шт.

3

20-2333T1

SWITCH

- micro

1шт.

4

60-2666T1

ELECTRICAL WIRE

WIRE - switch

1шт.

5

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

- P-type, 1-1/16 inch ID

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

9

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

10

20-1954T93

FLASHER UNIT

FLASHER ASSEMBLY - time base, not available as an assembly, order components separately, parts list Figure 4-76

1шт.

10

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-1954T93

1шт.

10

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

11

60-7089T2

HARNESS

- auxiliary power

1шт.

12

60-6807T1

HARNESS

- overhead power, see Figure 4-10 for complete overhead wiring

1шт.

13

60-6027T1

SENSOR

- proximity

1шт.

17

1534229C1

PUSH BUTTON SWITCH

SWITCH - park brake

1шт.

18

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

19

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type, Harness 15/16", Insul, 3/8" Bolt

1шт.

20

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

21

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

22

60-6059T91

IGNITION SWITCH

SWITCH - mode lever

1шт.

23

1964773C1

CIGAR LIGHTER

LIGHTER - cigar, 12 volt

1шт.

26

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Harness 1 1/2", Insul, 3/8" Bolt

1шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

28

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- machine, pan head slotted, No. 10 NF x 1/2 inch

2шт.

29

22-738

DIODE

- electrical

2шт.

30

60-5052T3

LARGE PLATE

PLATE - relay mounting, relay

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

32

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

33

60-6853T1

BUSHING

- rubber

1шт.

34

225-14106

NUT,#6-32

4шт.

38

60-7160T1

CASE

CONTROLLER - transmission, transmission, Serial Range: -JEE0071001

1шт.

38

60-7287T1

CONTROL

LER - transmission, Start Serial: JEE0071001

1шт.

39

60-7162T91

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument, Power Shift, parts list Figure 4-30, Serial Range: -JEE0071001

1шт.

39

60-7284T92

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument, Power Shift, parts list Figure 4-30, Start Serial: JEE0071001

1шт.
