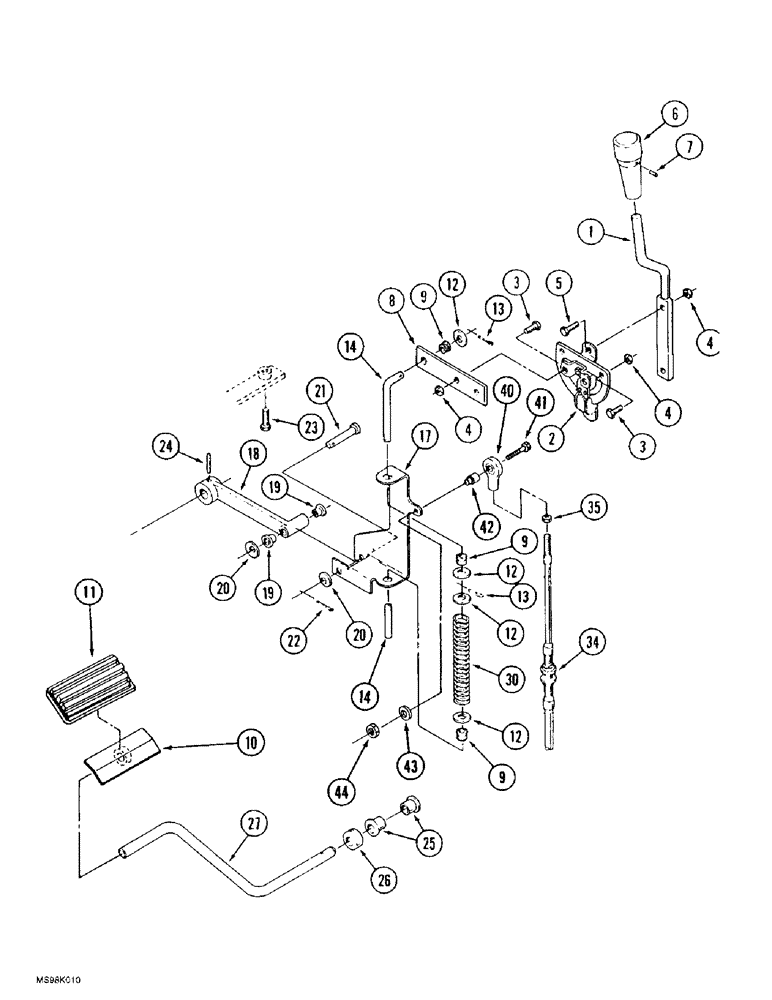

Запчасти Case IH 9350 (3-06) - THROTTLE AND DECELERATOR CONTROLS, CAB MODELS ONLY (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
60-4686T2
CONTROL LEVER
LEVER - throttle control
1шт.
2
60-3783T1
ACTUATOR
BELLCRANK - throttle control
1шт.
3
426-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 8
- hex, 1/4 NC x 3/4 inch, grade 8
4шт.
4
111626C1
NUT
- hex, self-locking, special, 1/4 inch NC
6шт.
5
426-416
BOLT,Hex, 1/4" - 20 x 1", Gr 8
2шт.
6
60-2050T3
BALL KNOB
KNOB - control lever
1шт.
7
19-5798
SET SCREW
SCREW - set, No. 8 NC
1шт.
8
60-3696T1
LINING
LEVER - bellcrank
1шт.
9
19-6113
NYLON BEARING,0.484" ID x 0.578" OD x 0.14"
BUSHING - nylon, split, flanged
3шт.
10
60-7066T1
PEDAL
- decelerator
1шт.
11
1999381C1
RUBBER PAD
PAD - pedal, replaces 1958503C1 pad
1шт.
12
495-21044
WASHER,3/8"
(7/16 x 1 x 5/64 inch) 3/8"
4шт.
13
432-816
COTTER PIN,1/8" x 1"
1/8" x 1"
2шт.
14
60-6278T1
ROD
- actuating
1шт.
17
60-6277T2
SUPPORT
BRACKET - retaining
1шт.
18
60-6276T1
LEVER
- decelerator
1шт.
19
60-1948T1
BUSHING,0.3135" ID x 0.5" OD x 0.312"
- flange
2шт.
20
19-5995
SPRING WASHER
- spring, 5/16 inch
2шт.
21
19-5664
CLEVIS PIN,5/16" x 2"
PIN - clevis, 5/16 x 2 inch
1шт.
23
426-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
1шт.
24
38-11216
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
25
24-206
BEARING CONE,0.5" ID x 0.75" OD x 0.3"
BUSHING - flange
2шт.
26
19-490
COLLAR
- locking
1шт.
27
60-4926T1
STEM
ROD - pedal, decelerator
1шт.
30
60-3702T1
SPRING
- compression
1шт.
34
60-6425T1
CABLE,3048mm L
- throttle, Includes: Ref. 35
1шт.
40
H433283
BALL JOINT
JOINT - ball
1шт.
41
163-55
SCREW,Hex, #10 - 24 x 1 1/4", Gr 5
- machine, hex head, No. 10 NC x 1-1/4 inch
1шт.
42
90-7749T1
SPACER
Joint
1шт.
43
495-31025
WASHER,3/16"
- flat, 1/4 x 9/16 x 3/64 inch
1шт.
44
86625057
NUT,#10-24, GB
NUT, LOCK, #10-24, GB
1шт.
Выбрано товаров: 33
