(9-116) - 60-6723T1 DECALS

Запчасти Case IH 9350 (9-116) - 60-6723T1 DECALS (09) - CHASSIS/ATTACHMENTS

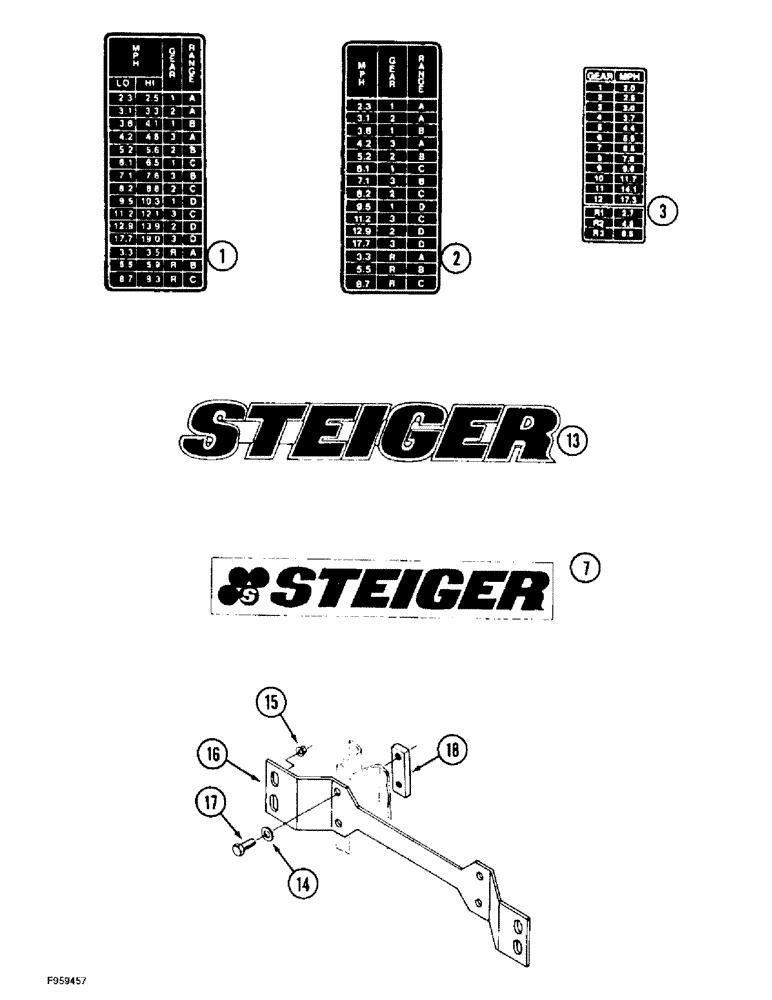

Схема запчастей Case IH 9350 - (9-116) - 60-6723T1 DECALS (09) - CHASSIS/ATTACHMENTS
13
7
16
2
15
1
18
17
3
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-6723T1

DECAL

- MPH, 24 speed SynchroShift

1шт.

2

60-6567T2

DECAL

- MPH, 12 speed SynchroShift

1шт.

3

60-6568T1

DECAL

- gear/mile per hour, Power Shift

1шт.

7

60-7097T1

DECAL

- Steiger

1шт.

13

2-4585T2

TYPE PLATE

EMBLEM - Steiger

1шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

15

9420182

NUT

- U-type, 1/4 inch NC, Push-on grip

4шт.

16

70-6772T1

SUPPORT

BRACKET - emblem

1шт.

17

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

18

70-2230T1

LARGE PLATE

NUT - U-type, 1/4 inch NC

2шт.
