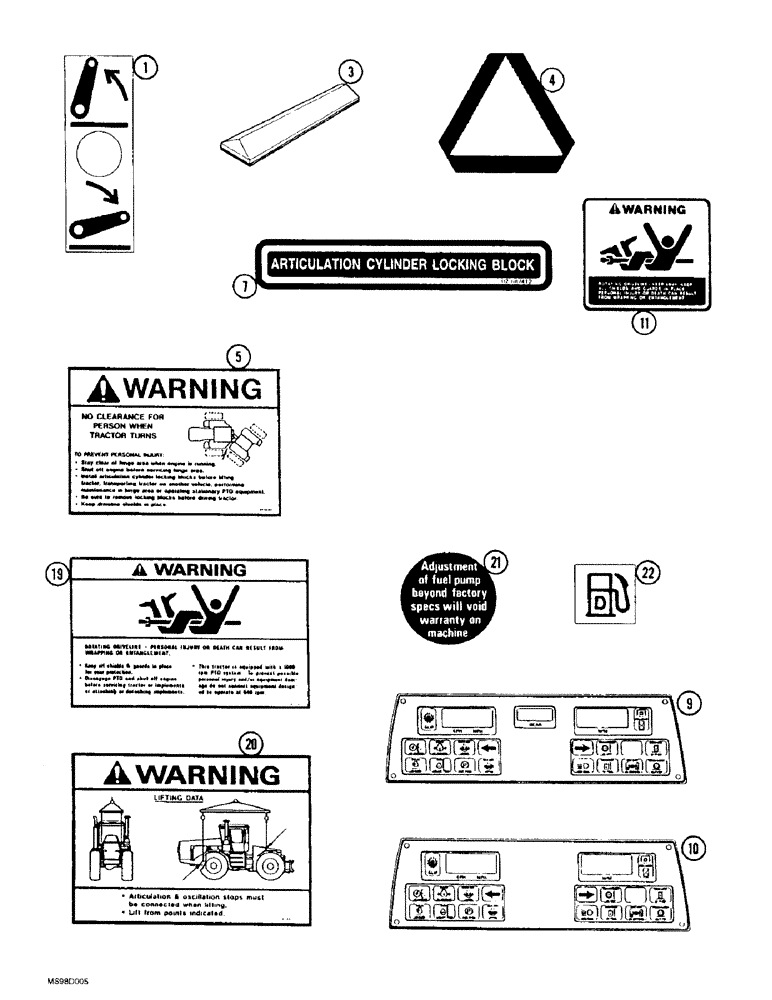

Запчасти Case IH 9350 (9-110) - 60-7036T1 DECALS (09) - CHASSIS/ATTACHMENTS

1

60-7036T1

DECAL

- three point hitch switch

2шт.

3

1968108C2

TRIM

TRIM - hood sight

1шт.

4

321-4311

DECAL

- SMV emblem, adhesive backed, used on plastic surfaces only

1шт.

4

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - SMV emblem, used on painted surfaces only

1шт.

4

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle, metal plate backed, replaces 26-1 decal and replaced by 311860A1 emblem

1шт.

4

311860A1

EMBLEM

- slow moving vehicle, metel plate backed, replaces 202013C2 emblem

1шт.

4a

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8, Not shown

2шт.

4b

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Not shown 1/4", SAE

2шт.

4c

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, not shown

2шт.

5

2-6876T3

DECAL

- Warning, no clearance for person when tractor turns

1шт.

7

2-6874T2

DECAL

- center hinge locking bar

1шт.

9

60-7285T1

DECAL

- instrument cluster, Power Shift

1шт.

10

60-7286T1

DECAL

- instrument cluster, SynchroShift

1шт.

11

2-7126T1

DECAL

- Warning, rotating driveline

2шт.

19

2-7125T2

DECAL

- Warning, rotating driveline

1шт.

20

2-6935T2

DECAL

- Warning, lifting data, replaces 2-7346T1 decal

1шт.

21

A189007

DECAL

- warranty, fuel pump

1шт.

22

139879A1

DECAL

- diesel fuel

1шт.
