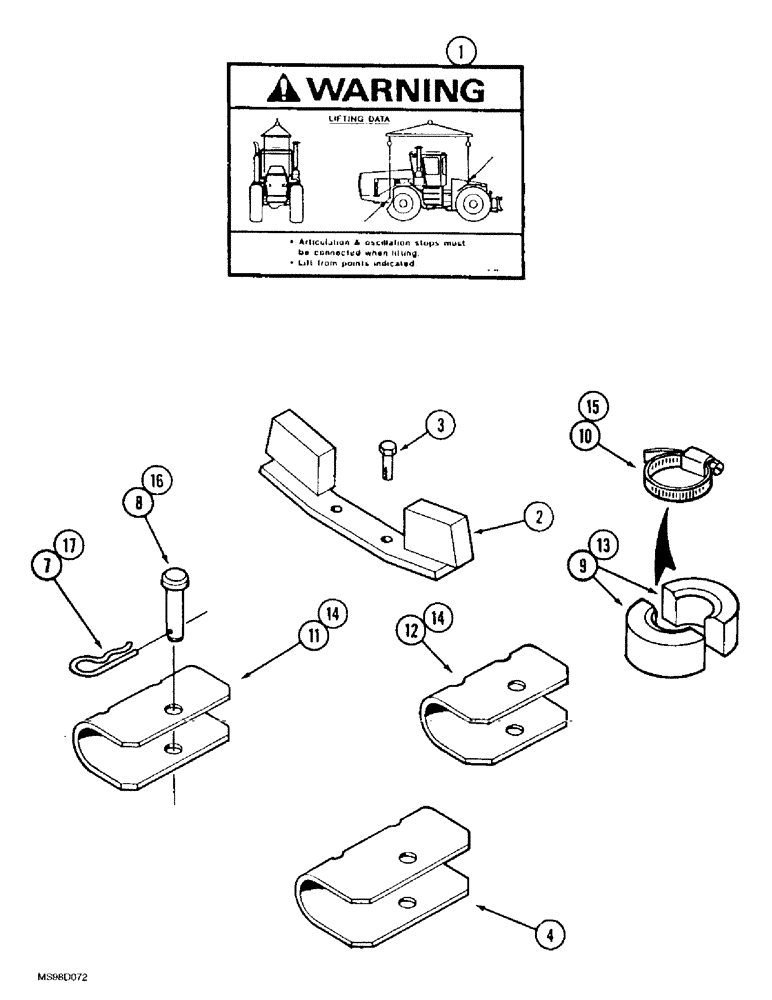

Запчасти Case IH 9350 (9-108) - SHIPPING, LIFTING & ROW CROP SPECIAL ARTICULATION CYL. ACCESSORIES, SHIPPING & LIFTING ACCESSORIES (09) - CHASSIS/ATTACHMENTS

1

2-6935T2

DECAL

- Warning, lifting data, replaces 2-7346T1 decal, Shipping and Lifting Accessories

2шт.

2

70-6386T1

SUPPORT

STOP - oscillation, Shipping and Lifting Accessories

1шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8, Shipping and Lifting Accessories

2шт.

4

70-6280T1

JOINT

BAR - lock, articulation stop, 7-3/4 inch, Shipping and Lifting Accessories

2шт.

7

19-5400

PIN

- hair, 1/8 inch, Shipping and Lifting Accessories

2шт.

8

427-8325

CLEVIS PIN,1/2" x 3 1/4"

PIN - clevis, 1/2 x 3-1/5 inch, hardened, Shipping and Lifting Accessories

2шт.

35-1915T91

PACKAGE

KIT - stop, articulation, Includes: Ref. 9 - 12, no longer available, order component parts separately, Shipping and Lifting Accessories

1шт.

9

50-2976T1

HALF-BUSHING

STOP - articulation, Shipping and Lifting Accessories

8шт.

10

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Shipping and Lifting Accessories #64, 3.56/4.50 Type F Worm

4шт.

11

70-6281T1

JOINT

LOCK - articulation, 7 inch, Shipping and Lifting Accessories

2шт.

12

70-6279T1

JOINT

LOCK - articulation, 6-1/4 inch, Shipping and Lifting Accessories

2шт.

35-1925T91

JOINT

KIT - stop, articulation, Row Crop Cylinder, Includes: Ref. 13 - 15 no longer available, order component parts separately, Row Crop Special Articulation Cylinder Accessories

1шт.

This kit is to be attached to 50-3570T91 articulation cylinders, Figures 5-24 and 5-32, when using wide row dual wheels.

1шт.

13

50-3511T1

HALF-BUSHING

STOP - articulation, Row Crop Special Articulation Cylinder Accessories

4шт.

14

70-6256T1

JOINT

LOCK - articulation, Row Crop Special Articulation Cylinder Accessories

2шт.

15

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Row Crop Special Articulation Cylinder Accessories #64, 3.56/4.50 Type F Worm

2шт.

16

427-8325

CLEVIS PIN,1/2" x 3 1/4"

PIN - clevis, 1/2 x 3-1/5 inch, hardened, Row Crop Special Articulation Cylinder Accessories

2шт.

17

19-5400

PIN

- hair, 1/8 inch, Row Crop Special Articulation Cylinder Accessories

2шт.
