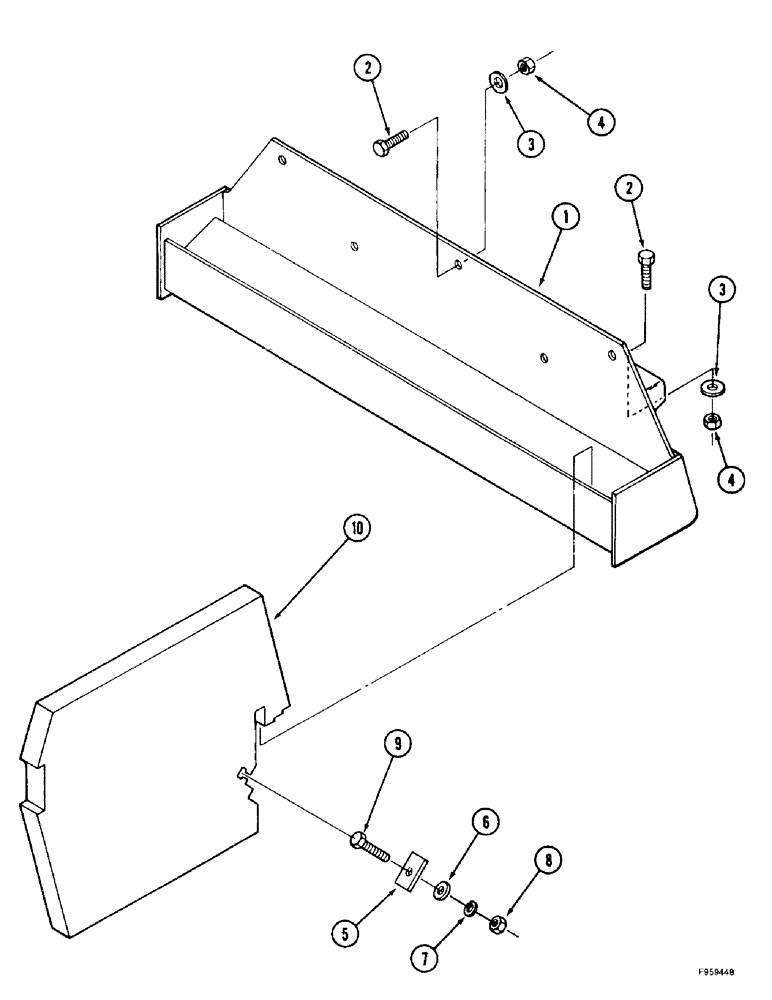

Запчасти Case IH 9350 (9-104) - FRONT WEIGHTS (09) - CHASSIS/ATTACHMENTS

35-1966T91

PACKAGE

KIT - front weights, Includes: Ref. 1 - 10

1шт.

1

70-6634T1

SUPPORT

BRACKET - front weights

1шт.

2

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

6шт.

3

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

16шт.

4

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

6шт.

5

1978431C1

CLAMP

- weights

12шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

12шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

9

A169139

SQUARE BOLT

- square head, special, 1/2 NC x 3-1/4 inch

12шт.

10

1347524C1

WEIGHT

- front, order 1348233C1 or A67894 weight from Machinery Price List, 45.36 kgs, (100 pound)

24шт.
