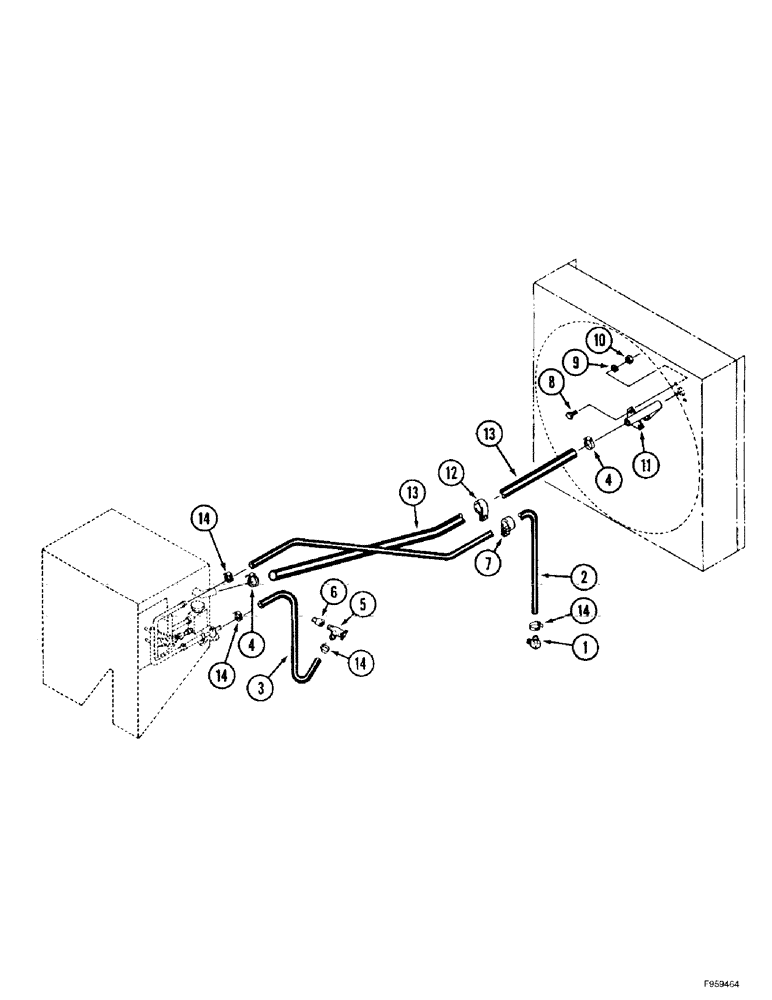

Запчасти Case IH 9350 (9-096) - HEATER LINES (09) - CHASSIS/ATTACHMENTS

1

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 90 degree, 5/8 stem end x 1/2 inch PT

1шт.

2

31-1248

HOSE

- heater, see below

1шт.

3

31-3018

HOSE

.63" ID x 29.00", Heater; Order 86997299, and Cut to Required Length; See Below

1шт.

4

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

5

301803R1

SHUT-OFF VALVE

VALVE - shutoff

1шт.

6

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

7

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type, Retaining 15/16", Insul, 3/8" Bolt

2шт.

8

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

3шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

27254R1

NUT

- hex, 5/16 inch NC, grade 8

4шт.

11

90-6830T1

TUBE,3.69 mm L

- evacuation

1шт.

12

19-135

CABLE TIE

STRAP - tie, nylon, retaining

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE - evacuation, 1 x 56 inch long, cut from 31-1502 bulk hose, see below

1шт.

14

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

4шт.

32-050

HOSE - bulk

1шт.

31-1502

HOSE,1.00", Bulk, SAE 20R3 CLASS D2

1.00", Bulk, SAE 20R3, CLASS D2

1шт.
