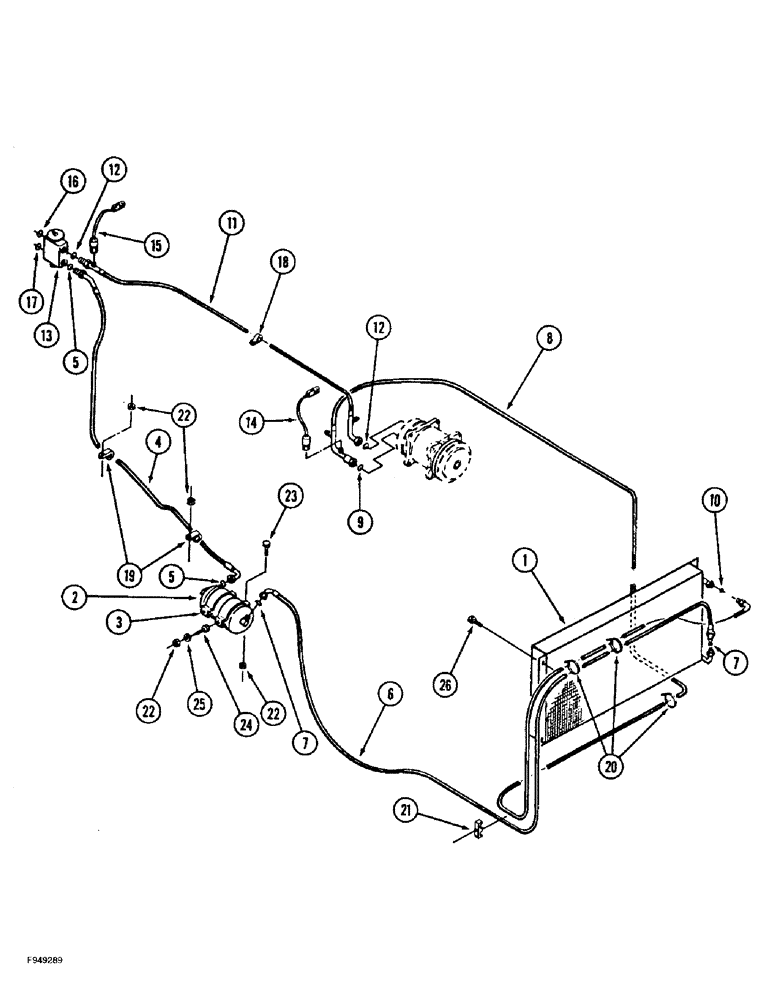

Запчасти Case IH 9350 (9-094) - AIR CONDITI0NER LINES, CONDENSER AND RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS

1

60-6711T1

CONDENSER

- air conditioning

1шт.

2

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

3

70-6589T1

SUPPORT

BRACKET - receiver-drier

2шт.

4

60-6957T1

HOSE

- 2051 mm (80-3/4 inch) long, receiver-drier to thermal expansion valve, Includes: Ref. 5

1шт.

5

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

2шт.

6

60-6960T1

HOSE

- 2311 mm (91 inch) long, condenser to receiver-drier, Includes: Ref. 7

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

2шт.

8

60-6959T1

HOSE

- 2489 mm (98 inch) long, discharge, compressor to condenser, Includes: Ref. 9 and 10

1шт.

9

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

1шт.

10

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 7/16 ID x 1/16 inch wide

1шт.

11

60-6954T1

HOSE

- 2007 mm (79 inch) long, thermal expansion valve to compressor, Includes: Ref. 12

1шт.

12

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

2шт.

13

1990756C2

VALVE

- expansion

1шт.

14

232948A1

SWITCH, A/C HIGH PRE

SWITCH, A/C HIGH PRESSURE, 400 psi, Replaces 1999925C1 switch

1шт.

15

122579A1

SWITCH, A/C LOW PRES

SWITCH - low pressure

1шт.

16

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

1шт.

17

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 7/16 ID x 1/16 inch wide

1шт.

18

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

- P-type, 1-1/16 inch ID

1шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

2шт.

20

19-135

CABLE TIE

STRAP - tie, nylon

3шт.

21

50-2551T1

CLAMP

- hose, split, includes both halves

1шт.

22

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

6шт.

23

426-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, grade 8

3шт.

24

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

3шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

26

426-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch, grade 8

6шт.
