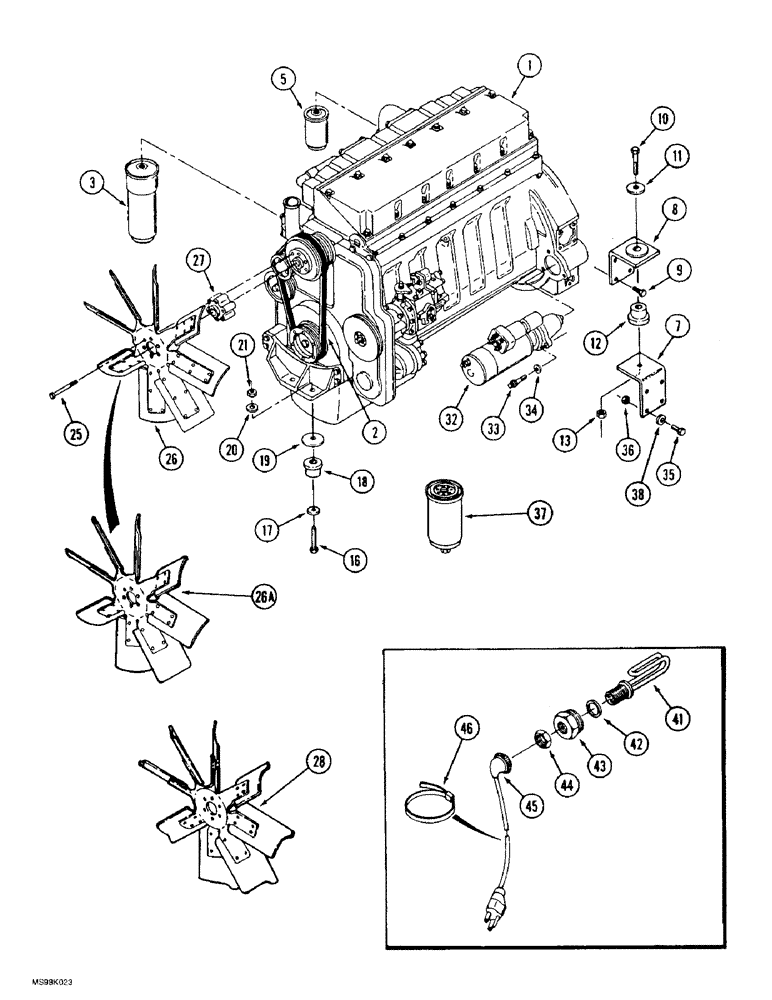

Запчасти Case IH 9350 (2-16) - ENGINE MOUNTING (02) - ENGINE

1

90-7872T1

ENGINE ASSEMBLY - Cummins LTA10-A, with fuel filter mounted on fuel pump, for service parts see your Cummins dealer, prior to P.I.N. JEE0036501, Includes: Ref. 2, 2A, 3

1шт.

1

90-8023T1

ENGINE ASSEMBLY - Cummins MTA11-A, for service parts see your Cummins dealer, Includes: Ref. 2, 2A and 3, Start Serial: JEE0036501

1шт.

2

90-7357T1

V-BELT,0.84" W x 50.50" L, 8 Ribs

Fan

1шт.

2a

90-3650T1

V-BELT,0.14" W x 34.50" L, 5 Ribs

Alternator, not shown

1шт.

3

90-7101T1

FILTER, ENGINE OIL

FILTER, OIL FILTER - engine oil

1шт.

5

A77544

FILTER

FILTER - water conditioning, precharge

1шт.

This filter used on new units or those with low DCA levels. Otherwise use Fleetguard filter number WF2077.

1шт.

7

70-5709T1

SUPPORT

MOUNT - engine, lower

2шт.

8

70-5729T1

SUPPORT

MOUNT - engine, upper

2шт.

9

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

BOLT - hex, 5/8 NC x 1-1/2 inch, grade 8

8шт.

10

426-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

BOLT - hex, 3/4 NC x 4 inch, grade 8

2шт.

11

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

WASHER - flat, special

2шт.

12

47-4172

SHOCK ABSORBER

INSULATOR - mount, rubber, rear

2шт.

13

232-46114

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

2шт.

16

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

BOLT - hex, 5/8 NC x 4-1/2 inch, G8

2шт.

17

19-408

WASHER

WASHER - flat, 5/8 x 2-1/2 x 3/16 inch

2шт.

18

24-231

RUBBER MOUNTING

INSULATOR - engine mount, rubber, front

2шт.

19

51-128

WASHER

WASHER - flat, 5/8 x 3-1/2 x 3/16 inch

2шт.

20

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

WASHER, 21/32" x 1 1/2" x .188", HDN

2шт.

21

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

25

326-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

BOLT, Hex, 3/8"-16 x 3", G8

6шт.

26

90-4672T1

FAN

FAN - engine, Serial Range: -JE0036501

1шт.

26a

90-7727T1

GUARD

FAN - engine, Start Serial: JEE0036501

1шт.

27

90-3638T1

SPACER

SPACER - fan

1шт.

28

90-8450T1

FAN

FAN - flare tip

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

32

140855A2

STARTING MOTOR

KIT - starter, 12 volt, parts list Figure 4-38, replaces 107717A1 starter

1шт.

32

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

32

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

33

80-11032

12 PT SCREW,Flg, 5/8"-11 x 2", Gr 8

BOLT - 12 point flange, 5/8 NC x 2 inch, grade 8

3шт.

33

480-11032

12 PT SCREW,Flg, 5/8"-11 x 2", Gr 8

BOLT - production used since late 1993, either screw is acceptable, but P/N 480-11032 is preferred

3шт.

34

19-912

WASHER

WASHER - flat, 21/32 ID x 1-3/16 OD x 3/16 inch thick

3шт.

35

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

BOLT, Hex, 5/8"-11 x 1 3/4", G8, Full Thd

8шт.

36

425-1010

NUT,5/8"-11, G5

NUT, 5/8"-11, G5

8шт.

37

90-3941T1

SEPARATOR

FILTER - fuel

1шт.

38

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

WASHER - flat, 21/32 x 1-5/16 x 5/32 inch, hardened

8шт.

90-3648T91

GLOW PLUG

HEATER ASSEMBLY - coolant, engine block, Includes: Ref. 41 - 45

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

42

NSS

NOT SOLD SEPARAT

GASKET - heater

1шт.

43

NSS

NOT SOLD SEPARAT

FITTING - heater

1шт.

44

NSS

NOT SOLD SEPARAT

NUT - heater

1шт.

45

90-3491T1

CABLE

CABLE - heater

1шт.

46

19-135

CABLE TIE

CABLE STRAP STRAP - tie, nylon

1шт.

35-2017T91

PACKAGE

KIT flare tip fan, used on models, Includes Ref. 28 above and Ref. 7 on Fig. 2-02 and Ref. 35, 36 and 38 - 52 on Fig. 2-04, Start Serial: JEE0036501

1шт.
