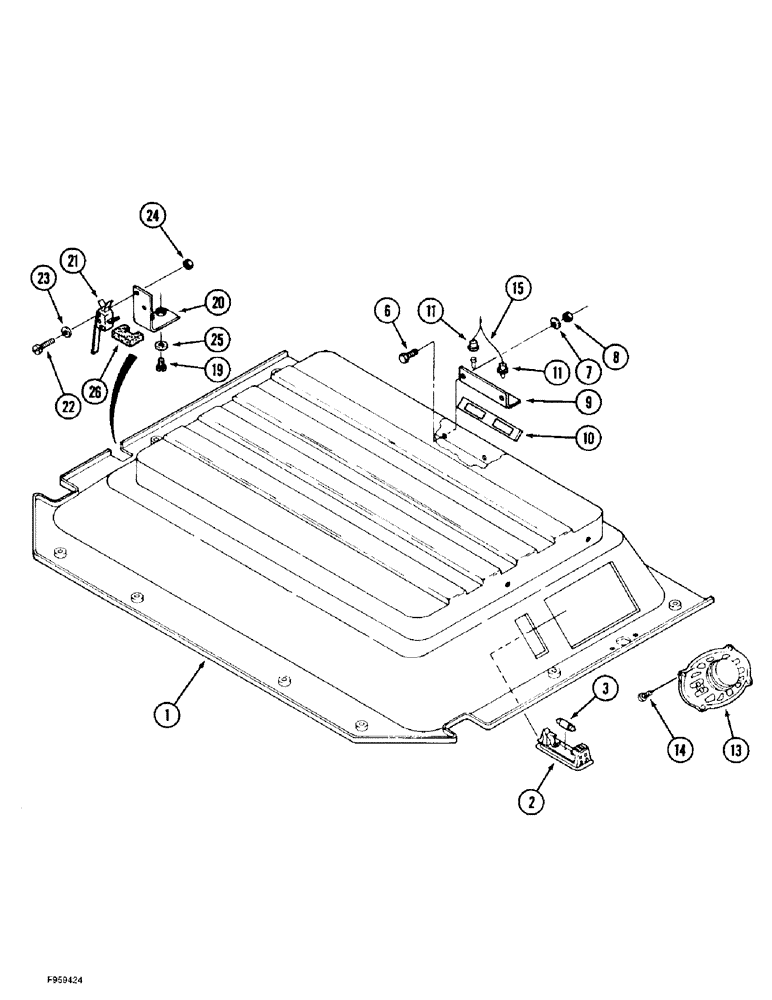

Запчасти Case IH 9350 (9-082) - CAB HEADLINER (09) - CHASSIS/ATTACHMENTS

1

60-6254T4

ROOF

HEADLINER - cab

1шт.

2

1983391C1

LAMP,12V, 10W

- dome

1шт.

3

E35556

BULB,12V, 10W

- Lamp 12V, 10W

1шт.

6

163-45

SCREW,Hex, #10 - 24 x 1/2", Gr 5

- machine, hex head, No. 10 NC x 1/2 inch

2шт.

7

495-31022

WASHER,#10

2шт.

8

225-14110

NUT,#10-24

2шт.

9

60-6299T1

ANGLE BAR

PLATE - mounting, lamp

1шт.

10

60-4029T1

LARGE PLATE

PLATE - diffuse, lamp

1шт.

11

B50213

BULB

- lamp, No. 53

2шт.

13

60-5748T1

SPEAKER

- radio

2шт.

14

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan Phillips, No. 10 NC x 5/8 inch

8шт.

15

60-6807T1

HARNESS

- overhead power, see page 4-11 for complete overhead wiring

1шт.

19

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

20

60-6518T1

SUPPORT

BRACKET - mounting, switch

1шт.

21

60-6515T1

SWITCH

- lamp, door

1шт.

22

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

- machine, round head, No. 4 NC x 1 inch

2шт.

23

495-31016

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch

2шт.

24

225-14104

NUT,#4-40

2шт.

25

495-31022

WASHER,#10

2шт.

26

60-6579T1

FOAM

SEAL - switch

1шт.
