Запчасти Case IH 9350 (9-076) - ROPS CONTROL CONSOLE, SYNCHROSHIFT TRACTOR (09) - CHASSIS/ATTACHMENTS

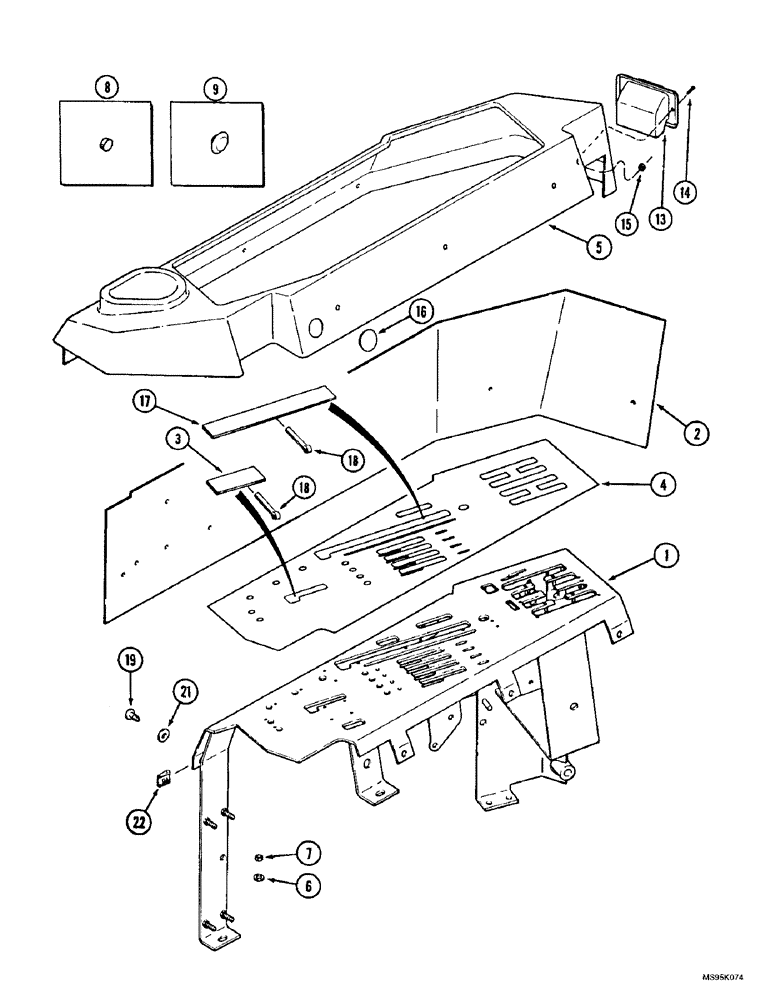

Схема запчастей Case IH 9350 - (9-076) - ROPS CONTROL CONSOLE, SYNCHROSHIFT TRACTOR (09) - CHASSIS/ATTACHMENTS
17
13
3
19
4
6
14
18
21
16
8
15
9
18
7
1
22
5
2

Артикул

Название

Примечание

Количество

1

60-6982T2

PANEL

- control console

1шт.

2

60-6386T1

PANEL

- console, wraparound

1шт.

3

60-7055T1

BLANK-OFF PLUG

PLUG - slot

1шт.

4

60-7065T1

DECAL

- control console

1шт.

5

60-6436T1

COVER

- console

1шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

5шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

5шт.

8

64-146

PLUG

- hole, access

1шт.

9

60-4258T1

PLUG

- hole, flow control access

1шт.

13

2-6138T91

ASH TRAY

ASHTRAY - smokers

1шт.

14

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

- machine, flat head slotted, No. 8 NC x 5/8 inch

2шт.

15

131-29

LOCK NUT,#8-32, GB

NUT - hex, self-locking, No. 8 NC

2шт.

16

22-619

GROMMET

- plug hole

1шт.

17

60-7054T1

BLANK-OFF PLUG

PLUG - slot

1шт.

18

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

19

19-6136

STUD

- quarter turn

11шт.

21

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

7шт.

22

A36042

CLIP

RETAINER - quarter turn

11шт.

Выбрано товаров: 18
