Запчасти Case IH 9350 (9-070) - CAB CONTROL CONSOLE, POWER SHIFT TRACTOR (09) - CHASSIS/ATTACHMENTS

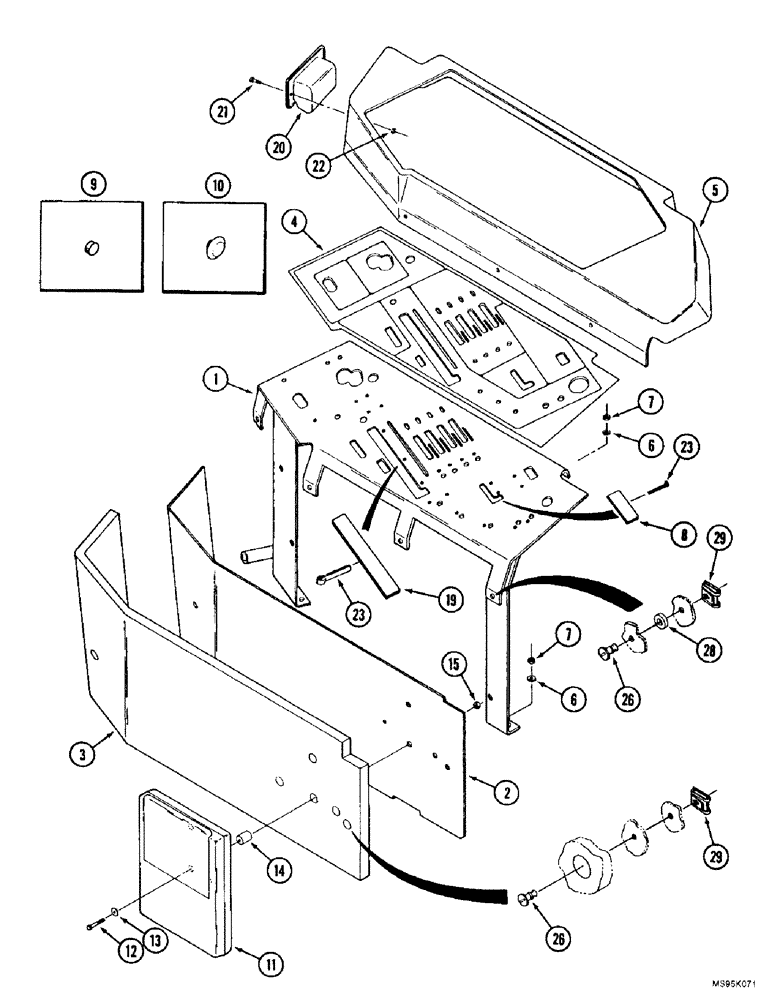

Схема запчастей Case IH 9350 - (9-070) - CAB CONTROL CONSOLE, POWER SHIFT TRACTOR (09) - CHASSIS/ATTACHMENTS
11
2
1
28
12
26
15
3
7
7
8
29
6
14
9
6
23
29
23
5
19
4
20
10
22
26
21
13

Артикул

Название

Примечание

Количество

1

60-6979T2

PANEL

- control

1шт.

2

60-6106T1

SHIELD

PANEL - console wraparound

1шт.

3

60-6063T1

COVER

- console panel

1шт.

4

60-6416T1

DECAL

- control console

1шт.

5

60-6436T1

COVER

- console

1шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

5шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

5шт.

8

60-7055T1

BLANK-OFF PLUG

PLUG - slot

1шт.

9

64-146

PLUG

- hole, access

1шт.

10

60-4258T1

PLUG

- hole, flow control access

1шт.

11

97079C3

BOX

- operators manual, replaces 97079C2 box

1шт.

12

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8, used without deluxe storage compartment

3шт.

12

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

Used with deluxe storage compartment Hex, 1/4"-20 x 1", G8, Full Thd

3шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

6шт.

14

60-6062T1

SPACER

- manual box, used without deluxe storage compartment

3шт.

14

2-3010T1

SPACER

- manual box, used with deluxe storage compartment

3шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

19

60-7054T1

BLANK-OFF PLUG

PLUG - slot

1шт.

20

2-6138T91

ASH TRAY

ASHTRAY - smokers

1шт.

21

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

- machine, flat head slotted, No. 8 NC x 5/8 inch

2шт.

22

131-29

LOCK NUT,#8-32, GB

NUT - hex, self-locking, No. 8 NC

2шт.

23

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

5шт.

26

19-6136

STUD

- quarter turn

11шт.

28

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

11шт.

29

A36042

CLIP

RETAINER - quarter turn

11шт.

Выбрано товаров: 25
