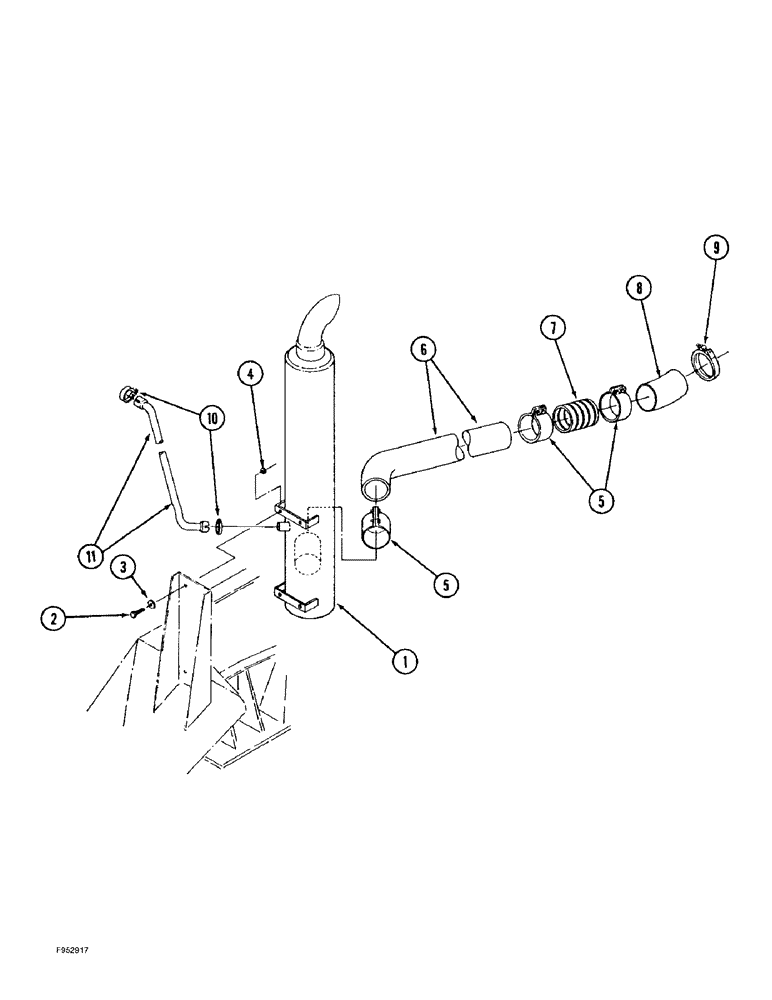

Запчасти Case IH 9350 (2-14) - EXHAUST SYSTEM (02) - ENGINE

1

90-8165T1

MUFFLER,Aspirated

- exhaust

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

3

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

4

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

5

90-8319T1

CLAMP

- sleeve-type, includes hardware, exhaust, replaces 90-7635T1 clamp

3шт.

6

90-7665T1

EXHAUST SYSTEM PIPE,4" OD

TUBE - exhaust

1шт.

7

90-5858T1

TUBE,4" ID x 4.25" OD x 9" L

- flex, exhaust

1шт.

8

90-7659T1

EXHAUST SYSTEM PIPE,4" OD x 9.09" L

TUBE - exhaust, flex tube to turbocharger

1шт.

9

90-3606T1

CLAMP,120.65mm

CLAMP - tube retaining

1шт.

10

31-2434T1

CLAMP

- adjustable, tube

2шт.

11

90-7666T1

TUBE,1.5" OD

- aspirator

1шт.
