Запчасти Case IH 9350 (9-068) - INSTRUMENT PANEL, ROPS (09) - CHASSIS/ATTACHMENTS

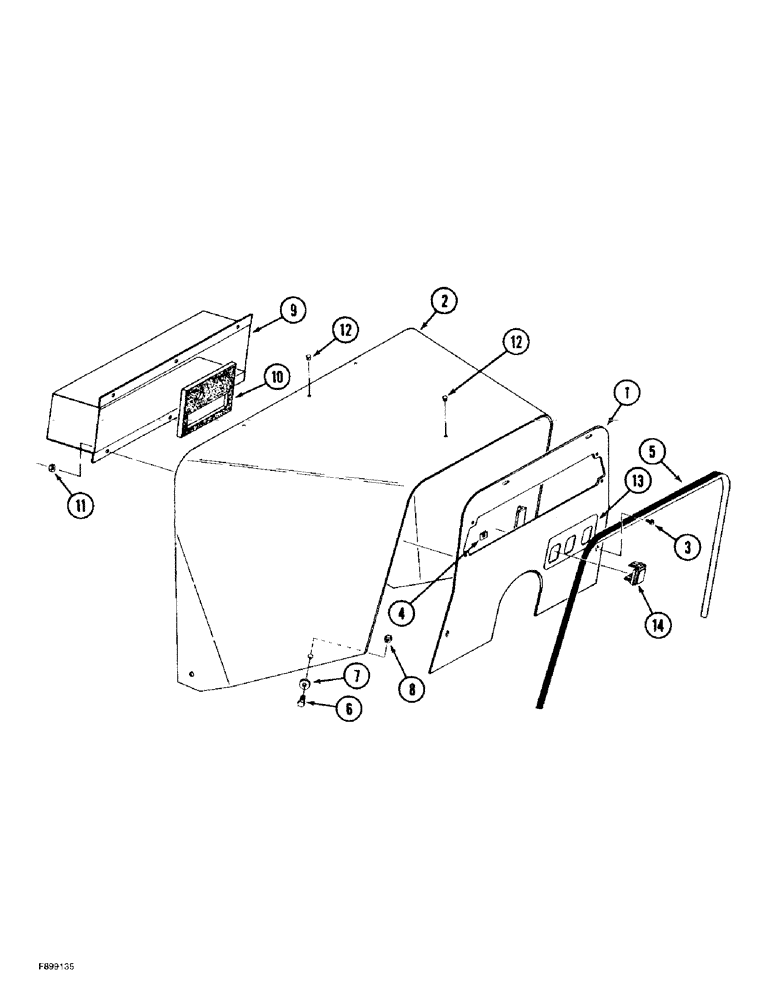

Схема запчастей Case IH 9350 - (9-068) - INSTRUMENT PANEL, ROPS (09) - CHASSIS/ATTACHMENTS
11
10
4
6
12
9
5
12
2
8
3
1
13
14
7

Артикул

Название

Примечание

Количество

1

60-5832T1

PANEL

PLATE - dash mounting

1шт.

2

60-5834T1

PANEL

COVER - dash wraparound

1шт.

3

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

6шт.

4

19-6119

STEEL SHEET NUT

NUT - clip, U-type, No. 10 NC

6шт.

5

60-5859T1

GASKET

TRIM - edge, 1194 mm (47 inch) long, cut from F64277X bulk trim, see below

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

8

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

9

60-5836T1

COVER

- rear instrument panel

1шт.

10

60-5828T1

SEAL

SEAL - foam

1шт.

11

111626C1

NUT

- hex, self-locking, special, 1/4 inch NC

6шт.

12

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch, replaces 60-4582T1 plug

2шт.

13

60-5980T1

DECAL

- master lamps, ROPS

1шт.

14

245334C1

PLUG

- panel switch cover, replaces 60-3210T1 plug

2шт.

F64277X

SEAL

TRIM - edge, bulk, 14478 mm (570 inch) long

1шт.

Выбрано товаров: 15
