Запчасти Case IH 9350 (9-064) - VINYL SEAT ASSEMBLY, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

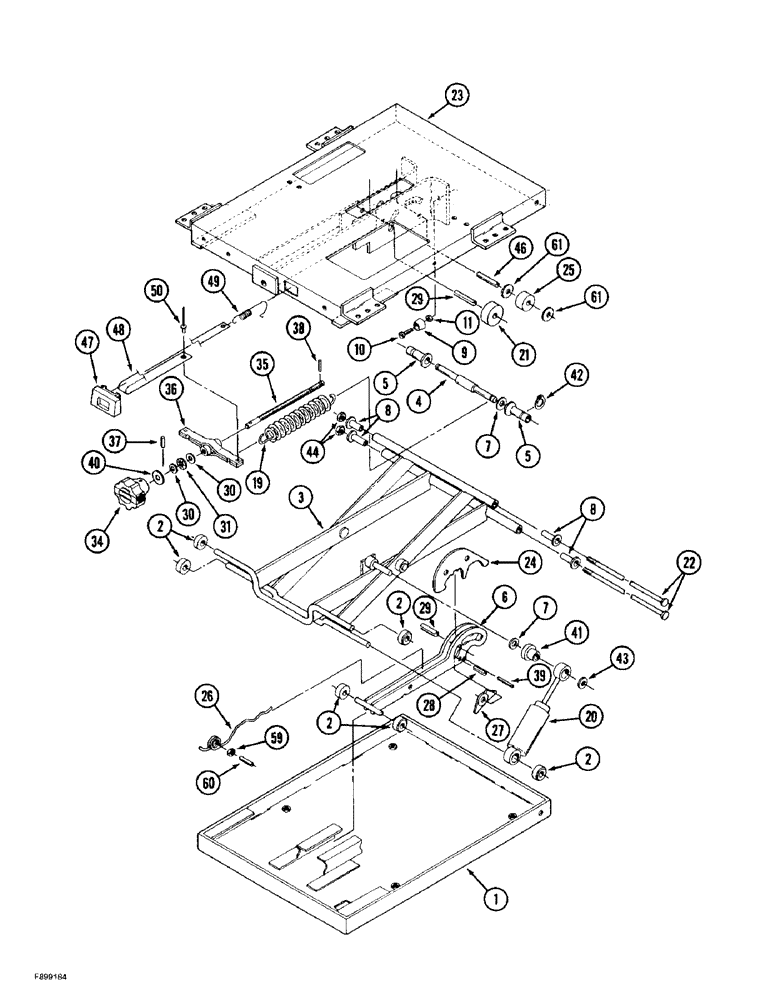

Схема запчастей Case IH 9350 - (9-064) - VINYL SEAT ASSEMBLY, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS
30
61
34
61
7
10
6
49
40
5
25
1
47
37
7
11
28
2
20
60
44
3
2
41
4
27
24
26
8
8
23
30
31
5
29
2
50
48
46
21
19
39
22
42
43
9
38
2
35
36
59
29

Артикул

Название

Примечание

Количество

1987174C2

SEAT ASSY.

SEAT ASSEMBLY - mechanical, with vinyl upholstery, parts list Figures 9-60 - 9-64, continued, Includes: Ref. 1 - 61

1шт.

241190A1

PACKAGE

KIT - suspension, mechanical seat, replaces 1981819C2 kit, Includes: Ref. 1 - 61

1шт.

Suspension kit also includes bellows and clips.

1шт.

1

1981787C1

CASE

HOUSING - lower

1шт.

2

1344249C1

KIT

KIT - roller tube and bearing

6шт.

3

1981789C1

DIPPER

ARM - suspension

1шт.

4

128115A1

SHAFT

- spring

1шт.

5

123968A2

PACKAGE

KIT - weight adjustment spring, replaces 1981791C1 bushing

2шт.

6

1981792C1

ARM

- mounting

1шт.

7

A45519

WASHER

- flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch, order A45110 spacer and A45116 spacer

5шт.

8

A47760

BUSHING

TUBE - bearing

4шт.

9

1981793C1

BUMPER

- seat

2шт.

10

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan Phillips, No. 10 NC x 5/8 inch

2шт.

11

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 NC

2шт.

123968A2

PACKAGE

KIT - weight adjustment spring, replaces 1981794C1 spring, Includes: Ref. 19 and 19A

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - extention

2шт.

19a

NSS

NOT SOLD SEPARAT

BUSHING - spring, not shown

2шт.

20

1344250C2

KIT

- shock absorber

1шт.

21

123967A1

PACKAGE

KIT - cam follower

1шт.

22

A49529

SHAFT

- bushing tube

2шт.

23

241192A1

HOUSING

- upper, replaces 1981821C1 housing

1шт.

24

1981798C1

CAM

- low profile

1шт.

25

123967A1

PACKAGE

KIT - cam follower, replaces 1981799C1 bearing

1шт.

26

123966A1

PACKAGE

KIT - height adjustment

1шт.

27

119001A1

ARMREST ASSY.

ARM ASSEMBLY - cam

1шт.

28

138-110

LOCK PIN,7/32" x 3/4", Slotted

PIN, LOCK, 7/32" x 3/4", Slotted

1шт.

29

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

2шт.

30

1987116C2

PACKAGE

KIT - weight adjuster, replaces 1981802C1 race

2шт.

31

F13537

THRUST BEARING

BEARING - thrust

1шт.

123969A1

SEAT ACCESSORY

Kit - Knob and shaft assy, Incl Ref 34 & 35

1шт.

34

NSS

NOT SOLD SEPARAT

KNOB - weight adjustment

1шт.

35

NSS

NOT SOLD SEPARAT

SHAFT - weight adjusting

1шт.

36

1987116C2

PACKAGE

KIT - weight adjuster

1шт.

37

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

38

38-11010

LOCK PIN,5/32" x 5/8", Slotted

Pin, 5/32" x 5/8", Slotted

1шт.

39

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

40

1974732C1

WASHER

- flat, 25/64 x 1-1/8 x 1/8 inch

1шт.

41

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

42

A49623

RING, SNAP

RING - retaining

2шт.

43

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

44

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

46

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

47

1981807C1

GUIDE

- weight adjustment

1шт.

1999901C2

PACKAGE

KIT - weight adjusting guide, Includes: Ref. 48 and 49

1шт.

48

NSS

NOT SOLD SEPARAT

TAPE - adjustment, weight

1шт.

49

NSS

NOT SOLD SEPARAT

SPRING - suspension, weight

1шт.

50

151-537

RIVET,Pop, 1/8" x .650"

- break mandrel, 1/8 x 21/32 inch

1шт.

59

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

1шт.

60

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

61

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.
