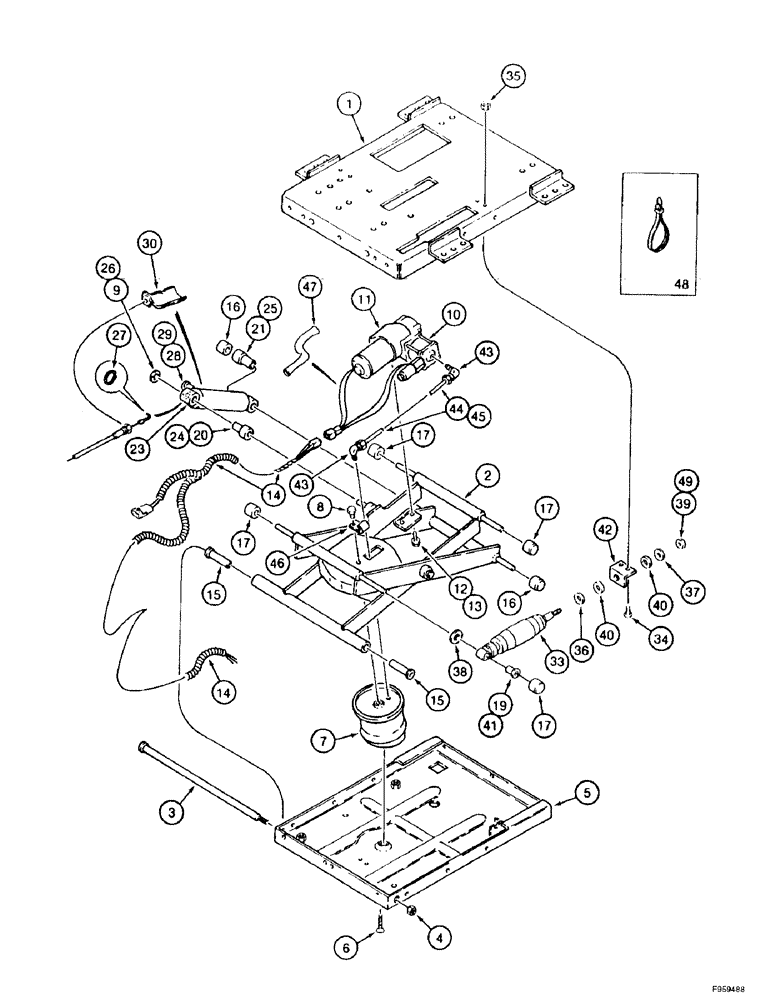

Запчасти Case IH 9350 (9-054) - DELUXE AIR SUSPENSION SEAT, SUSPENSION, (CONT) (09) - CHASSIS/ATTACHMENTS

144845A2

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaced by 144845A3 seat, parts list Figures 9-46 - 9-56, continued, Includes: Ref. 36 - 49 and 1 - 35 on Fig. 9-52

1шт.

144845A3

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaces 144845A2 seat, parts list Figures 9-46 - 9-56, continued, Includes: Ref. 36 - 49 and 1 - 35 on Fig. 9-52

1шт.

132861A3

SUPPORT ASSY.

KIT - suspension, additional parts on parts list Figures 9-48 - 9-56, Includes: Ref. 36 - 41

1шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

38

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

39

230-4715

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF

1шт.

40

A49679

BUSHING

- rubber

2шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - fore/aft shock

1шт.

42

1981845C1

ANGLE

- mounting, shock

1шт.

132871A1

SET OF PARTS

KIT - fitting, Includes: Ref. 43 - 46

1шт.

43

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, compression

2шт.

44

NSS

NOT SOLD SEPARAT

TUBE - nylon

1шт.

45

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

46

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

47

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

49

230-4715

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF

1шт.
