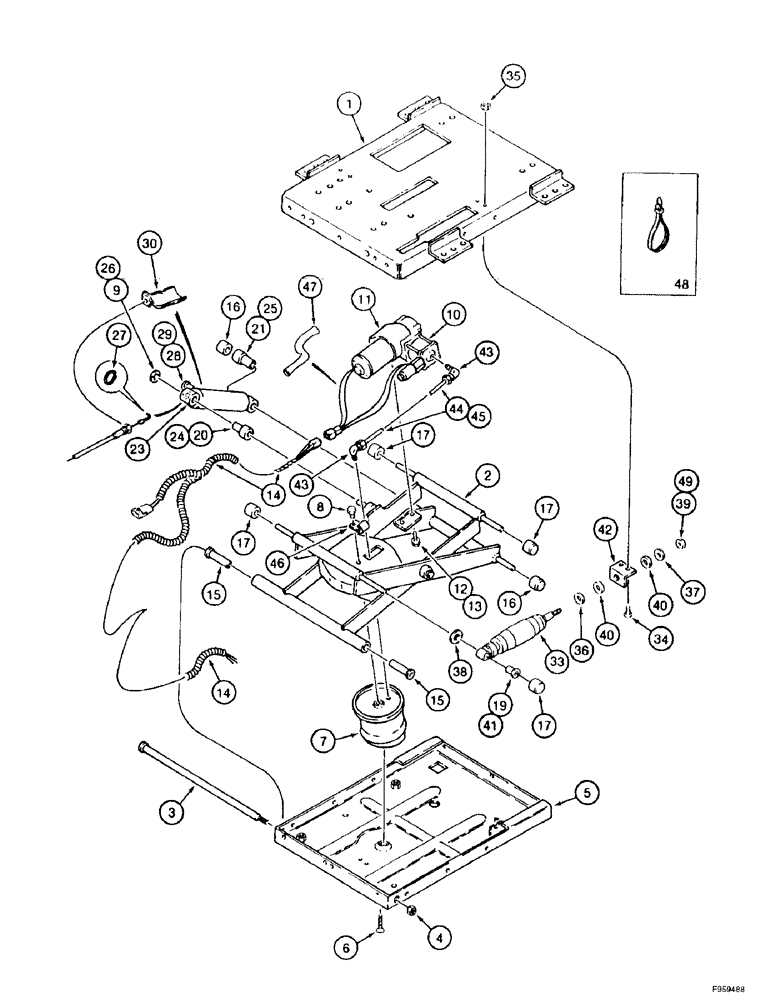

Запчасти Case IH 9350 (9-052) - DELUXE AIR SUSPENSION SEAT, SUSPENSION (09) - CHASSIS/ATTACHMENTS

144845A2

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaced by 144845A3 seat, parts list Figures 9-46 - 9-56, continued, Includes: Ref. 1 - 35 and 36 - 49 on Fig. 9-54

1шт.

144845A3

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaces 144845A2 seat, parts list Figures 9-46 - 9-56, continued, Includes: Ref. 1 - 35 and 36 - 49 on Fig. 9-54

1шт.

132861A3

SUPPORT ASSY.

KIT - suspension, additional parts on parts list Figures 9-48 - 9-56

1шт.

1

1990642C1

HOUSING

- upper, suspension, Includes: Ref. 2 - 12

1шт.

2

132862A1

DIPPER

ARM - suspension

1шт.

3

A49529

SHAFT

- bushing tube

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

5

1981834C1

HOUSING

- lower

1шт.

6

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat Phillips, 3/8 NC x 3/4"

1шт.

7

197793A1

SPRING

KIT - air spring, includes air spring, J-clip and (3) tie straps, replaces 1981842C1 kit

1шт.

NSS

NOT SOLD SEPARAT

SPRING - air

1шт.

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

9

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

132864A1

KIT

- compressor/valve, includes: Ref. 10 - 12, compressor, valve, mount, air line tubing, (2) screws, (2) sleeves and (2) nuts

1шт.

10

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - compressor mounting

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

14

132867A1

HARNESS

- wire

1шт.

180594A2

BEARING ASSY

KIT - rollers and bearings, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - shaft

2шт.

16

NSS

NOT SOLD SEPARAT

ROLLAR - suspension

2шт.

17

NSS

NOT SOLD SEPARAT

ROLLAR - bearing

4шт.

18

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, not shown, see Ref. 7 on Figure 9-70 for bearing

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - latch bar, not used, not shown

1шт.

132866A1

SHOCK ABSORBER

KIT - shock absorber, includes: Ref. 22 - 30, shock, (2) bearings, fastener, actuator arm, roll pin, bracket and retaining ring, suspension

1шт.

23

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

26

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

27

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

28

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

29

NSS

NOT SOLD SEPARAT

ARM - actuator

1шт.

30

144514A1

SUPPORT

BRACKET - cable control

1шт.

227546A1

KIT

- shock, fore/aft, Replaces 1990646C3, Includes: Ref. 33 - 41

1шт.

33

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

34

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

35

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.
