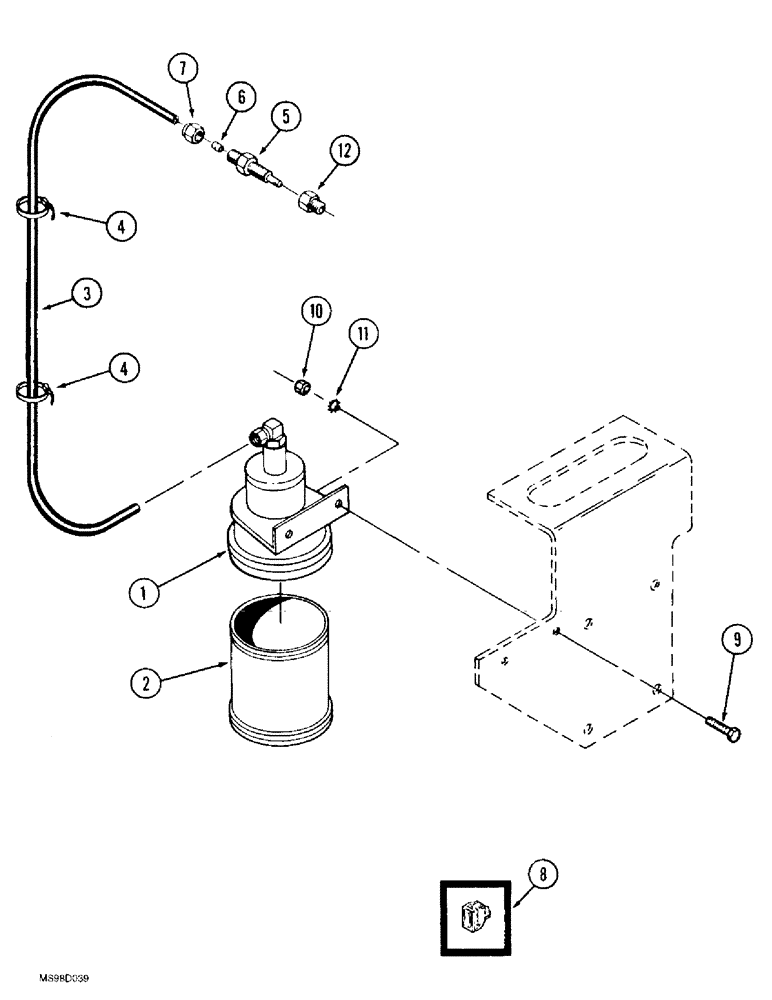

Запчасти Case IH 9350 (2-12) - ETHER STARTING SYSTEM (02) - ENGINE

185552A2

SOLENOID

ASSEMBLY - ether injection, replaces A143381 solenoid, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SOLENOID - ether injection

1шт.

2

190752A1

HOUSING

- ether injection solenoid

1шт.

3

31-1861

TUBE,0.073" ID, 48" Length

- 1219 mm (48 inch) long, cut from 29-53T2 bulk tube, see below

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

5

90-7034T1

PACKAGE

INJECTOR ASSEMBLY - nozzle, Includes: Ref. 6 and 7

1шт.

6

222-650

SLEEVE,1/8" Tube, Comp

- tapered, 1/8 inch tube OD

1шт.

7

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

8

1964751C1

SWITCH

- rocker, located in cab

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

12

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

29-53T2

HOSE

TUBE - bulk, 3 (1/8) OD x 3048 mm (120 inch) long

1шт.
