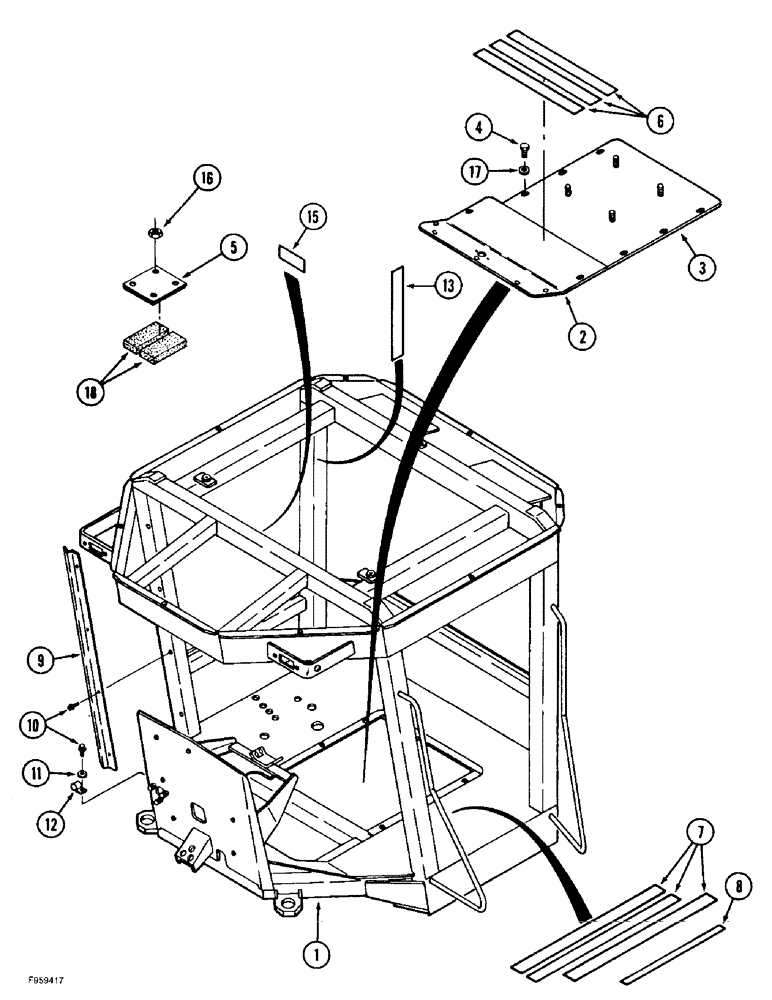

Запчасти Case IH 9350 (9-042) - ROPS FLOOR PLATES (09) - CHASSIS/ATTACHMENTS

1

60-7087T1

FRAME

- ROPS, protective, parts list Figure 9-34

1шт.

2

60-6342T2

LARGE PLATE

PLATE - floor access, front

1шт.

3

60-6307T1

COVER

PLATE - floor access, rear

1шт.

4

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

13шт.

5

60-4653T1

LARGE PLATE

PLATE - TPH

1шт.

6

NSS

NOT SOLD SEPARAT

STRIP - non skid, 50.8 (2) x 635 mm (25 inch) long, cut from 26-211 bulk strip, see below

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP - non skid, 50.8 (2) x 965.2 mm (38 inch) long, cut from 26-211 bulk strip, see below

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - non skid, 25.4 (1) x 635 mm (25 inch) long, cut from 60-4598T1 bulk strip, see below

1шт.

9

60-5855T1

GUARD

- wire, ROPS post

1шт.

10

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

6шт.

11

495-31022

WASHER,#10

2шт.

12

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Wire harness 1 1/2", Insul, 3/8" Bolt

2шт.

13

60-6468T2

DECAL

- Warning, avoid injury or death

1шт.

15

60-5866T1

DECAL

- Caution, when operating this vehicle use hearing protection

1шт.

16

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

13шт.

18

60-4650T1

FOAM

SEAL - foam, 102 mm (4 inch) long, cut from 60-4596T1 bulk seal, see below

1шт.

26-211

ADHESIVE STRIP

STRIP - non-skid, bulk, 51 (2) x 3048 mm (120 inch) long

1шт.

60-4598T1

BAND

STRIP - non-skid, bulk, 15240 mm (600 inch) long

1шт.

60-4596T1

SEAL

SEAL - foam, bulk, 3048 mm (120 inch) long

1шт.
