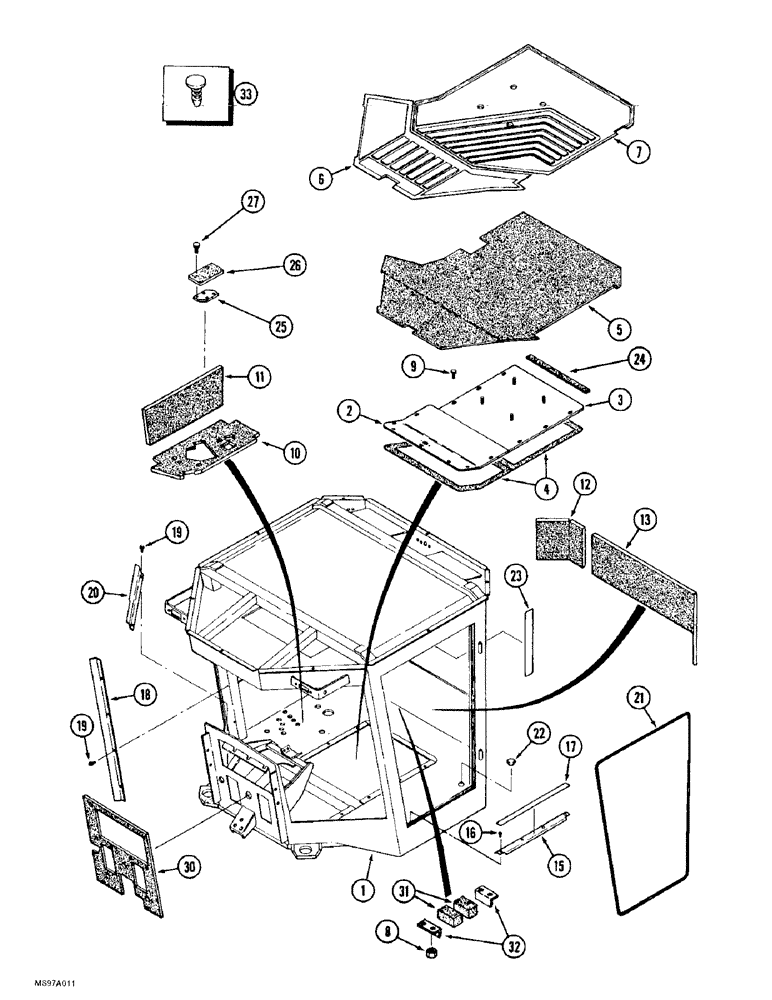

Запчасти Case IH 9350 (9-040) - CAB FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

60-7086T2

CAB

FRAME - cab, order from Machinery Price List

1шт.

2

60-6342T2

LARGE PLATE

PLATE - floor access, front

1шт.

3

60-6307T1

COVER

PLATE - floor access, rear

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - floor access plates, cut from 60-4596T1 bulk seal, see below

1шт.

5

60-6308T5

FLOOR MAT

PAD - noise, floor

1шт.

6

60-6343T2

CARPET

FLOORMAT - front

1шт.

7

60-6309T3

FLOOR MAT

FLOORMAT - rear

1шт.

8

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

9

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

13шт.

10

60-6565T1

FOAM

PAD - console insulation, floor

1шт.

11

60-4503T1

FOAM

PAD - console insulation, side

1шт.

12

60-4504T1

FOAM

PAD - console insulation, rear

1шт.

13

60-5935T1

NOISE PROTECTION

COVER - cab rear

1шт.

15

60-5011T3

LARGE PLATE

COVER - cab entrance

1шт.

16

443-1108

SCREW,Cross Flat Hd, #10-24 x 1/2"

- machine, flat Phillips, No. 10 NC x 1/2 inch

4шт.

17

60-4599T1

BAND

STRIP - non skid, 25 (1) x 635 mm (25 inch) long, cut from 60-4598T1 bulk strip, see below

2шт.

18

60-4383T1

PROTECTOR

GUARD - wire, cab post

1шт.

19

60-6688T1

SCREW

- hex washer head, self-tapping, special

6шт.

20

60-4403T1

PROTECTOR

GUARD - wire, floor

1шт.

21

60-6010T1

SEAL

- 4191 mm (165 inch) long, cut from 60-4402T1X bulk seal, see below

1шт.

22

22-619

GROMMET

- closure, SynchroShift Tractor

2шт.

23

2-7239T1

DECAL

- Warning, lifting data

1шт.

24

60-4597T1

FOAM

SEAL - foam, 711 mm (28 inch) long, cut from 60-4596T1 bulk seal, see below

8шт.

25

60-6672T2

LARGE PLATE

PLATE - cover, Power Shift Tractor

1шт.

26

60-6566T1

FOAM

PAD - console insulation, floor, Power Shift Tractor

1шт.

27

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

30

60-6704T1

FOAM

INSULATION - cab firewall

1шт.

31

60-7021T1

FOAM

- sealing

2шт.

32

60-7022T1

ANGLE BAR

ANGLE - foam

2шт.

33

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16 inch

1шт.

60-4596T1

SEAL

SEAL - foam, bulk, 3048 mm (120 inch) long

1шт.

60-4402T1X

SEAL

- bulk, 6096 mm (240 inch) long

1шт.

60-4598T1

BAND

STRIP - non-skid, bulk, 15240 mm (600 inch) long

1шт.
