Запчасти Case IH 9350 (9-036) - ROOF CAP, CAB AND ROPS (09) - CHASSIS/ATTACHMENTS

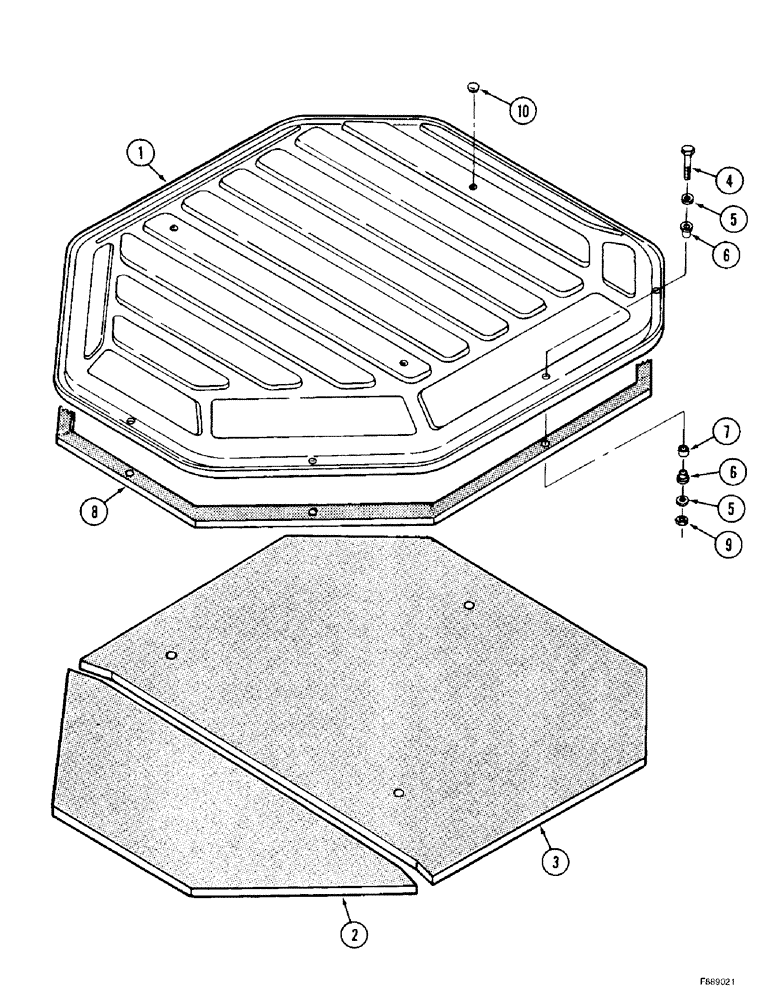

Схема запчастей Case IH 9350 - (9-036) - ROOF CAP, CAB AND ROPS (09) - CHASSIS/ATTACHMENTS
6
3
6
4
8
2
9
5
1
7
10
5

Артикул

Название

Примечание

Количество

1

60-5970T1

ROOF

CAP - roof top

1шт.

2

60-4657T1

FOAM

INSULATION - roof, cab only

1шт.

3

60-4450T2

FOAM

INSULATION - roof, cab only

1шт.

4

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

8шт.

5

9421394

WASHER

- flat, 1/4 x 1 x 1/16 inch

16шт.

6

60-1826T1

BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L

- roof snubber

16шт.

7

60-4584T1

WASHER

SPACER - bushing

8шт.

8

60-4583T1

FOAM

SEAL - foam, 5791 mm (228 inch) long, cut from 60-4595T1 bulk seal, see below

1шт.

9

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

8шт.

10

31-2595

PLUG

- lift holes

3шт.

60-4595T1

FOAM

SEAL - foam, bulk, 2743 mm (108 inch) long

1шт.

Выбрано товаров: 11
