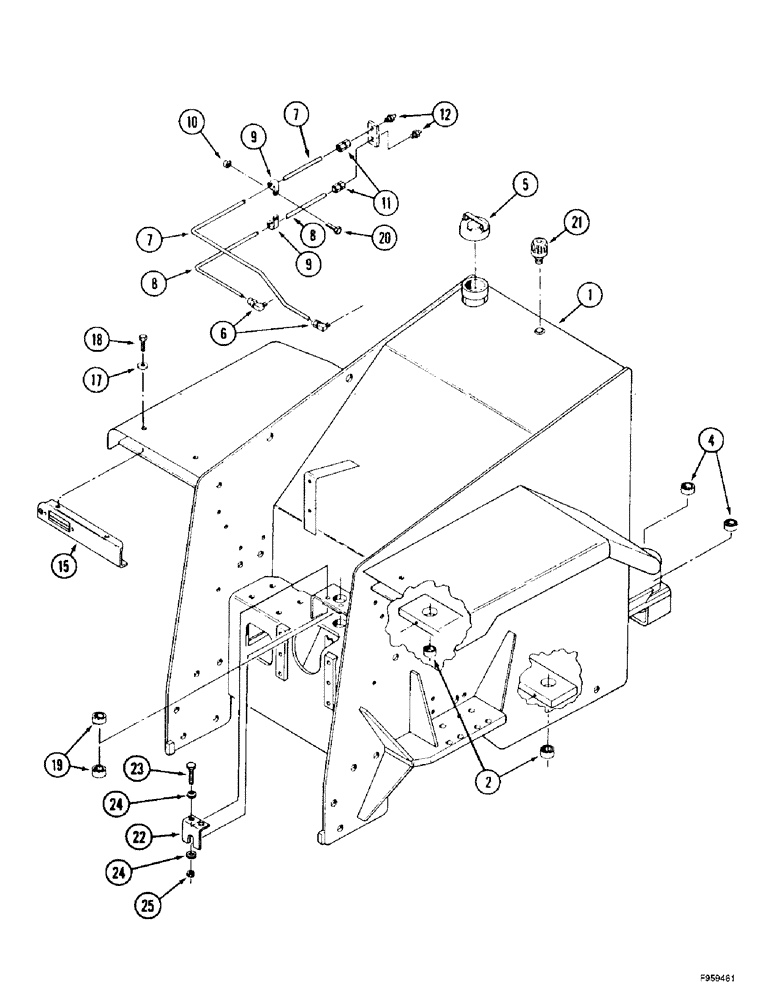

Запчасти Case IH 9350 (9-028) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

1

70-6622T1

FRAME

ASSEMBLY - rear, Includes: Ref. 2

1шт.

2

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - self-aligning

2шт.

4

70-4620T2

BUSHING,44.6mm ID x 57.12mm OD x 37.34mm L

- drawbar, front

2шт.

5

A162191

CAP

- fuel

1шт.

6

31-599

ELBOW

- 90 degree, 1/8 PT x 1/4 inch tube OD

2шт.

7

50-3337T2

TUBE

- grease

1шт.

8

50-3338T2

TUBE

- grease

1шт.

9

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

31-2785

FITTING

ADAPTER - straight, 1/8 PT x 1/4 inch tube OD

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

15

70-6709T1

SUPPORT

BRACKET - lamp mounting, left-hand

1шт.

16

70-6707T1

SUPPORT

BRACKET - lamp mounting, right-hand, not shown

1шт.

17

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

18

426-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4 NC x 1/2 inch, grade 8

4шт.

19

70-4621T2

BUSHING,44.5mm ID x 57.12mm OD x 25.4mm L

- frame, pivot, rear

2шт.

20

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

21

90-7732T1

BREATHER

- fuel tank

1шт.

22

70-6774T1

SUPPORT

BRACKET - mounting

1шт.

23

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

2шт.

24

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
