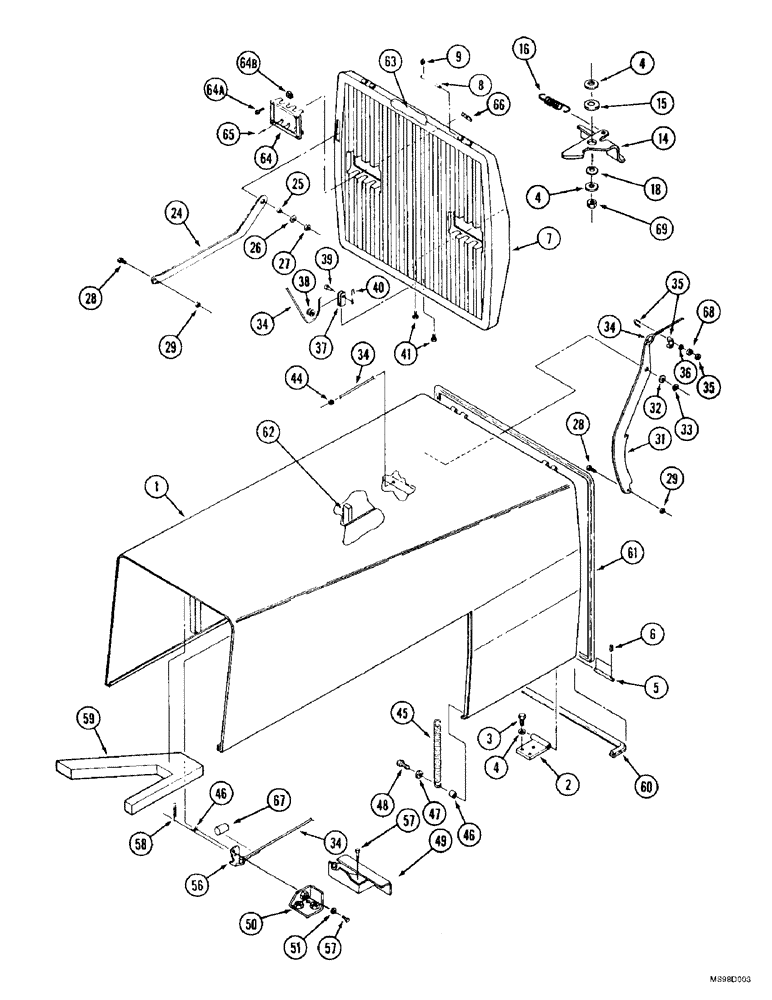

Запчасти Case IH 9350 (9-022) - HOOD AND GRILLE, (CONT) (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
36
495-21019
WASHER,#8
2шт.
37
70-5812T1
CLEVIS
- pulley
1шт.
38
70-5808T1
PULLEY
- wire rope
1шт.
39
427-4077
CLEVIS PIN,1/4" x .770"
PIN, CLEVIS, , Hardened 1/4" x .770"
1шт.
40
432-412
COTTER PIN,1/16" x 3/4"
PIN, SPLIT (COTTER), 1/16" x 3/4"
1шт.
41
426-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 8
- hex, 1/4 NC x 3/4 inch, grade 8
1шт.
44
19-6113
NYLON BEARING,0.484" ID x 0.578" OD x 0.14"
BUSHING - nylon, split, flanged
2шт.
45
70-5764T1
SPRING
- hood
2шт.
46
70-2806T1
SPACER
- spring and hood latch
2шт.
47
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 3/32") 1/2", SAE
2шт.
48
426-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
2шт.
49
70-6755T1
SUPPORT
BRACKET - hood retaining latch
1шт.
50
70-6753T1
SUPPORT
MOUNT - latch
1шт.
51
495-21044
WASHER,3/8"
(7/16 x 1 x 5/64 inch) 3/8"
5шт.
56
70-6178T1
LATCH
- release
1шт.
57
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
Shoulder Hex, 3/8"-16 x 1", G8, Full Thd
5шт.
58
A163012
SPRING
- latch
1шт.
59
60-6705T1
FOAM
SEAL - foam, rear hood
1шт.
60
70-6052T1
SEAL
- foam, 864 mm (34 inch) long, cut from 70-5259T1X bulk seal, see below
1шт.
61
70-5635T1
SEAL
- foam, 3556 mm (140 inch) long, cut from 70-5259T1X bulk seal, see below
1шт.
62
70-5813T1
SEAL
- foam, adhesive-backed, 1 x 1-1/2 x 8 inch long
1шт.
63
70-5258T2
SEAL
- foam, adhesive-backed
1шт.
64
70-6727T1
SUPPORT
BRACKET - lamp mounting, replaces 70-4484T2 bracket
2шт.
64a
280-16516
SELF-TAP SCREW,Hex Wash Hd, #10 x 1"
SCREW - self-tapping, hex washer head, No. 10 - 16 x 1 inch
4шт.
64b
60-7095T1
STEEL SHEET NUT
NUT - clip
4шт.
66
70-2507T2
LARGE PLATE
PLATE - bracket mounting
4шт.
67
70-5269T1
FERRULE
- wire rope
1шт.
68
492-11010
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
69
425-146
JAM NUT,3/8" - 16, Gr 5
- hex, jam, 3/8 inch NC
1шт.
70-5259T1X
SEAL
- foam, bulk, 3048 mm (120 inch) long
1шт.
