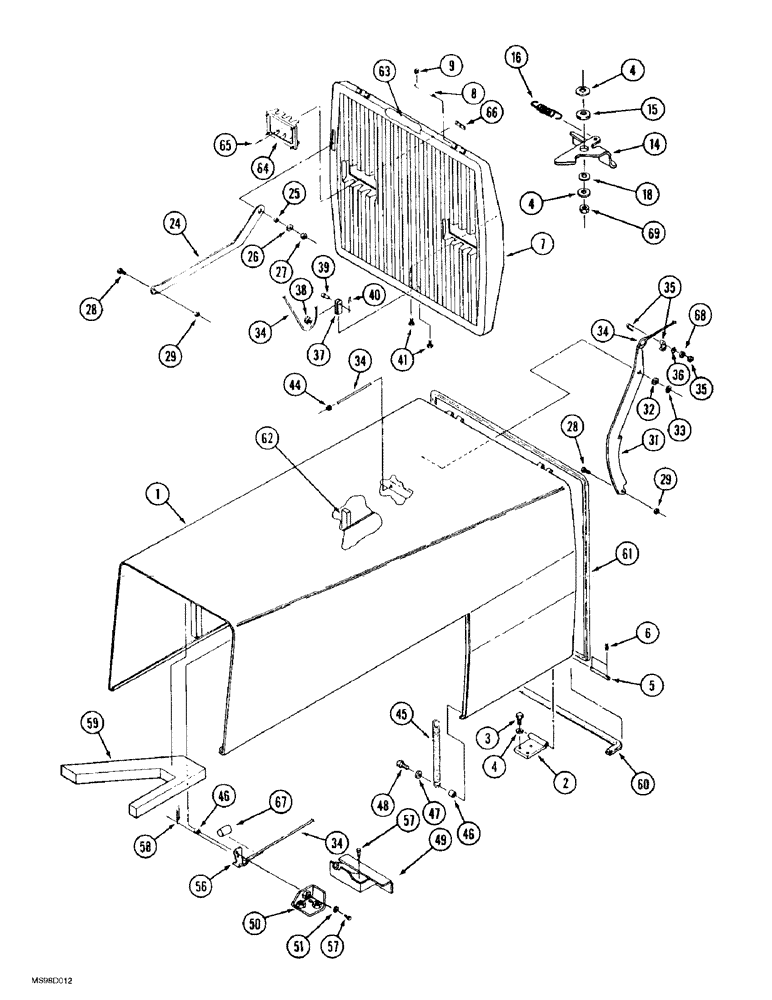

Запчасти Case IH 9350 (9-020) - HOOD AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

70-6610T1

HOOD ASSY.

HOOD - engine

1шт.

2

70-4263T1

HINGE

- hood

2шт.

3

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

4

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

8шт.

5

70-4262T2

PIN,12.7mm OD x 185.67mm L

- hood

2шт.

6

9415236

PIN, ROLL

PIN - 1/8 x 3/4 inch

4шт.

7

70-6612T91

SIEVE

GRILLE - radiator

1шт.

8

70-1996T3

PIN,6.35mm OD x 111mm L

- grille

2шт.

9

70-2600T2

CIRCLIP

RING - retaining

4шт.

14

70-5888T1

LOCK

LATCH - grille

1шт.

15

496-81023

WASHER

- flat, 13/32 x 3/4 x 7/32 inch, hardened, pivot, latch, replaces 70-5177T1 spacer

2шт.

16

90-7524T1

SPRING

- latch handle

1шт.

18

19-6266T1

WAVE WASHER

- lock, wave

1шт.

24

70-5810T1

ROD, ADJUSTMENT

ROD - retainer, open grille

1шт.

25

70-5814T1

RING

BUSHING - lever, grille

1шт.

26

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

6шт.

27

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

5шт.

28

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

29

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

5шт.

31

70-5811T2

ROD, ADJUSTMENT

BRACE - open hood

1шт.

32

495-11081

WASHER,3/4", SAE

1шт.

33

19-5860

SNAP RING,#75, Ext

Ring, Snap, , hood lever #75, Ext

1шт.

34

60-6510T1

ROPE

- wire, 148 inch long, cut from 70-5252T1 bulk wire, see below

1шт.

35

70-5275T1

MOUNTING CLIP

CLAMP - includes U-bolt and nut

1шт.

70-5252T1

ROPE

- wire, bulk, 7620 mm (300 inch) long Continued on next page

1шт.
