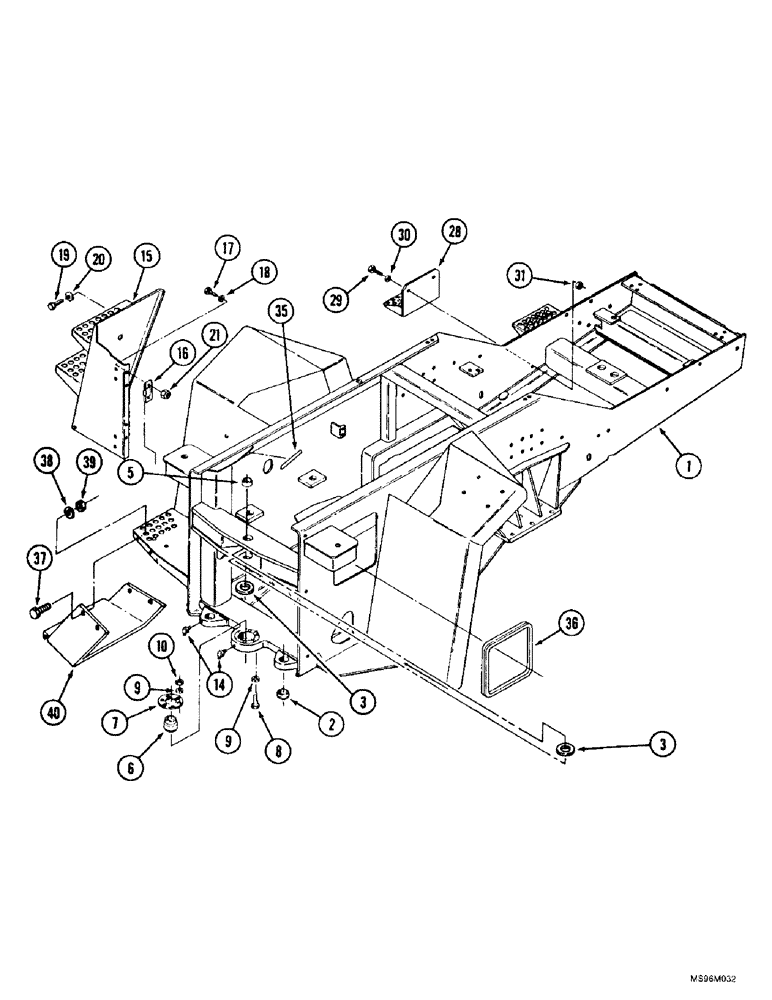

Запчасти Case IH 9350 (9-016) - FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1

70-6273T4

FRAME

ASSEMBLY - front, Serial Range: -JEE0036501

1шт.

1

70-6814T1

FRAME

ASSEMBLY - front, Start Serial: JEE0036501

1шт.

Plate on bottom in frt w/3 holes is part number 70-4651t3 (see s/b ntrsb02794)

1шт.

1

70-6922T1

ASSEMBLY

FRAME ASSEMBLY - front, row crop special, not shown

1шт.

2

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - self-aligning, steering cylinder pivot

2шт.

3

19-5709

WASHER,51.21mm ID x 88.9mm OD x 3.8mm Thk

- special, frame

2шт.

5

70-4621T2

BUSHING,44.5mm ID x 57.12mm OD x 25.4mm L

- pivot, frame rear

2шт.

6

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - hinge lower

1шт.

7

70-4596T1

LARGE PLATE

RETAINER - bearing

1шт.

8

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

6шт.

9

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

12шт.

10

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

6шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

3шт.

15

70-5520T3

STEP

- cab access

1шт.

16

70-3158T2

HINGE

- swing out step

2шт.

17

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

4шт.

18

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

4шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

28

70-2142T3

STEP

- lower front

1шт.

29

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

30

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

31

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

35

31-2787

GROMMET

TRIM - edge, 178 mm (7 inch) long, cut from 31-1785 bulk trim, see below

1шт.

36

50-2535T1

GROMMET

TRIM - edge, 1435 mm (56-1/2 inch) long, cut from 31-1785 bulk trim, see below

1шт.

37

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

38

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

4шт.

39

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

40

70-5920T1

STEP

- rear

1шт.

31-1785

GROMMET

- edge, bulk, 3048 mm (120 inch) long

1шт.
