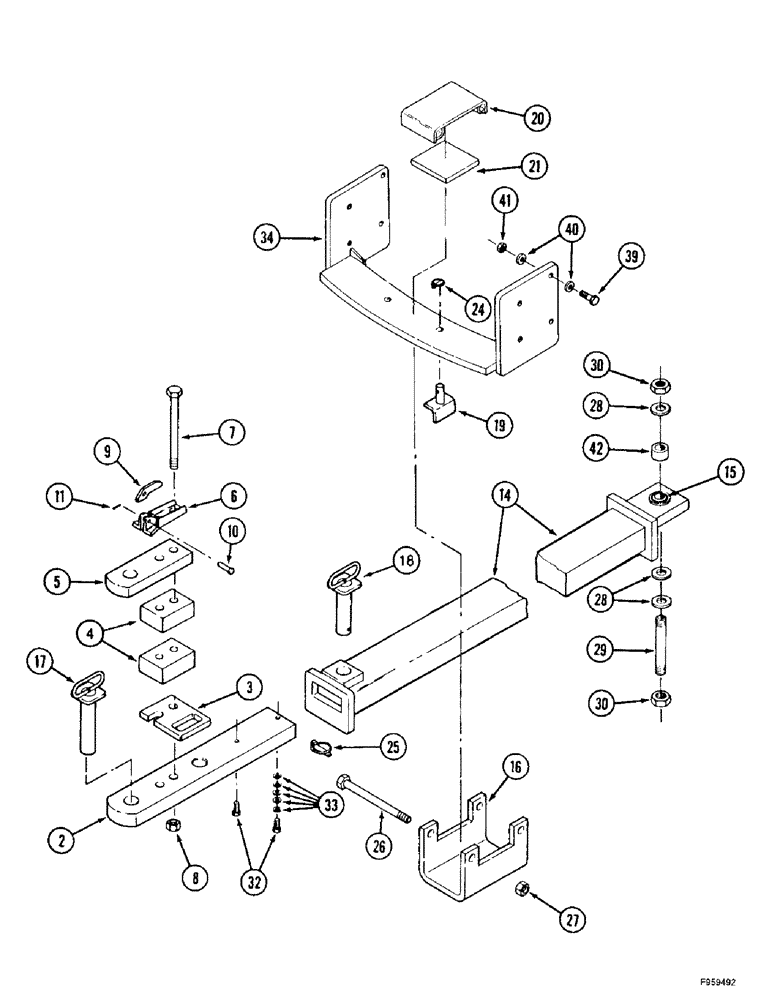

Запчасти Case IH 9350 (9-012) - EXTENDABLE DRAWBAR, WITHOUT THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

2

70-6913T1

DRAWBAR

- extendable

1шт.

70-6913T1 is a heat treated drawbar. See NTR SB 017 98 for more information.

1шт.

3

70-6263T2

LARGE PLATE

PLATE - spacer block

1шт.

4

70-6264T2

LARGE PLATE

BLOCK - spacer, 1-1/2 inch thick

2шт.

5

70-6265T1

LARGE PLATE

PLATE - hammerstrap

1шт.

6

70-6249T1

LATCH

- mount

1шт.

7

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex, special, 1 NC x 9-1/4 inch

2шт.

8

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

9

1965315C2

LEVER

- hammerstrap

1шт.

10

527-204

CLEVIS PIN,M12 x 43

PIN - clevis, 10 x 43 mm

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

14

70-6284T1

TUBE,2562.6, 76.2 mm Length

- drawbar receiver, 100-57/64 inch long, Includes: Ref. 15

1шт.

15

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

- self-aligning

1шт.

16

70-4516T1

CLEVIS

YOKE - cradle, drawbar

1шт.

17

70-1735T1

PIN

- drawbar

1шт.

18

70-1731T1

PIN

- drawbar retaining

1шт.

19

70-1937T2

SHAFT LOCK

PIN - retaining

2шт.

20

70-4555T1

COVER

- retaining, slide

1шт.

21

70-4513T2

SKID/SHOE

SLIDER - plastic, drawbar

1шт.

24

517758R91

SPLIT PIN/SAFETY PIN

PIN - klik, locking, slide stop pin retaining

2шт.

25

19-1041

LOCK PIN,7/16" x 2"

PIN - klik, locking, drawbar pin retaining

1шт.

26

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex, special, 1 NC x 9-1/4 inch

2шт.

27

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

28

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

3шт.

29

70-4189T1

PIN,44.37mm OD x 339.85mm L

- threaded, and center link

1шт.

30

70-6221T1

JAM NUT

- special locking

2шт.

32

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

2шт.

33

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

5шт.

34

70-5699T2

SUPPORT

HANGER - drawbar

1шт.

39

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, grade 8, 7/8 x 2-1/2

10шт.

40

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch, hardened

20шт.

41

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, grade 8

10шт.

42

70-5703T1

SPACER

- drawbar tube

1шт.
