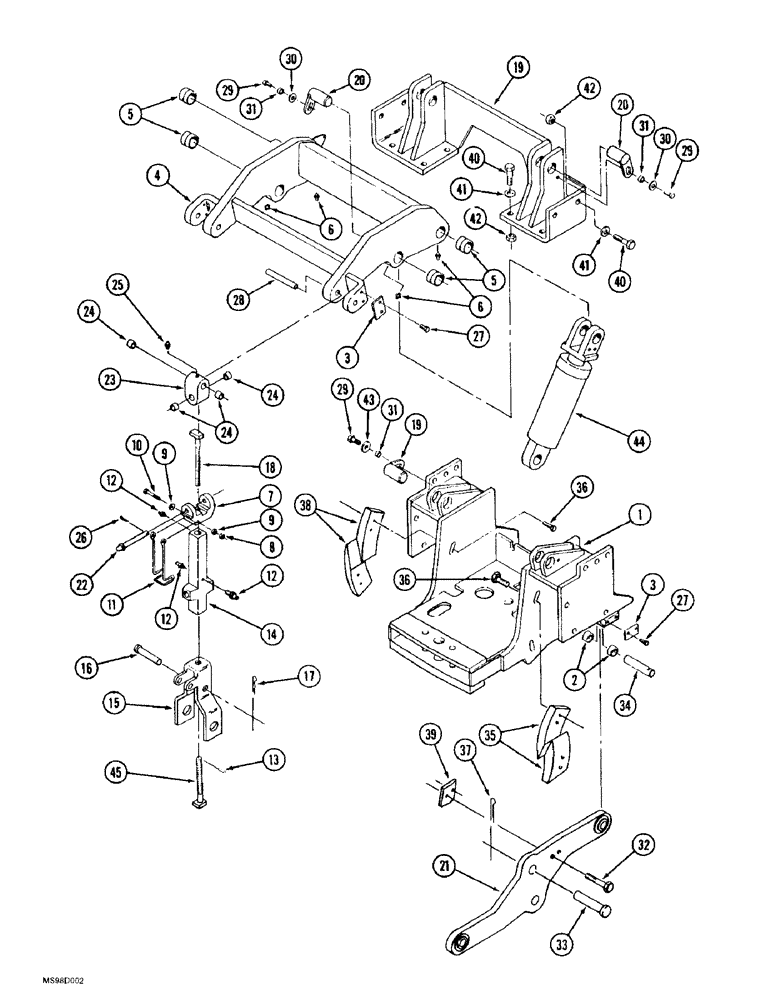

Запчасти Case IH 9350 (9-008) - HITCH LOWER LINK, MOUNTS AND DRAWBAR, PRIOR TO P.I.N. JEE0071001 (09) - CHASSIS/ATTACHMENTS

1

70-6341T92

FRAME

MOUNT ASSEMBLY - lower link, Includes: Ref. 2

1шт.

2

90-6971T2

SPACER

BEARING - inner race

1шт.

3

70-3082T2

LARGE PLATE

BLOCK - pin retaining

4шт.

70-6353T91

FRAME

ROCKERSHAFT ASSEMBLY - hitch, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

ROCKERSHAFT - hitch

1шт.

5

70-6354T1

BUSHING

- pivot

4шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

70-6889T91

ARM, LIFT

LINK ASSEMBLY - lift, Includes: Ref. 7 - 18

2шт.

7

70-5496T1

FORK

YOKE - lift link

1шт.

8

213-1446

ADAPTER -

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

10

426-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

- hex, 3/8 NC x 4 inch, grade 8

1шт.

11

123464C3

CLAMP

- turnbuckle lock

1шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

3шт.

13

38-21620

PIN,1/4" x 1 1/4", Coiled

1шт.

14

149836C4

TURNBUCKLE

- lift link

1шт.

15

70-6836T1

CLEVIS

- lift

1шт.

16

427-12325

CLEVIS PIN,3/4" x 3 1/4"

PIN - clevis, 3/4 x 3-1/4, hardened

1шт.

17

480523R1

HAIR PIN COTTER

1шт.

18

70-5410T1

STEM

ROD - leveling, upper

1шт.

19

70-6352T1

FRAME

MOUNT - rocker shaft

1шт.

20

70-5973T2

PIN

- mounting

6шт.

21

70-6842T91

ARM

- draft

2шт.

Ball on each end is 70-6910t1 per print.

1шт.

22

70-5471T1

PIN

- headed, mounting

2шт.

70-5495T91

JOINT

SWIVEL ASSEMBLY - lift link, Includes: Ref. 23 - 25

2шт.

23

NSS

NOT SOLD SEPARAT

SWIVEL - link lift

1шт.

24

70-5497T2

SPACER

BUSHING - swivel, lift link

4шт.

25

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

2шт.

26

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

27

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

8шт.

28

70-5411T1

PIN

- mounting

2шт.

29

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

6шт.

30

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

14шт.

31

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin, mounting

6шт.

32

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- hex, 1/2 NC x 2-1/4 inch, grade 8

4шт.

33

427-16400

CLEVIS PIN,1" x 4"

PIN - clevis, 1 x 4 inch, hardened

2шт.

ECN F990808 requests this clevis pin be obsoleted at this application and only use (2) 370068A1 clevis pins. NAPO TECH NOTE

1шт.

34

70-5501T1

PIN

- mounting

2шт.

35

70-5720T1

LARGE PLATE

PLATE - wear, right-hand

2шт.

36

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

8шт.

37

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

38

70-5721T1

LARGE PLATE

PLATE - wear, left-hand

2шт.

39

70-4633T2

SHIM

- mounting

2шт.

40

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, grade 8

24шт.

41

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch, hardened

48шт.

42

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, grade 8

24шт.

43

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

44

50-3499T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - three point hitch, parts list Figure 8-50

2шт.

45

70-6837T1

ROD, ADJUSTMENT

ROD - leveling, lower

1шт.
