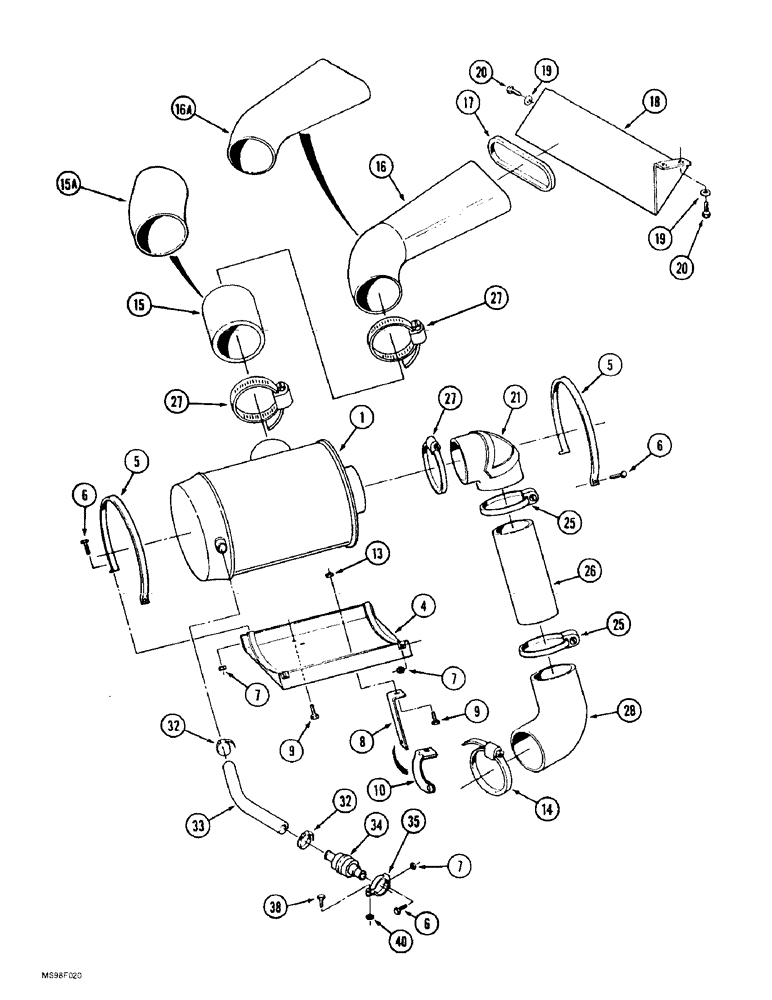

Запчасти Case IH 9350 (2-08) - AIR INDUCTION SYSTEM (02) - ENGINE

1

90-7743T91

AIR CLEANER

CLEANER ASSEMBLY - air, parts list Figure 2-10

1шт.

4

90-7271T3

SUPPORT

BRACKET - mounting, air cleaner

1шт.

5

90-7268T1

ANCHOR

RETAINER - band, air cleaner

1шт.

6

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

5шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

5шт.

8

90-7585T1

SUPPORT

BRACKET - support, replaced by 90-8448T1 bracket, Ref. 10

1шт.

9

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

5шт.

10

90-8448T1

BRACKET

- support, replaces 90-7585T1 bracket, Ref. 8

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

214-3272

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm, W/ Liner

CLAMP - adj, 4-1/4 - 4-9/16 inch dia

1шт.

15

70-6188T1

ELBOW

- air induction, Serial Range: -JEE0036501

1шт.

15a

70-5722T1

ELBOW

- air induction, Start Serial: JEE0036501

1шт.

16

90-7484T1

AIR INTAKE TUBE,6" OD

TUBE - air induction, Serial Range: -JEE0036501

1шт.

16a

90-8270T1

AIR INTAKE TUBE,6" OD x 25.51" L

TUBE - air induction, Start Serial: JEE0036501

1шт.

17

90-7220T1

SEAL

- 590 mm (23-1/4 inch) long, cut from F43117X bulk seal, see below, Serial Range: -JEE0036501

1шт.

17

90-8331T1

SEAL

- 876 mm (34-1/2 inch) long, cut from F43117X bulk seal, see below, Start Serial: JEE0036501

1шт.

18

90-7330T1

DEFLECTOR

BAFFLE - air, Serial Range: -JEE0036501

1шт.

18

90-8328T1

DEFLECTOR

BAFFLE - air, Start Serial: JEE0036501

1шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

20

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

21

70-5833T1

ELBOW

- 90 degree, air induction, rubber, 6 x 5 inch

1шт.

25

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 5.25/6.125 HD Worm, W/liner

2шт.

26

90-7273T2

TUBE,5" OD x 12.5" L

- adapter

1шт.

27

214-32104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm, W/ Liner

CLAMP - adj, 5-3/4 - 6-5/8 inch dia

3шт.

28

9-94

HOSE,4.0 " ID, 5.0 ID

Elbow, 90 Degree 4.0 " ID, 5.0 ID

1шт.

32

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

33

90-7308T1

RADIATOR HOSE,23.00"

Cut from 31-2901 bulk hose, See below 23.00"

1шт.

34

90-7640T1

VALVE

- check, aspirator tube, replaces A190699 valve

1шт.

35

90-7639T1

CLAMP

- check valve

1шт.

38

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

1шт.

40

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

F43117X

SEAL

- formed rubber, adhesive-backed, bulk, 15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch) long

1шт.

31-2901

HOSE,1.50" ID x 10.50"

Bulk 1.50" ID x 10.50"

1шт.
