Запчасти Case IH 9350 (8-84) - PRIORITY REMOTE HYDRAULIC VALVE KIT, WITH LOAD CHECK, (CONT) (08) - HYDRAULICS

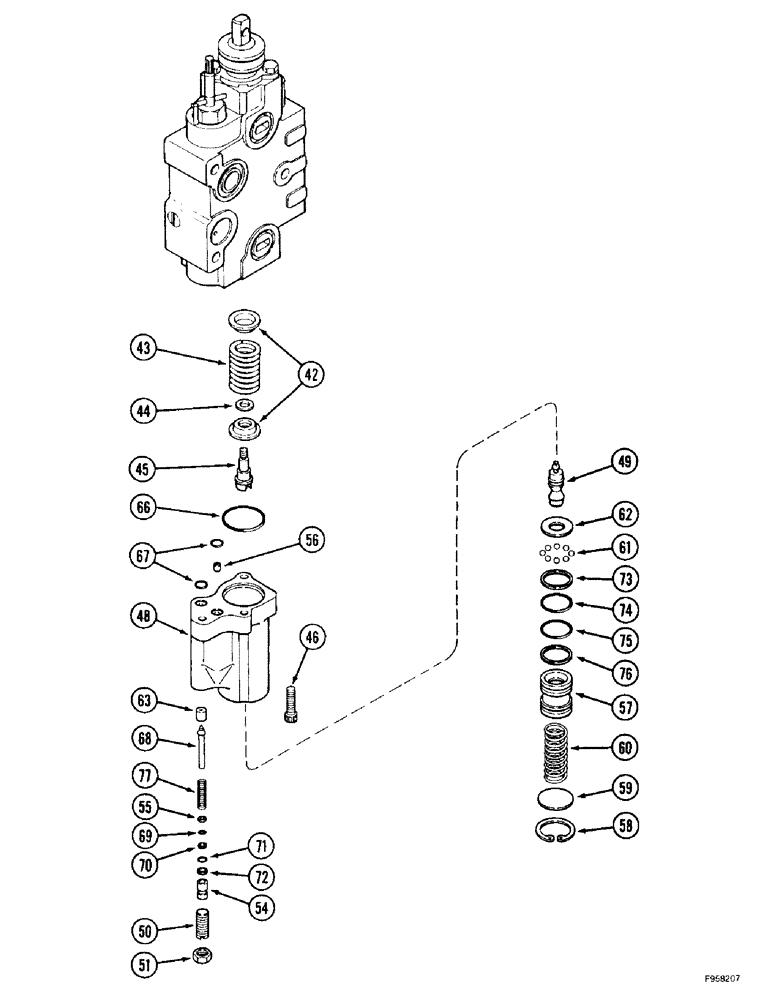

Схема запчастей Case IH 9350 - (8-84) - PRIORITY REMOTE HYDRAULIC VALVE KIT, WITH LOAD CHECK, (CONT) (08) - HYDRAULICS
62
42
76
49
77
67
69
55
63
66
56
43
44
68
61
54
58
50
75
51
74
72
73
70
60
71
46
59
57
48
45

Артикул

Название

Примечание

Количество

35-1753T91

VALVE

KIT - valve, priority remote, no longer available, order component parts separately, continued, Includes: Ref. 42 - 77 and 1 - 38 on Fig. 8-82

1шт.

1986840C1

VALVE

ASSEMBLY - remote control, with load check, replaces A52404 valve assembly, Includes: Ref. 42 - 77

1шт.

42

A47197

RETAINER

- spring

2шт.

43

A47177

SPRING

- centering

1шт.

44

A47199

BUSHING

SPACER - detent

1шт.

45

A47193

COUPLING, BREAK AWAY

COUPLER - detent pivot

1шт.

46

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

3шт.

A48940

KIT

- housing, detent, replaces A52435, Includes: Ref. 48 - 77

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING - detent

1шт.

49

A52409

SHAFT

- detent

1шт.

50

A52437

SET SCREW,3/8" - 24 x 1", Gr 7

- adjusting

1шт.

51

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

54

A48936

GOVERNOR

PISTON - regulator

1шт.

55

A48935

WASHER

- poppet valve

1шт.

56

A47658

PLUG

- orifice

1шт.

57

A48932

PISTON

- kickout

1шт.

58

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

1шт.

59

A48933

RING

RETAINER - piston

1шт.

60

A48934

SPRING

- detent

1шт.

61

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Gr 24

8шт.

62

A48931

WASHER

- guide

1шт.

63

A47201

SEAT

- pilot float

1шт.

A48942

KIT

- seal, detent, Includes: Ref. 66 - 77

1шт.

66

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

67

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

68

NSS

NOT SOLD SEPARAT

POPPET - detent

1шт.

69

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

70

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- backup

1шт.

71

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

72

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

73

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup

1шт.

74

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

75

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

76

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.

77

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.

Выбрано товаров: 35
