Запчасти Case IH 9350 (2-04) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

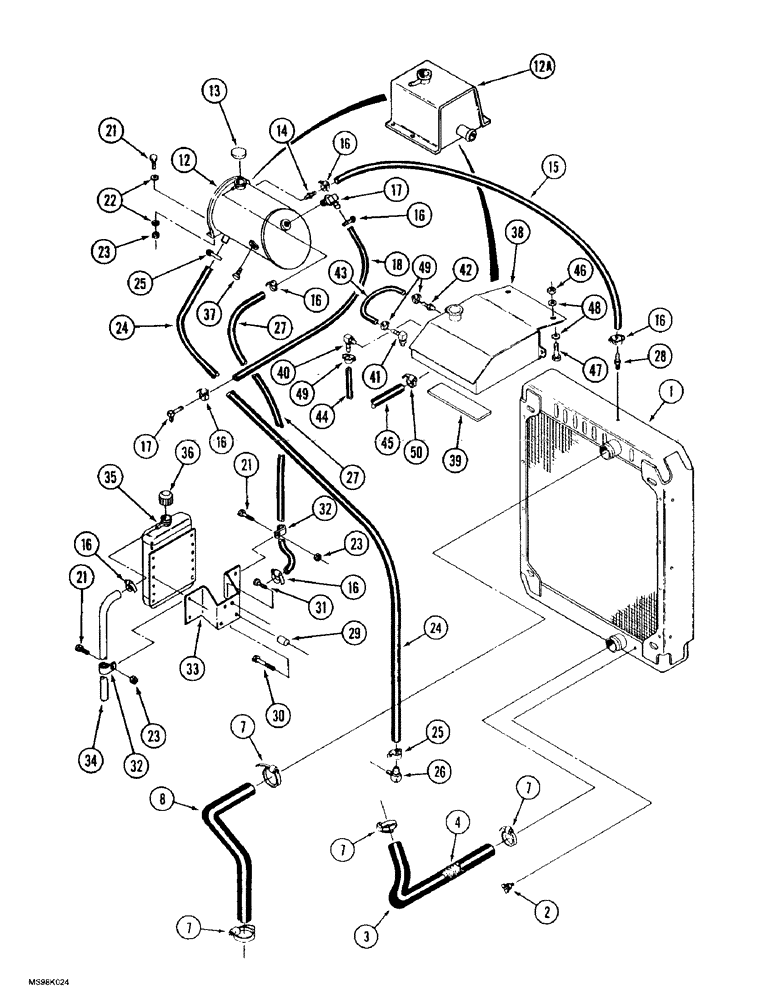

Схема запчастей Case IH 9350 - (2-04) - RADIATOR AND ATTACHING PARTS (02) - ENGINE
7
34
16
32
4
25
35
27
2
26
41
1
25
3
23
17
47
49
44
16
46
42
16
18
7
22
8
16
21
43
12a
23
12
24
7
16
50
37
40
13
48
29
7
16
23
21
31
14
49
39
30
33
15
36
24
45
38
27
17
21
28
16
32

Артикул

Название

Примечание

Количество

1

90-7197T2

RADIATOR

- engine cooling, Serial Range: -JEE0036501

1шт.

1

90-8158T1

RADIATOR

- engine cooling, Start Serial: JEE0036501

1шт.

2

217-92

COCK

VALVE - drain, 1/4 inch PT, radiator

1шт.

3

90-7298T2

RADIATOR HOSE,2.50" ID x 20.82", SAE J20, SAE 20R4

Lower 2.50" ID x 20.82", SAE J20, SAE 20R4

1шт.

4

32-1007

SPRING

- hose insert

1шт.

7

70-5521T1

COLLAR CLAMP

CLAMP - adj, 2 - 3 inch dia

4шт.

8

90-7873T1

RADIATOR HOSE,2.25" ID x 13.75", SAE J20

- Upper 2.25" ID x 13.75", SAE J20, Serial Range: -JEE0036501

1шт.

8

90-8269T1

RADIATOR HOSE,2.25" ID x 14.73", SAE J20, SAE 20R4

- Upper 2.25" ID x 14.73", SAE J20, SAE 20R4, Start Serial: JEE0036501

1шт.

12

90-7798T1

TANK

- fill, radiator, Serial Range: -JEE0036501

1шт.

12a

90-8306T1

TANK

- fill, radiator, Start Serial: JEE0036501

1шт.

13

90-7731T1

CAP

- fill tank

1шт.

14

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER - straight, 1/4 barb end x 1/8 inch PT

1шт.

15

31-2691

HOSE,6.4 mm ID x 228.60 mm

; Order A21561X, and Cut to Required Length; See Below 6.4 mm ID x 228.60 mm

1шт.

16

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

7шт.

17

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW - 90 degree, 1/4 barb end x 1/8 inch PT

2шт.

18

31-2742

HOSE,6.4 mm ID x 553.40 mm

; Order A21561X, and Cut to Required Length 6.4 mm ID x 553.40 mm

1шт.

21

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

8шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

12шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

24

31-1504

HOSE,1.00" ID x 31.00"

Cut From 31-1502 Bulk Hose, See Below 1.00" ID x 31.00"

1шт.

25

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

26

50-3332T1

ELBOW

- 90 degree, special

1шт.

27

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Cut from L126767 bulk hose, See below 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

28

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER - straight, 1/4 barb end x 1/4 inch PT

1шт.

29

90-7454T1

SPACER

- bracket

2шт.

30

614-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 60 mm

2шт.

31

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

32

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

33

90-7796T1

SUPPORT

BRACKET - mounting, coolant recovery bottle

1шт.

34

31-2943

HOSE

- 305 mm (12 inch) long, cut from 87769CX bulk hose, see below

1шт.

31-1502

HOSE,1.00", Bulk, SAE 20R3 CLASS D2

1.00", Bulk, SAE 20R3, CLASS D2, see Ref. 24

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

- bulk, 6 (1/4) x 13 (1/2) x 7620 mm (300 inch) long, see Refs. 15 and 18

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

see Ref. 27 7.9 mm ID x 2336.00 mm, SAE 30R6 or SAE 20R4 Class D1

1шт.

87769CX

LARGE HOSE

HOSE - rubber, bulk roll, 7 (9/32) ID x 27432 mm (1080 inch) long, see Ref. 34

1шт.

35

90-7717T1

RESERVOIR

BOTTLE - coolant recovery

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

36

1547924C1

CAP

- recovery bottle

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

37

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

1шт.

38

90-8457T1

TANK

- fill, radiator

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

39

70-5258T2

SEAL

- foam, adhesive-backed

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

40

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW - 90 degree, 1/4 barb end x 1/8 inch PT

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

41

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/4 barb end x 1/4 inch PT

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

42

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER - straight, 1/4 barb end x 1/8 inch PT

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

43

334306A1

HOSE ASSY.

HOSE - 171 mm (6-3/4 inch) long, cut from A21561X bulk hose, see below

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

44

333601A1

HOSE

- 787 mm (31 inch) long, cut from A21561X bulk hose, see below

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

45

31-1505

HOSE,1.00" ID x 38.00"

cut from 31-1502T1 bulk hose, see below 1.00" ID x 38.00"

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

46

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

47

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

48

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

12шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

49

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia

4шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

50

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

51

19-135

CABLE TIE

STRAP - tie, nylon, not shown

2шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

52

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Not shown

2шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

- bulk, 6 (1/4) x 13 (1/2) x 7620 mm (300 inch) long, see Refs. 43 and 44

1шт.

31-1502T1

HOSE,1.00" ID x 120.00" Bulk, SAE 20R3 CLASS D2

1.00" ID x 120.00", Bulk, SAE 20R3, CLASS D2, see Ref. 45

1шт.

35-2017T91

PACKAGE

KIT - flare tip fan, Includes: Refs. 35, 36 and 38 - 52, See also Figures 2-2 and 2-16, Start Serial: JEE0036501

1шт.

Выбрано товаров: 72
