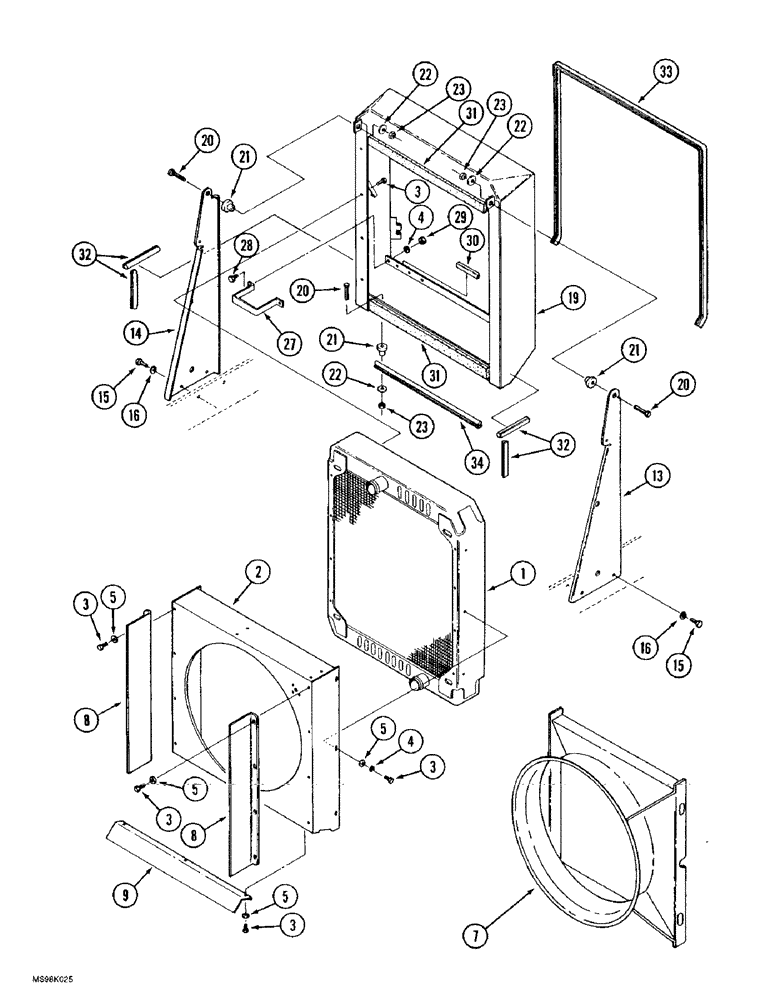

Запчасти Case IH 9350 (2-02) - RADIATOR MOUNTING (02) - ENGINE

1

90-7197T2

RADIATOR

- engine cooling, Serial Range: -JEE0036501

1шт.

1

90-8158T1

RADIATOR

- engine cooling, Start Serial: JEE0036501

1шт.

2

90-7359T1

GUARD

SHROUD - fan, Serial Range: -JEE0036501

1шт.

2

90-8304T2

SHROUD

- fan, Start Serial: JEE0036501

1шт.

3

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

17шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

17шт.

7

90-8449T1

SHROUD

- fan

1шт.

Part of flare tip fan kit P/N 35-2017T91

1шт.

8

90-7363T1

GUARD

SHIELD - side, fan, Serial Range: -JEE0036501

2шт.

8

90-8304T2

SHROUD

- fan, Start Serial: JEE0036501

2шт.

9

90-7362T1

GUARD

SHIELD - bottom, fan, Serial Range: -JEE0036501

1шт.

9

90-7362T2

GUARD

SHIELD - bottom, fan, Start Serial: JEE0036501

1шт.

13

70-5767T1

SUPPORT

BRACKET - radiator frame, right-hand, Serial Range: -JEE0036501

1шт.

13

70-6800T2

MOUNTING PARTS

BRACKET - radiator frame, Start Serial: JEE0036501

1шт.

14

70-5765T1

SUPPORT

BRACKET - radiator frame, left-hand, Serial Range: -JEE0036501

1шт.

14

70-6799T2

MOUNTING PARTS

BRACKET - radiator frame, Start Serial: JEE0036501

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

19

90-7252T2

FRAME

- radiator mounting, Serial Range: -JEE0036501

1шт.

19

90-8287T1

FRAME ASSY

FRAME - radiator mounting, Start Serial: JEE0036501

1шт.

20

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

21

CASL13142

BUSHING

MOUNT - isolator, rubber

4шт.

22

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

27

50-3333T1

SUPPORT

BRACKET - mounting

1шт.

28

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

30

70-5848T1

SEAL

TRIM - edge, 140 mm (5-1/2 inch) long, cut from F64277X bulk trim, see below

1шт.

31

60-6505T1

FOAM

SEAL - foam, 746 mm (29-3/8 inch) long, cut from 60-4595T1 bulk seal, see below

2шт.

32

90-7285T1

SEAL

- foam, 184 mm (7-1/4 inch) long, cut from 70-5259T1X bulk seal, see below

4шт.

33

90-7277T1

SEAL

- foam, 2845 mm (112 inch) long, cut from F43117X bulk seal, see below

1шт.

34

90-7284T1

SEAL

- foam, 619 mm (24-3/8 inch) long, cut from 70-5259T1X bulk seal, see below

1шт.

F64277X

SEAL

TRIM - edge, bulk, 14478 mm (570 inch) long, see Ref. 30

1шт.

60-4595T1

FOAM

SEAL - foam, bulk, 2743 mm (108 inch) long, see Ref. 31

1шт.

70-5259T1X

SEAL

- foam, bulk, 3048 mm (120 inch) long, see Ref. 34

1шт.

F43117X

SEAL

- formed rubber, adhesive-backed, bulk, 15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch) long, see Ref. 33

1шт.

35-2017T91

PACKAGE

KIT - flare tip fan, Includes: Ref. 7 and in Figures 2-2 - 2-4 and 2-16, Start Serial: JEE0036501

1шт.
