Артикул
Название
Примечание
Количество

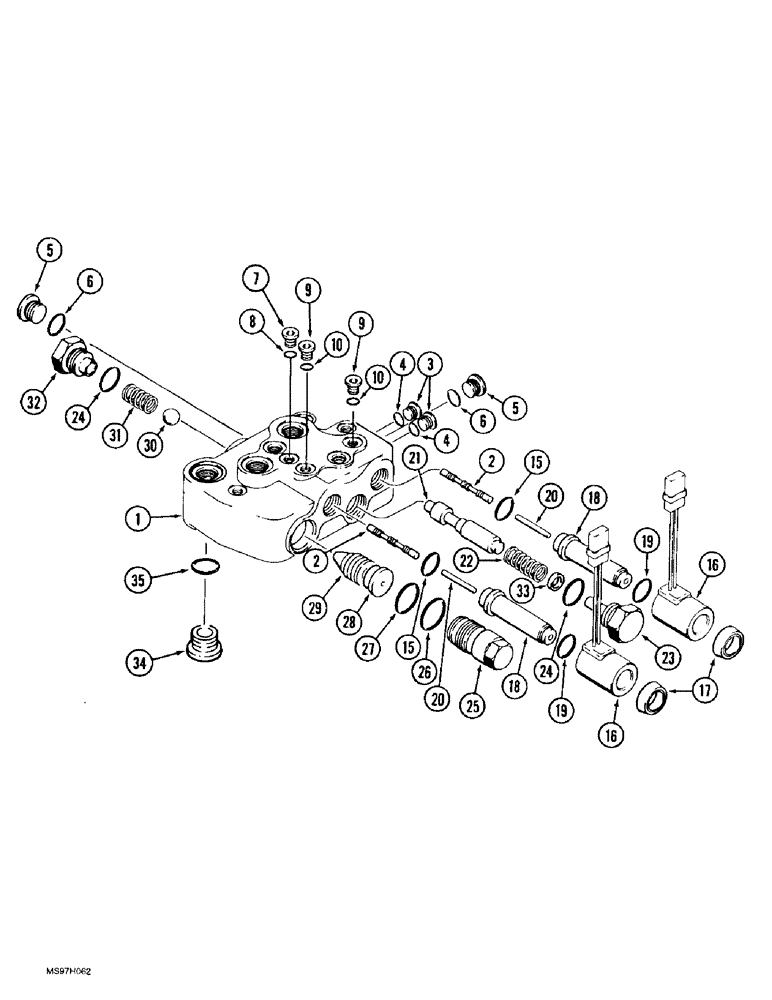

246245A1
VALVE
ASSEMBLY - control, hitch, Includes: Ref. 1 - 35
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve, Includes: Ref. 1 - 35
1шт.
3
86529630
PLUG,Hex Soc, 3/8"-24 ORB
Includes Ref. 4 Hex Soc, 3/8"-24 ORB
2шт.
4
237-6003
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk
2шт.
Part of seal repair kit P/N 243253A1
1шт.
5
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Incl Ref 6 Hex Soc, 3/4"-16 ORB
2шт.
6
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
2шт.
Part of seal repair kit P/N 243253A1
1шт.
7
9625178
PLUG,9/16" - 18 ORB
Incl. Ref. 8 Hex Soc, 9/16"-18 ORB
1шт.
9
278548
PLUG,Hex, 7/16"-20 ORB
Incl Ref 10 Hex Soc, 7/16"-20 ORB
2шт.
15
238-5114
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
2шт.
Part of seal repair kit P/N 243253A1
1шт.
16
243254A1
KIT
- solenoid, without diode, 12 volt, DC
2шт.
17
188106A1
NUT
- special, solenoid coil
2шт.
18
188117A1
CARTRIDGE,72.25mm OAL
CORE - solenoid
2шт.
19
238-5017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
-017, 70 Duro, .676" ID x .070" Thk
2шт.
Part of seal repair kit P/N 243253A1
1шт.
20
188116A1
PIN,3.25mm OD x 39.93mm L
- solenoid actuating
2шт.
21
NSS
NOT SOLD SEPARAT
SPOOL - meter in, main flow
1шт.
22
NSS
NOT SOLD SEPARAT
SPRING - meter in, main flow
1шт.
23
188110A1
PLUG
- spool
1шт.
24
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
2шт.
Part of seal repair kit P/N 243253A1
1шт.
243256A1
SERVICE KIT
KIT - meter out, Includes: Ref. 25 - 29
1шт.
25
NSS
NOT SOLD SEPARAT
PLUG - meter out poppet
1шт.
26
238-5023
O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro
-023, 70 Duro, 1.051" ID x .070" Thk
1шт.
Part of seal repair kit P/N 243253A1
1шт.
27
238-5022
O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro
-022, 70 Duro, .989" ID x .070" Thk
1шт.
Part of seal repair kit P/N 243253A1
1шт.
28
NSS
NOT SOLD SEPARAT
STEM - servo, meter out
1шт.
29
NSS
NOT SOLD SEPARAT
POPPET - meter out
1шт.
30
511-10200
BALL,20mm Dia
Gr 28, chrome alloy steel 20mm Dia
1шт.
31
188114A1
SPRING
- load check
1шт.
32
188107A1
PLUG
- check valve
1шт.
33
NSS
NOT SOLD SEPARAT
SHIM - spring
1шт.
34
218-5214
PLUG,Hex Soc, 1 5/16"-12 ORB
Incl. Ref 35 Hex Soc, 1 5/16"-12 ORB
1шт.
243253A1
SEAL KIT
KIT - seal repair, Includes: Refs 4, 6, 8, 10, 15, 19, 24, 26 and 27.
1шт.
10
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
2шт.
Part of seal repair kit P/N 243253A1
1шт.
8
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Part of seal repair kit P/N 243253A1
1шт.
Выбрано товаров: 43
