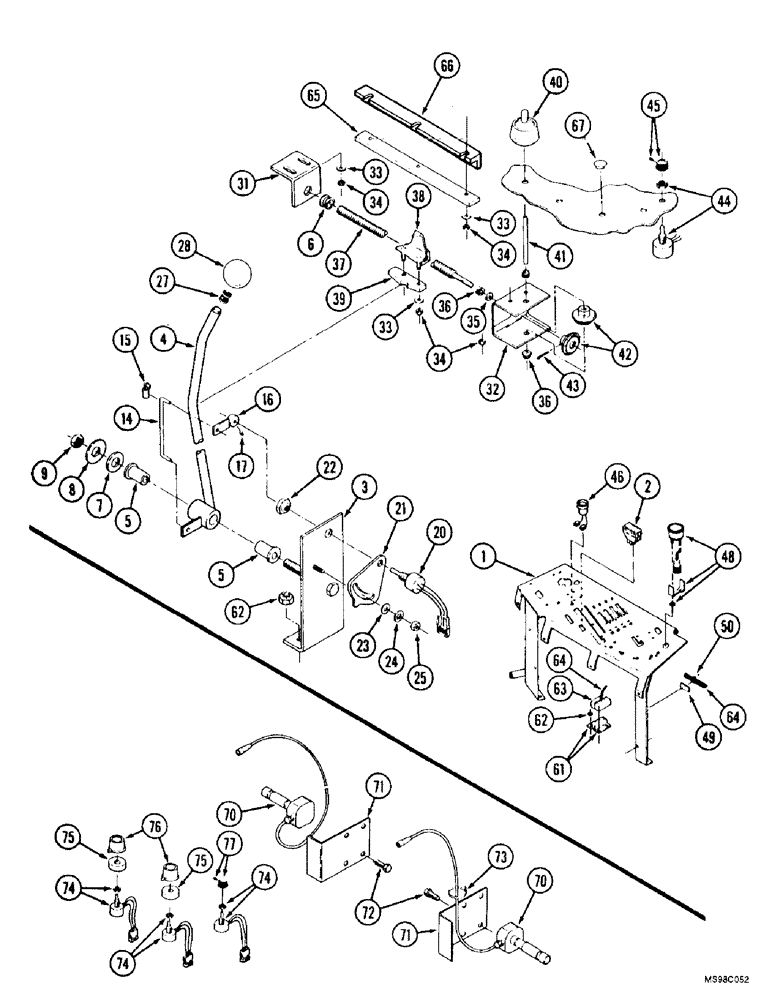

Запчасти Case IH 9350 (8-48) - THREE POINT HITCH CONTROLS, ELECTRONIC CONTROLLED, (CONT) (08) - HYDRAULICS

44

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical, Continued 10,000 Ohm, 8V

1шт.

45

A186263

KNOB

Lower Rate

1шт.

46

1964672C1

LIGHT

- indicator, amber, 14 volt

1шт.

48

60-7222T1

GAUGE ASSY.

GAUGE - display, seven segment, led, replaces 60-7015T1 gauge

1шт.

49

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

50

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

61

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

62

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

6шт.

63

60-6066T1

FOAM

SEAL - foam

2шт.

64

60-7000T2

HARNESS

- electronic depth control, Serial Range: -JEE0069665

1шт.

64

60-7273T1

HARNESS

- electronic depth control, Start Serial: JEE0069665

1шт.

65

60-3954T1

LARGE PLATE

STRIP - wear, lever

1шт.

66

60-4276T1

SUPPORT

BRACKET - stiffener, console

1шт.

67

60-4258T1

PLUG

- hole, flow control access

3шт.

35-1743T92

PACKAGE

KIT - Draft sensing, Includes: Ref. 70 - 77, no longer available, order component parts separately

1шт.

70

1964916C3

PIN

- lower link, draft sensing

2шт.

This pin subs to bushing p/n 1960223C1, quantity two, and pin p/n 305135A1.These parts are in kit 346350A1. See service bulletin ntr sb 001 99.

1шт.

71

70-5285T2

LARGE PLATE

PLATE - retainer, draft sensing pin

2шт.

72

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

8шт.

73

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

74

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical, Response Speed and Load 10,000 Ohm, 8V

3шт.

75

60-4919T1

WASHER

- foam

2шт.

76

60-3958T1

BUTTON

Knob, Control, Travel and Load

2шт.

77

A186263

KNOB

Response Speed

1шт.
