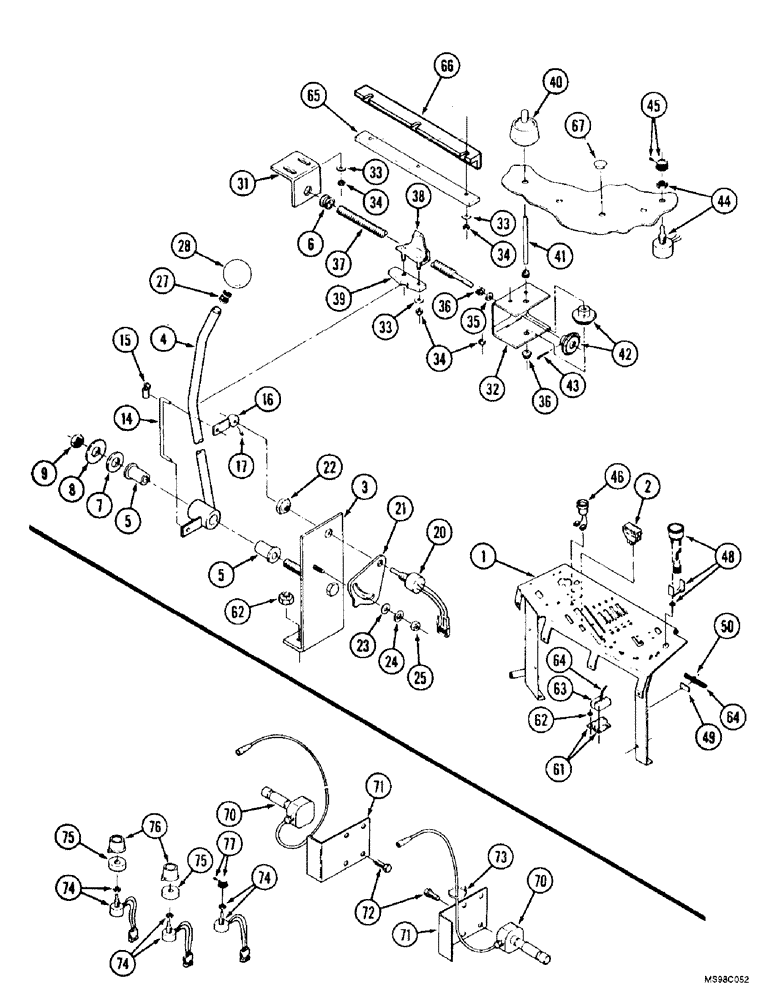

Запчасти Case IH 9350 (8-46) - THREE POINT HITCH CONTROLS, ELECTRONIC CONTROLLED (08) - HYDRAULICS

1

60-6979T2

PANEL

- control, see Figure 6-68 for mounting

1шт.

2

60-7018T1

IGNITION SWITCH

SWITCH - rocker, hitch actuating

1шт.

3

60-6152T1

SUPPORT

BRACKET - mounting, lever

1шт.

4

60-6794T1

LEVER

- control rod, actuating

1шт.

5

90-4367T1

BRONZE BUSHING

BUSHING - pivot

2шт.

6

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BUSHING - nylon, split, flanged

1шт.

7

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

8

19-5648

SPRING WASHER

SPRING - Belleville, 1/2 inch

1шт.

9

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

14

60-2802T1

STEM

Rod, Linkage, Potentiometer Actuating

1шт.

15

60-2404T1

RETAINER

- actuating rod

2шт.

16

60-6172T2

LEVER

ARM - actuating, potentiometer

1шт.

17

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, hex socket headless, No. 10 NC x 1/4 inch, cup point

1шт.

20

122756A3

POTENTIOMETER,1000 Ohm, 8V

Single, 1K, Raise and Lower 1000 Ohm, 8V

1шт.

21

60-7116T1

SUPPORT

Bracket, Adjusting, Potentiometer

1шт.

22

60-6155T1

NUT

Potentiometer Mounting

1шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

24

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

27

D38662

RING

- retainer, knob

1шт.

28

60-4273T1

BALL KNOB

KNOB - lever, use with Loctite 422

1шт.

31

60-6796T1

SUPPORT

BRACKET - mounting, rod

1шт.

32

60-4757T1

SUPPORT

BRACKET - mounting, gear and rod

1шт.

33

495-31022

WASHER,#10

8шт.

34

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

9шт.

35

19-5924

SPRING WASHER

- spring, 1/4 inch

1шт.

36

19-6129

NYLON BEARING

BUSHING - split flange, 11/32 ID x 7/16 inch OD

3шт.

37

60-6797T1

THREADED ROD

ROD - threaded, depth actuating

1шт.

38

60-3950T1

INDICATOR

- depth

1шт.

39

60-3953T1

LARGE PLATE

TAB - lever retainer

1шт.

40

60-3957T1

BUTTON

KNOB - depth actuating

1шт.

41

60-3949T1

ROD

- gear actuating

1шт.

42

60-4275T1

GEAR, BEVEL

GEAR - matched set, depth actuating

1шт.

43

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.
