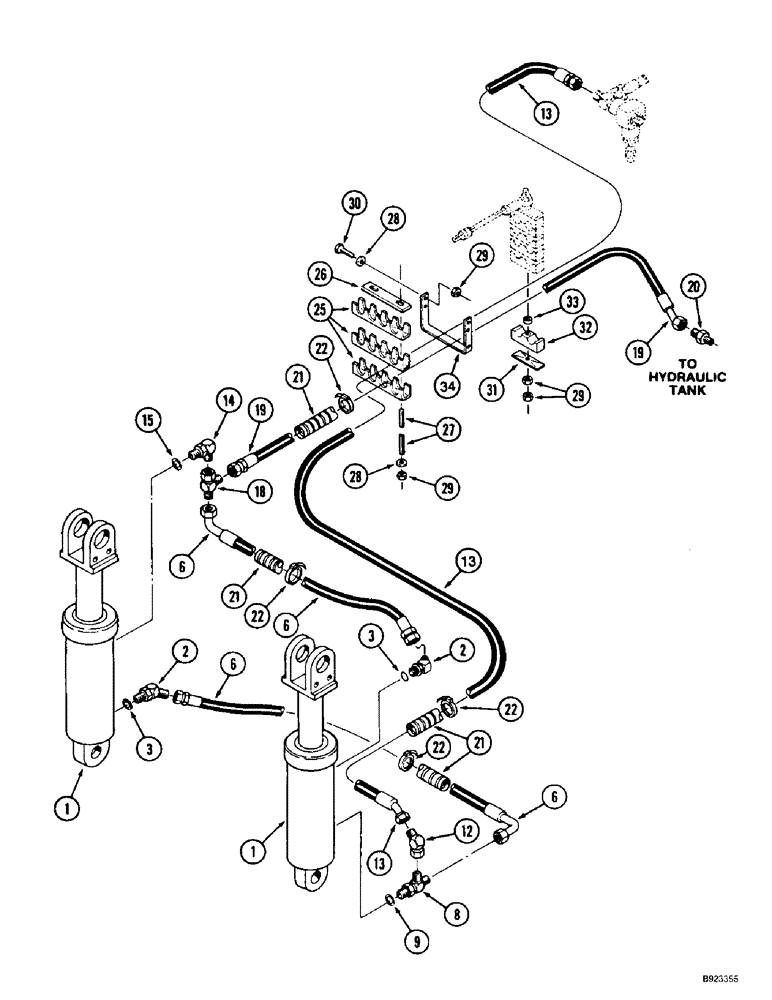

Запчасти Case IH 9350 (8-44) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDERS AND LINES, ELECTRONIC CONTROLLED (08) - HYDRAULICS

1

50-3499T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - three point hitch, lift, parts list Figure 8-50

2шт.

2

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

31-3041

HOSE

- 1702 mm (67 inch), Serial Range: long,-cylinder

2шт.

8

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

1шт.

13

31-2907

HOSE

- 3480 mm (137 inch) long, to relief valve

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

19

31-2910

HOSE

- 2870 mm (113 inch), Serial Range: long,-tank

1шт.

20

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

21

50-3087T1

CONDUIT

- hose protective, 1499 mm (59 inch) long, cut from S119717X bulk conduit, see below

4шт.

22

19-135

CABLE TIE

STRAP - tie, nylon

12шт.

25

50-3339T1

SHIN

CLAMP - hose

3шт.

26

50-3449T1

LARGE PLATE

PLATE - clamp mounting, replaces 50-3340T1 plate

1шт.

27

50-3343T1

STUD

- clamp

2шт.

28

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

6шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

31

50-2533T1

PLATE

- clamp support

1шт.

32

50-2551T1

CLAMP

- hose, split, includes both halves

1шт.

33

19-6249

SPACER

- clamp

1шт.

34

90-7352T1

SUPPORT

BRACKET - hose support

1шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.
