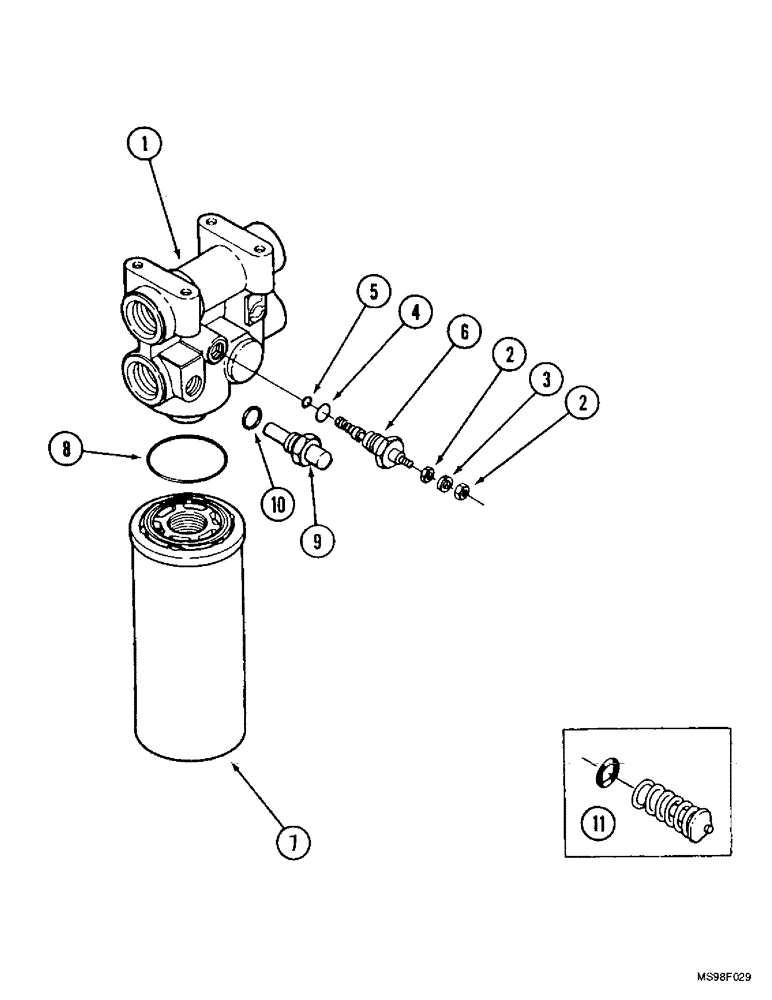

Запчасти Case IH 9350 (8-34) - TRANSMISSION AND HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS

50-3493T91

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 8

1шт.

50-3494T91

FILTER, ENGINE OIL

FILTER ASSEMBLY - oil, transmission, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - hydraulic oil filter, Includes: Ref. 2 - 6

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, electric, Includes: Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

8

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

- filter sealing

1шт.

9

60-6935T1

IGNITION SWITCH

SWITCH - temperature, Includes: Ref. 10

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

50-3590T91

KIT

- check valve, filter head

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
