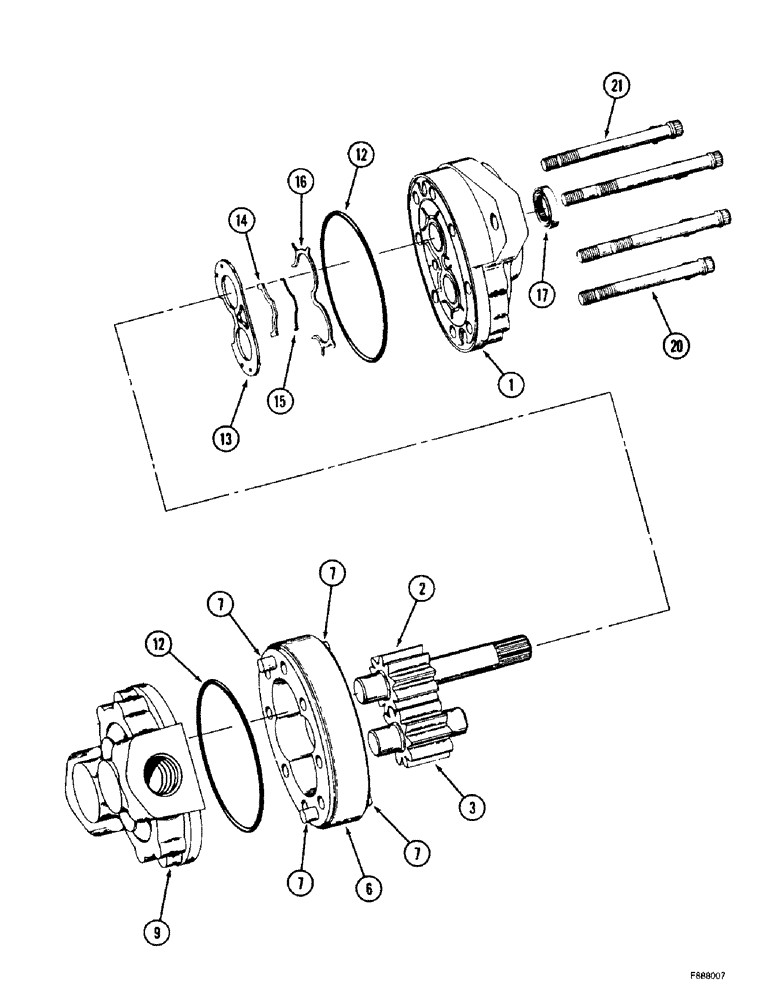

Запчасти Case IH 9350 (8-28) - HYDRAULIC GEAR PUMP ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-2662T92
PUMP, HYDRAULIC,55.22 CC
PUMP ASSEMBLY - gear, Includes: Ref. 1 - 21
1шт.
50-2662T92R
REMAN-HYD PUMP
9350 (6/95-8/00)
1шт.
50-2662T92C
CORE-HYDRAULIC PUMP
Return Number
1шт.
1
S301060
LARGE PLATE
COVER - shaft end, front
1шт.
2
NSS
NOT SOLD SEPARAT
GEAR - drive
1шт.
3
NSS
NOT SOLD SEPARAT
GEAR - idler
1шт.
50-2827T91
BODY
ASSEMBLY - pump, Includes: Ref. 6 and 7
1шт.
6
NSS
NOT SOLD SEPARAT
BODY - pump
1шт.
7
NSS
NOT SOLD SEPARAT
PIN - dowel
4шт.
9
50-2826T1
PLATE
COVER - rear, with bearings
1шт.
50-2834T1
SEAL KIT
KIT - seal, Includes: Ref. 12 - 17
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - seal, body
2шт.
13
NSS
NOT SOLD SEPARAT
PLATE - wear
1шт.
14
NSS
NOT SOLD SEPARAT
SEAL - bearing
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING - molded
1шт.
16
NSS
NOT SOLD SEPARAT
GASKET - backup
1шт.
17
A25139
SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk
- input
1шт.
20
166-59
12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8
BOLT - 12 point flange, 3/8 NC x 3-3/4 inch, grade 8
4шт.
21
19-1626
BOLT,Flg, 3/8" - 16 x 4", Gr 8
- 12 point flange, 3/8 NC x 4 inch, grade 8
4шт.
Выбрано товаров: 19
