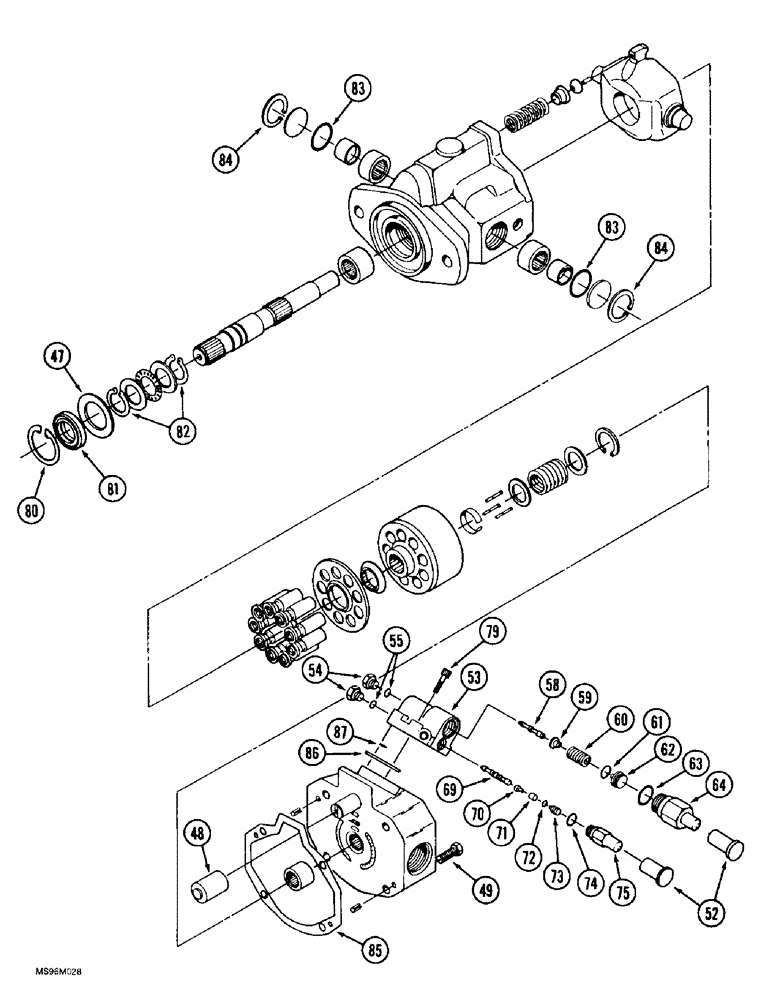

Запчасти Case IH 9350 (8-26) - HYDRAULIC PISTON PUMP ASSEMBLY, (CONT) (08) - HYDRAULICS

50-3547T92

PUMP,45.39 CC

ASSEMBLY - piston, continued, Includes: Ref. 47 - 86 and 1 - 42 on Fig.8-24

1шт.

392985A1 is the housing sub assembly of 50-3547T92.

1шт.

50-3547T92R

REMAN-HYD PUMP

9350

1шт.

50-3547T92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

47

D66330

WASHER

- flat, special, 1-19/32 x 2 x 5/64 inch

1шт.

48

50-2802T1

PISTON

- control, cam plate

1шт.

49

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

50-3608T91

EQUALIZER

COMPENSATOR ASSEMBLY - pump, replaces 50-2810T91 compensator, Includes: Ref. 52 - 75

1шт.

52

50-3601T1

COVER

- adjusting screw

2шт.

53

NSS

NOT SOLD SEPARAT

BODY - compensator

1шт.

54

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes Ref. 55 Hex Hd, 3/8"-24 ORB

2шт.

55

1971623C1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

- 19/64 ID x 1/16 inch wide

2шт.

Part of seal kit P/N 50-2825T91

1шт.

58

NSS

NOT SOLD SEPARAT

SPOOL - pressure

1шт.

59

50-2814T1

SPRING SEAT

CAP - spring pivot

1шт.

60

A45144

SPRING

- spool

1шт.

61

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

Part of seal kit P/N 50-2825T91

1шт.

62

50-2817T1

PISTON

FOLLOWER - pressure spring

1шт.

63

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

64

50-2819T1

CAP

- pressure adjuster

1шт.

69

NSS

NOT SOLD SEPARAT

SPOOL - flow

1шт.

70

50-2820T1

SPRING SEAT

PIVOT - spring

1шт.

71

50-2821T1

SPRING

- spool

1шт.

72

50-2822T1

O-RING

- seal

1шт.

Part of seal kit P/N 50-2825T91

1шт.

73

50-2823T1

PISTON

FOLLOWER - flow spring

1шт.

75

50-2824T1

CAP

- flow adjuster

1шт.

79

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - hex socket, 1/4 NC x 1-1/4 inch

4шт.

80

103-21200

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

1шт.

Part of seal kit P/N 50-2825T91

1шт.

81

D73667

SEAL,28.57mm ID x 50.98mm OD x 6.35mm Thk

- shaft, drive

1шт.

Part of seal kit P/N 50-2825T91

1шт.

82

103-11112

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

2шт.

Part of seal kit P/N 50-2825T91

1шт.

83

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

2шт.

Part of seal kit P/N 50-2825T91

1шт.

84

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

Part of seal kit P/N 50-2825T91

1шт.

85

N7804

GASKET

- housing

1шт.

Part of seal kit P/N 50-2825T91

1шт.

86

1266917C1

GASKET

- compensator

1шт.

Part of seal kit P/N 50-2825T91

1шт.

87

50-2809T1

O-RING

- compensator

1шт.

Part of seal kit P/N 50-2825T91

1шт.

50-2825T91

SEAL KIT

KIT - seal, Includes: Refs. 55, 61, 72, 74 and 80 - 87.

1шт.

74

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Part of seal kit P/N 50-2825T91

1шт.
