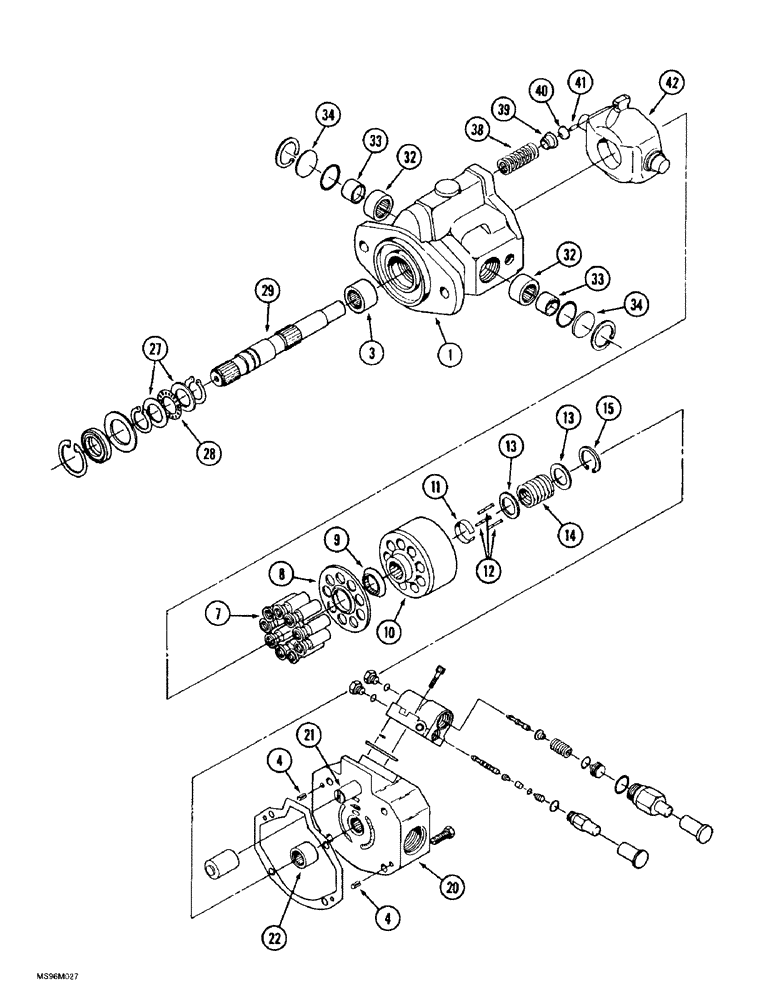

Запчасти Case IH 9350 (8-24) - HYDRAULIC PISTON PUMP ASSEMBLY (08) - HYDRAULICS

50-3547T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - piston, Includes: Ref. 1 - 42 and 47 - 86 on Fig. 8-26, Serial Range: -JEE0068646

1шт.

Piston pump assembly 50-2791T91, prior to P.I.N. JEE0068646, had a 9/16-18 inch threaded tank port. Piston pump assembly 50-2791T92, P.I.N. JEE0068646 and after, has a 7/8-14 inch threaded tank port. If you currently have a 9/16-18 inch port, you must also order 218-5060 fitting. See figure 8-2 for fitting.

1шт.

50-2791T91

HOUSING ASSY.

HOUSING ASSEMBLY - pump, Includes: Ref. 1, 3 and 4, Serial Range: -JEE0068646

1шт.

50-3547T92

PUMP,45.39 CC

ASSEMBLY - piston, Includes: Ref. 1 - 42 and 47 - 86 on Fig. 8-26, Start Serial: JEE0068646

1шт.

Piston pump assembly 50-2791T91, prior to P.I.N. JEE0068646, had a 9/16-18 inch threaded tank port. Piston pump assembly 50-2791T92, P.I.N. JEE0068646 and after, has a 7/8-14 inch threaded tank port. If you currently have a 9/16-18 inch port, you must also order 218-5060 fitting. See figure 8-2 for fitting.

1шт.

P/N 392985A1 is the housing sub assembly of 50-3547T92.

1шт.

50-3547T92R

REMAN-HYD PUMP

9350

1шт.

50-3547T92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

50-2791T92

HOUSING

ASSEMBLY - pump, Includes: Ref. 1, 3 and 4, Start Serial: JEE0068646

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

3

F60368

NEEDLE BEARING

BEARING - needle

1шт.

4

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, , Replaces 138-127 pin 1/4" x 1/2", Slotted

2шт.

50-2801T1

CYLINDER

KIT - rotating, piston, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

8

NSS

NOT SOLD SEPARAT

PLATE - shoe

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - spherical

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - pump

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - block

3шт.

13

NSS

NOT SOLD SEPARAT

WASHER - spring

2шт.

14

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

15

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

50-2804T91

PLATE

ASSEMBLY - back, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - back

1шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - pin

1шт.

22

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - needle

1шт.

27

50-2788T1

RING RACE

WASHER - thrust, bearing

2шт.

28

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust

1шт.

29

50-3275T1

SHAFT

- drive, pump

1шт.

32

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING - needle

2шт.

33

D66352

BUSHING

RACE - bearing

2шт.

34

D66359

COVER

- trunnion

2шт.

38

50-2798T1

SPRING

- cam plate

1шт.

39

50-2799T1

COLLAR

- spring

1шт.

40

50-1793T1

BUTTON

- pivot

1шт.

41

38-11208

LOCK PIN,3/16" x 1/2", Slotted

Pin, 3/16" x 1/2", Slotted

1шт.

42

1266919C1

PLATE

CAM - piston

1шт.
