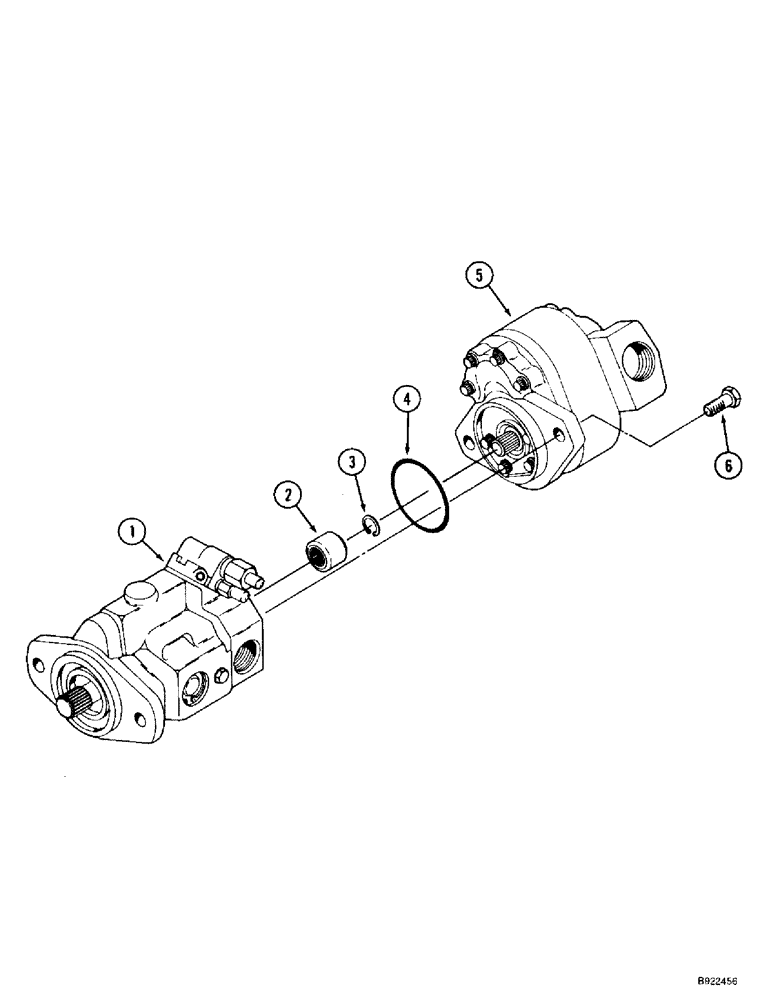

Запчасти Case IH 9350 (8-22) - HYDRAULIC TANDEM PUMP ASSEMBLY (08) - HYDRAULICS

50-3548T93

PUMP

ASSEMBLY - tandem, Includes: Ref. 1 - 5

1шт.

50-3548T93R

REMAN-HYD PUMP

9350 Case IH 4WD Tractor, Assembly, Tandem (6/95-8/00)

1шт.

50-3548T93C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

50-3547T92

PUMP,45.39 CC

ASSEMBLY - piston, parts list Figures 8-24 and 8-26

1шт.

392985A1 is the housing sub assembly of 50-3547T92.

1шт.

50-3547T92R

REMAN-HYD PUMP

9350

1шт.

50-3547T92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

50-2663T1

COUPLING

- drive, pump

1шт.

3

D66349

RING, SNAP

RING - retaining

1шт.

4

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

- seal

1шт.

5

50-2662T92

PUMP, HYDRAULIC,55.22 CC

PUMP ASSEMBLY - gear, parts list Figure 8-28

1шт.

50-2662T92R

REMAN-HYD PUMP

9350 (6/95-8/00)

1шт.

50-2662T92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
