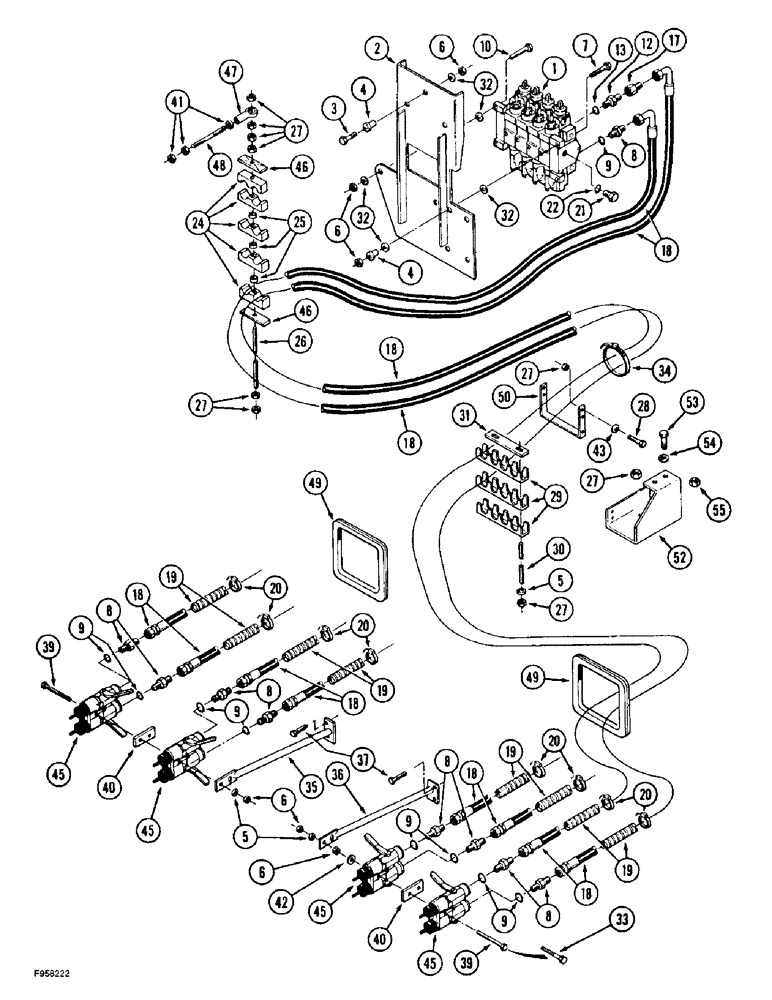

Запчасти Case IH 9350 (8-18) - HYDRAULIC COUPLERS AND LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, for correct assembly and component parts see parts list Figures 8-60 and 8-62 for correct valve

1шт.

2

60-4358T2

SUPPORT

MOUNT - control valve

1шт.

3

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

3шт.

4

60-6650T1

RUBBER BUSHING

CUSHION - rubber

6шт.

5

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

10шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 9 3/4"-16, 37º x 7/8"-14, O-Ring

12шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

12шт.

10

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 8

3шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 13

4шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

17

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducing, 7/8-14 str thread x 3/4-16 inch flare, replaces 386624R1 adapter

4шт.

18

31-2909

HOSE,12.7mm ID x 135mm L

- 1219 mm (48 inch), Serial Range: long,-couplers

8шт.

Oal is 135" per print

1шт.

19

50-3087T1

CONDUIT

- hose protective, 1499 mm (59 inch) long, cut from S119717X bulk conduit, see below

8шт.

20

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

24шт.

21

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

50-2551T1

CLAMP

- hose, split, includes both halves

5шт.

25

19-6249

SPACER

- clamp

3шт.

26

50-2713T1

STUD

- clamp, 5/16 NC x 8-1/2 inch

1шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

14шт.

28

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

29

50-3339T1

SHIN

CLAMP - hose

3шт.

30

50-3343T1

STUD

- clamp

2шт.

31

50-3340T1

LARGE PLATE

PLATE - clamp mounting

1шт.

32

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

9шт.

33

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch, grade 8, used on single remote coupler only

2шт.

34

19-135

CABLE TIE

STRAP - tie, nylon

1шт.

35

50-3318T1

SUPPORT

MOUNT - coupler, left, with PTO system

1шт.

35

50-3585T1

SUPPORT

MOUNT - coupler, left, without PTO system

1шт.

36

50-3319T1

SUPPORT

MOUNT - coupler, right, with PTO system

1шт.

36

50-3586T1

SUPPORT

MOUNT - coupler, right, without PTO system

1шт.

37

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch, with PTO system

4шт.

37

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch, without PTO system

4шт.

39

426-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 8

- hex, 3/8 NC x 5-1/2 inch, grade 8, used on double remote coupler only

4шт.

40

70-2806T1

SPACER

- coupler

4шт.

41

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

3шт.

42

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

43

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

45

50-3349T93

CLUTCH ASSEMBLY

COUPLER ASSEMBLY - quick disconnect, parts list Figure 8-80

1шт.

46

50-2533T1

PLATE

- clamp support

2шт.

47

19-6233

BALL JOINT

JOINT - ball

1шт.

48

19-6234

STUD

- 3/8 NF x 3-1/2 inch

1шт.

49

50-3342T1

GROMMET

TRIM - edge, 573 mm (22-1/2 inch) long, cut from 31-1785 bulk trim, see below

2шт.

50

90-7352T1

SUPPORT

BRACKET - hose support

1шт.

52

90-7605T1

SUPPORT

BRACKET - hanger

1шт.

53

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex, 5/8 NC x 3 inch, grade 8

2шт.

54

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

55

425-1010

NUT,5/8"-11, G5

2шт.

31-1785

GROMMET

- edge, bulk, 3048 mm (120 inch) long

1шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.
